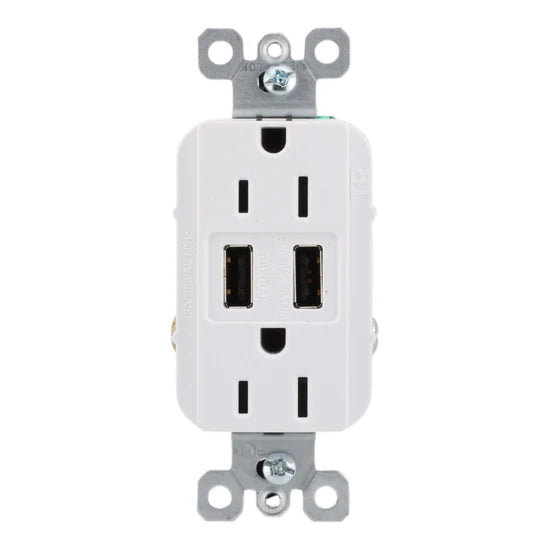

The Legrand radiant TM826USBW is a 15 Amp tamper-resistant outlet featuring dual USB-A charging ports with a combined 3.1A (15W) output, ideal for modern residential and commercial applications. Its patented invisible shutter system enhances safety by preventing accidental contact, while the scalloped, screwless wallplate design provides a clean, contemporary appearance. Installation is simple, taking approximately 10 minutes, and the outlet is compatible with standard box mounting and side-wire terminals. UL, cULus, and CSA listed, this outlet delivers reliable performance and convenience for USB-powered devices.
Voltage and Rating
- Amperage Rating: 15A
- USB Output: 3.1A combined, 15W
- Poles: Double Pole
- Voltage Rating: 125V AC (standard for residential/commercial receptacles)
Key Specifications
- Outlet Type: Tamper-Resistant USB-Charging Receptacle
- Number of Receptacles: 2
- Number of USB Ports: 2 Type-A
- Wire Size: 14–10 AWG
- Mounting Type: Box
- Indoor/Outdoor: Indoor
- Special Features:
- Tamper-resistant with patented invisible shutter system
- Scalloped cover design

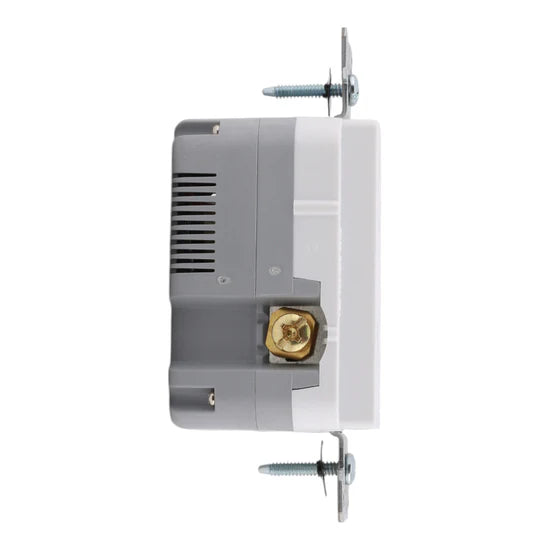

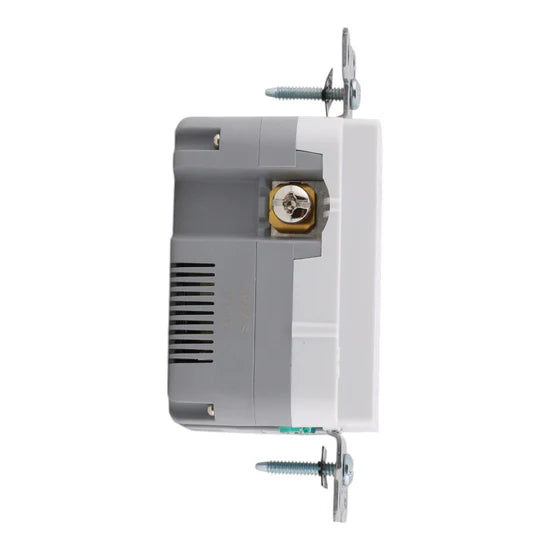

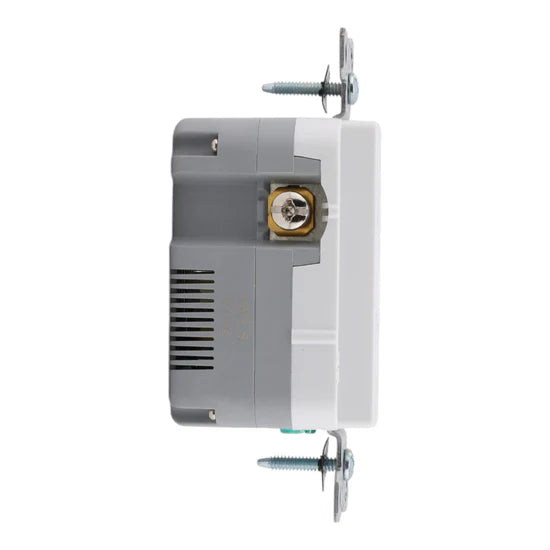

- Posted side-wire terminal screws
- Easy 10-minute installation
- Screwless wallplate compatible
Technical Specifications
- Dielectric Strength: Withstands 1500V minimum
- Temperature Rating: 14°–140°F
- Environmental Conditions: 95% relative humidity (non-condensing)
- Application: Residential, Commercial
- Certifications: cULus Listed, CSA Listed, RoHS Compliant
- Standards: UL94 V2 (device cover), 5V (device body and frame)
- Warranty: 1-Year Limited
Product Data
-
- Manufacturer: Legrand
- Brand: Pass & Seymour radiant Collection
- Model Number: TM826USBW
- UPC: 785007127652
- Dimensions: Height: 4.18 in; Width: 1.69 in; Depth: 1.35 in
- Color/Finish: White, Matte
- Country of Origin: Vietnam
