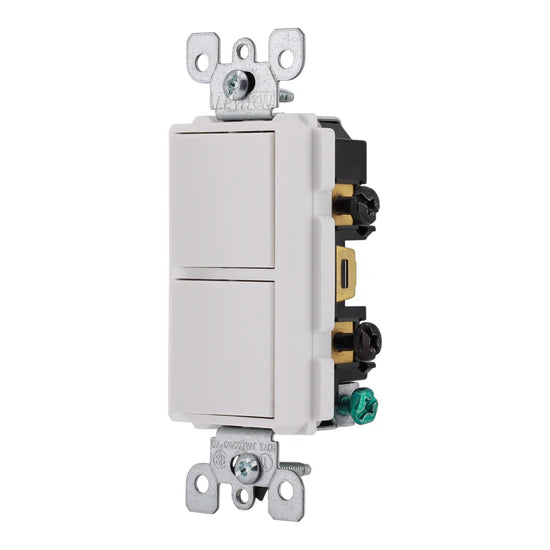

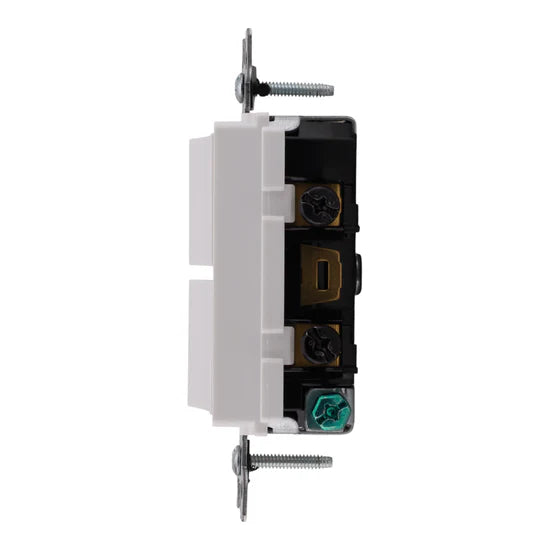

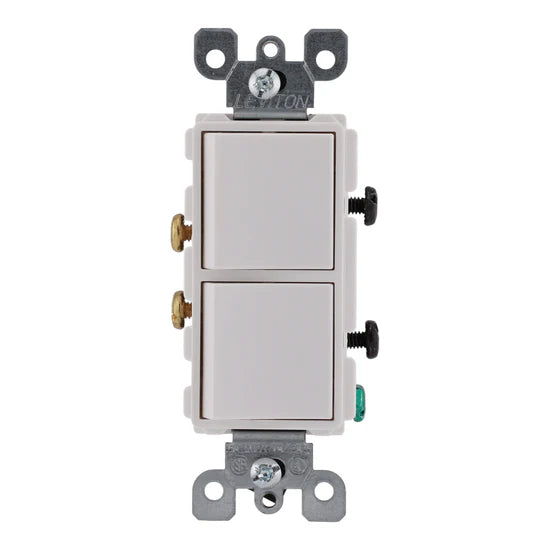

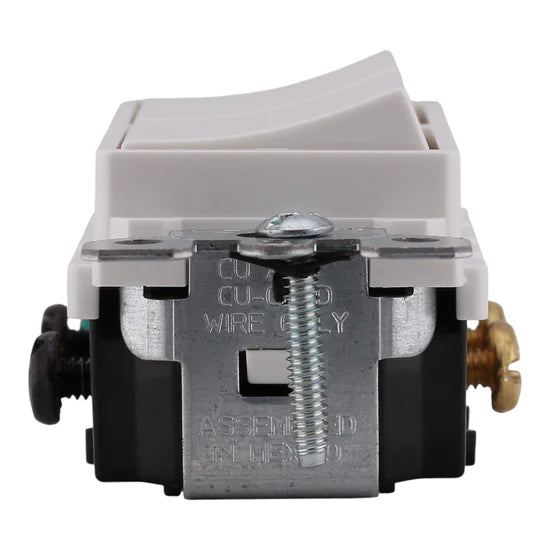

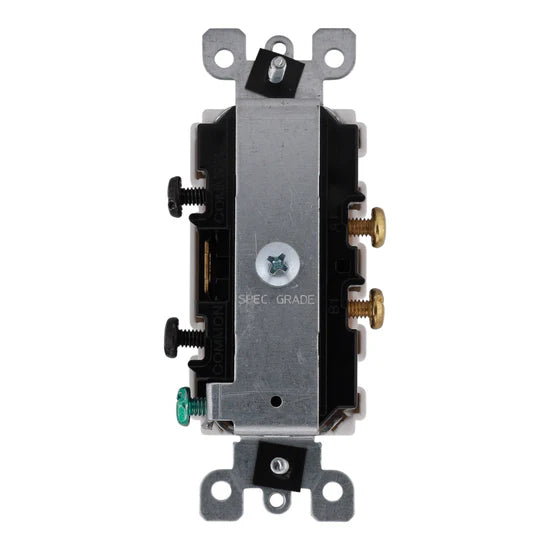

Leviton 5634-W 15A Single-Pole / Single-Pole Combination Switch – Wallbox / Surface – 120/277V

This Leviton 5634-W 15 Amp combination switch provides dual single-pole control in a single-gang wallbox, suitable for residential and commercial applications. With durable thermoplastic construction, grounding, and side wiring, it delivers reliable, space-saving operation for lighting and appliance circuits at 120/277 V.

• Manufacturer: Leviton Manufacturing Co., Inc.
  Brand: Leviton
  Product Range: Decora (residential and commercial wiring devices)
  UPC: 078477516386
  Model Number: 5634-W

Electrical Ratings

• Amperage: 15 Amps
• Voltage Rating: 120/277 V AC
• Horsepower Rating: 1/2 HP at 120V; 2 HP at 240–277V
• Switch Type: Single-Pole / Single-Pole

Design & Construction

• Product Type: Combination Switch (Two Single-Pole Switches)
• Mounting Mode: Wallbox / Surface
• Connections Terminals: Side wired
• Wire Size: #14–12 AWG Cu (typical for 15 A switches)
• Grounding: Yes
• Materials: Thermoplastic actuator and body; Steel strap

Physical Specifications

• Height: 4.2 in
• Width: 1.31 in
• Depth: 1.6 in
• Weight: 0.26 lbs

Certifications

• UL Listed
• CSA Certified
