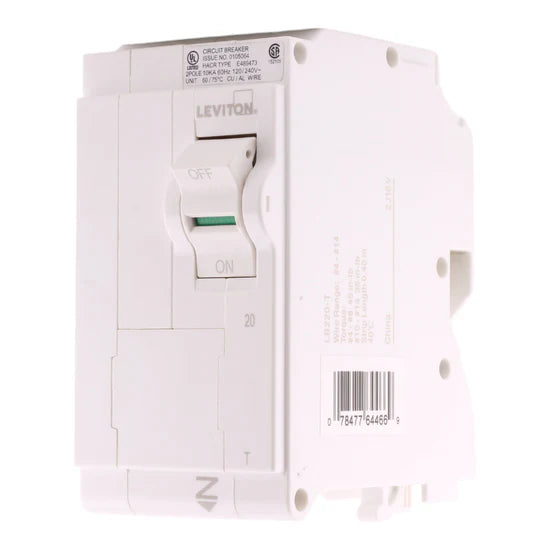

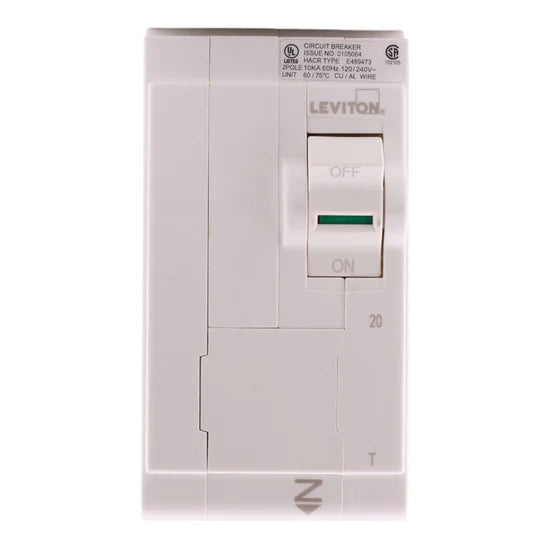

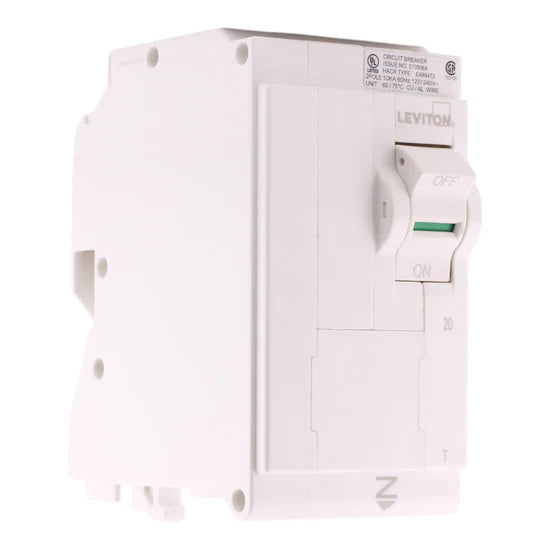

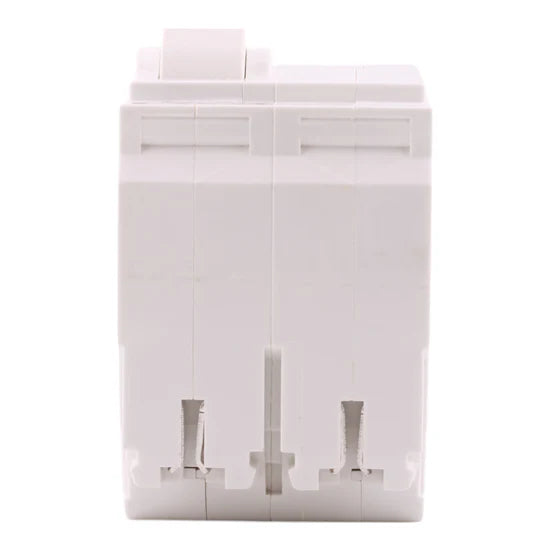

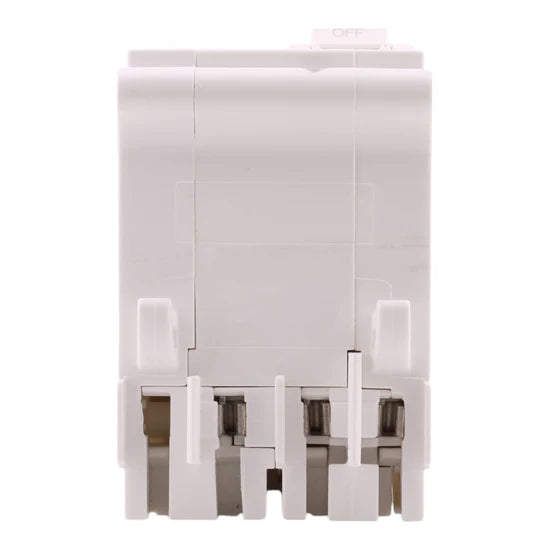

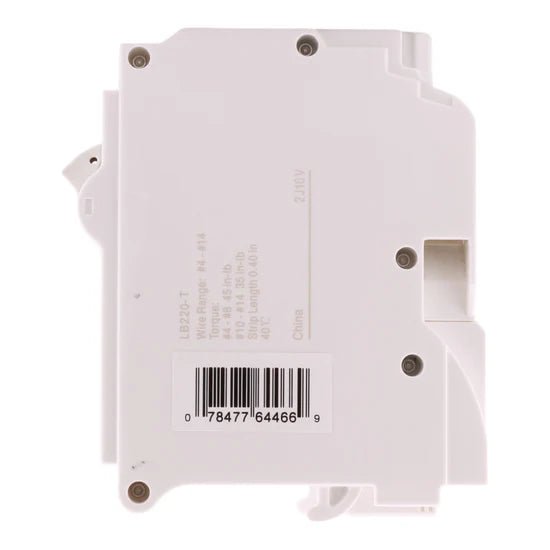

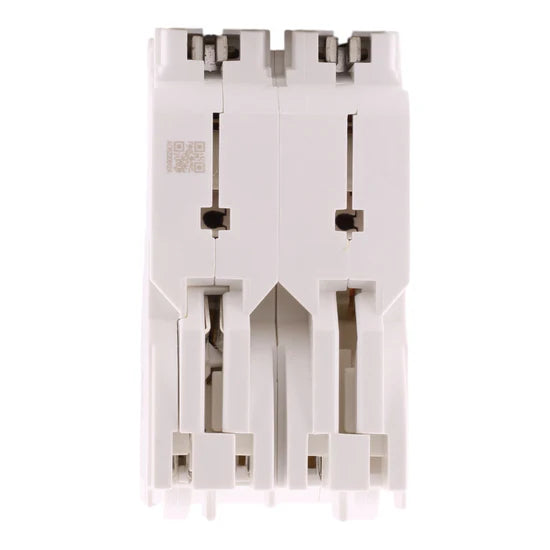

Leviton LB220-T 20A 2-Pole Thermal Magnetic Circuit Breaker – Plug-On – 120/240V

The Leviton LB220-T plug-on neutral circuit breaker provides dependable 20A, 2-pole thermal magnetic protection for 120/240V circuits. Designed for Leviton load centers, it features a plug-on neutral connection and intuitive rocker-style handle indicators for easy installation and enhanced safety in residential applications.

Voltage and Rating

• Amperage: 20 Amps
• Poles: 2-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard Thermal Magnetic
• Mounting Type: Plug-On
• Product Range: Leviton Load Centers
• Application: Residential branch circuit protection
• Connection Type: Plug-on neutral
• Compatible Panels: Leviton load centers

Technical Specifications

• Wire Size Range: (1) #14–4 AWG Cu/Al
• Terminal Tightening Torque: 35.4 lb-in
• Certifications: UL Listed, RoHS Compliant

Product Data

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Model Number: LB220-T
• UPC: 078477644669

Dimensions

• • Height: 3.11 in
  • Width: 2.0 in
  • Depth: 2.91 in
  • Weight: 0.639 lbs
