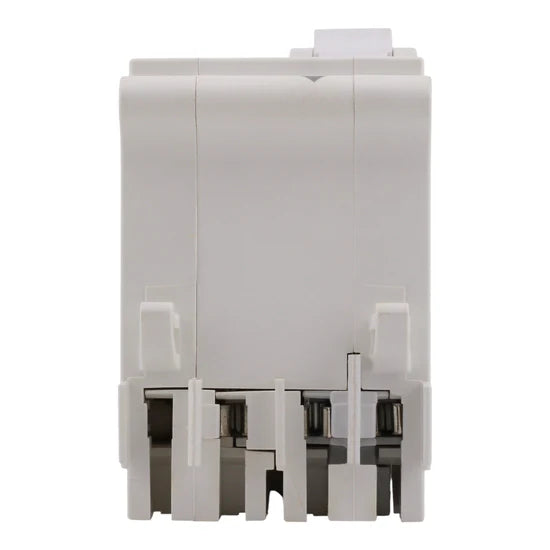

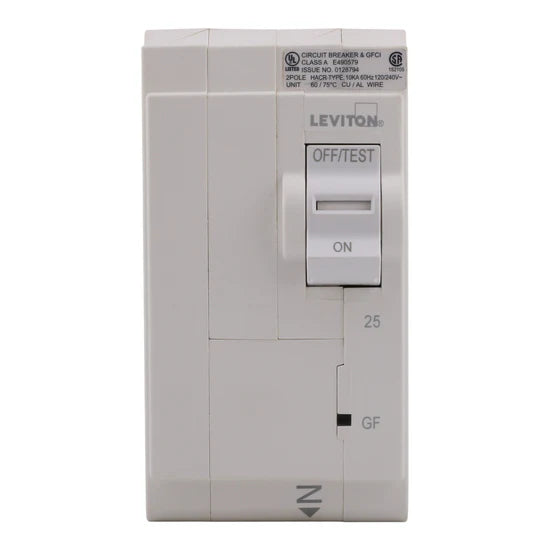

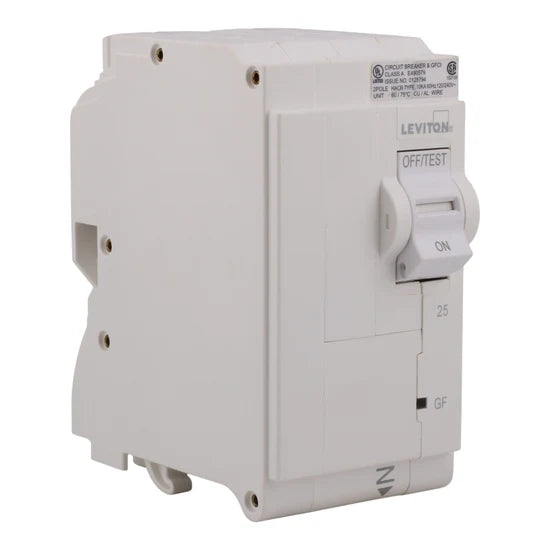

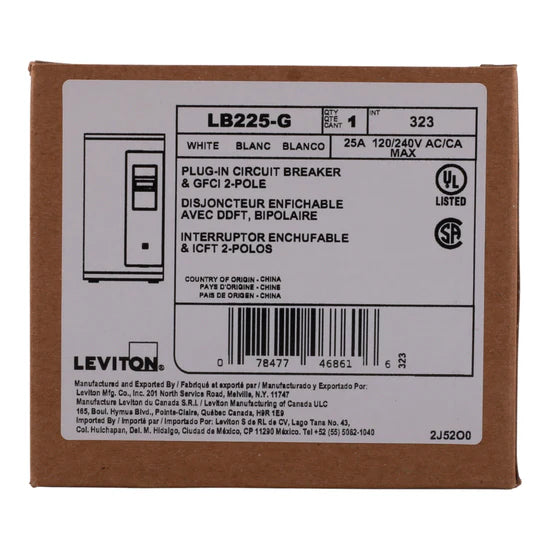

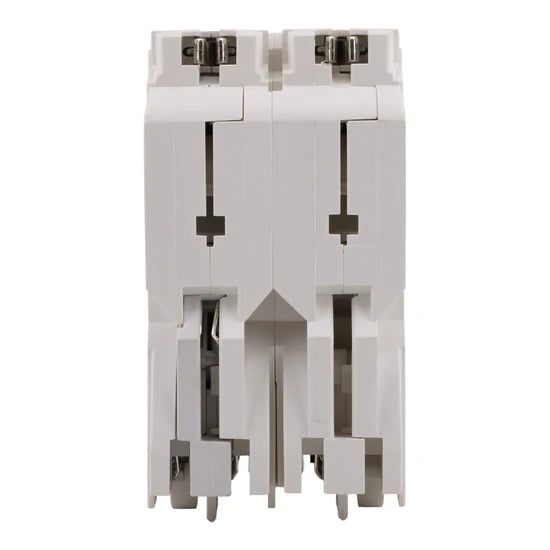

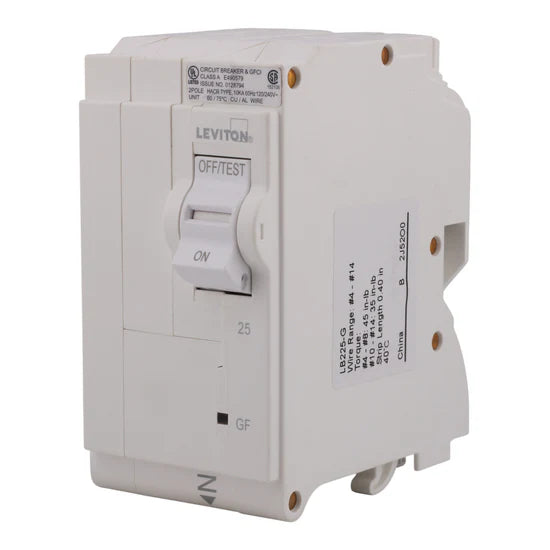

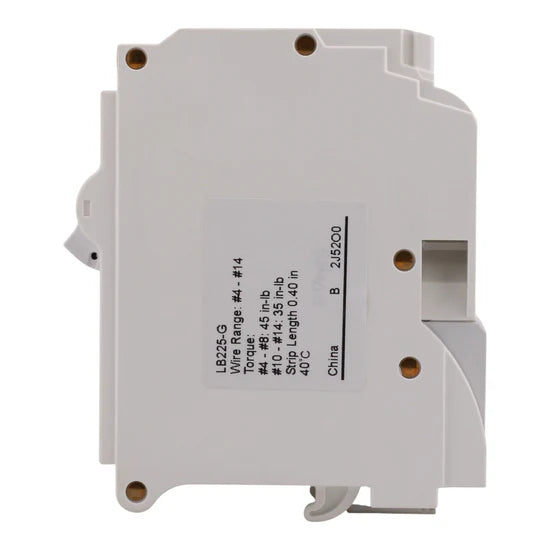

Leviton LB225-G: 25A 2P 120/240V GFCI Plug-On Neutral Circuit Breaker

The Leviton LB225-G is a 25 Amp, 2-Pole Ground-Fault Circuit Interrupter (GFCI) breaker designed for reliable residential protection. With 6mA ground fault detection and hydraulic magnetic trip technology, it provides safety against electrical faults while maintaining consistent performance in Leviton loadcenters.

Electrical Ratings

• Amperage: 25 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 6 mA ground fault protection

Design & Construction

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI) with Hydraulic Magnetic Trip
• Mounting Mode: Plug-in
• Connections Terminals: Plug-on neutral
• Wire Size Compatibility: (1) #14–4 AWG Cu/Al
• Tightening Torque: 39.8 lb-in

Physical Specifications

• Height: 3.9 inches
• Width: 2.0 inches
• Depth: 3.1 inches
• Weight: 0.794 lbs

Certifications

• UL Listed

Product Information

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Product Range: Leviton Load Center (for Leviton loadcenters and equipment)
• Model Number: LB225-G
• UPC: 078477468616

The Leviton LB225-G plug-on neutral circuit breaker provides reliable 25A, 2-pole GFCI protection for 120/240V circuits. With 6mA ground fault detection, hydraulic magnetic trip technology, and plug-on neutral design, it ensures enhanced safety, easy installation, and consistent performance for residential applications.
