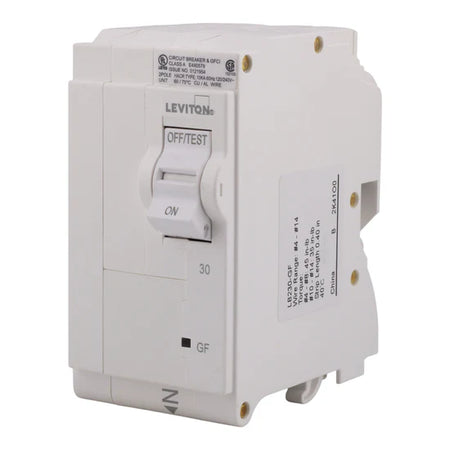

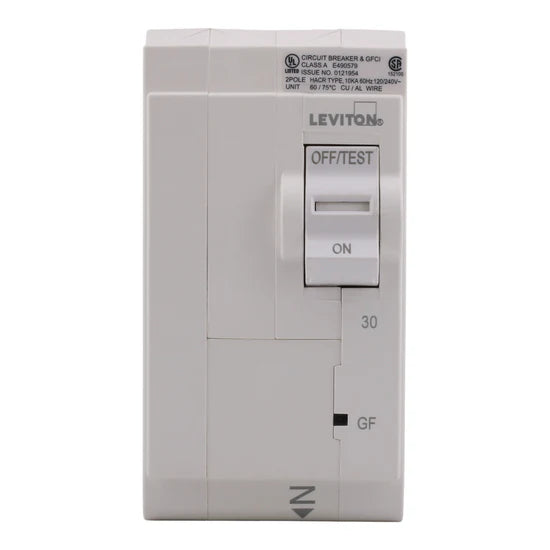

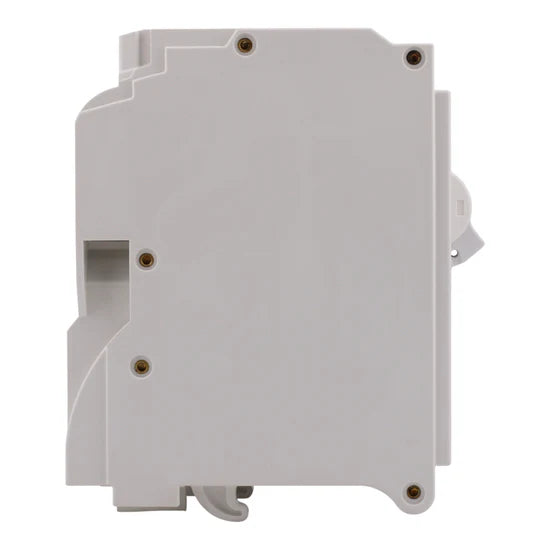

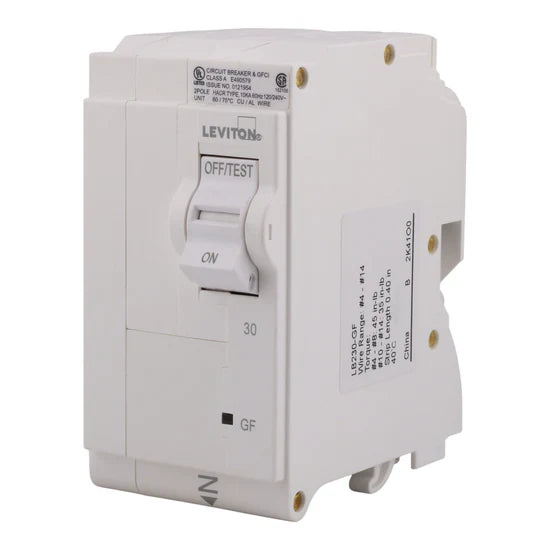

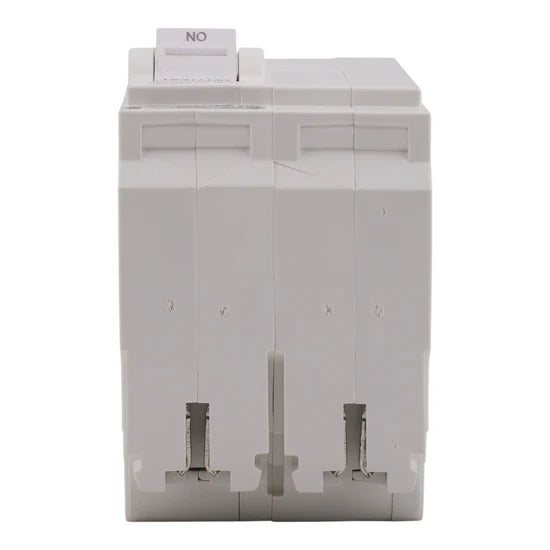

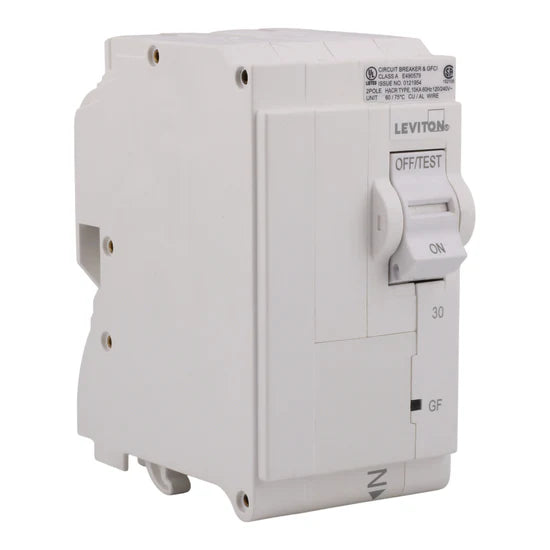

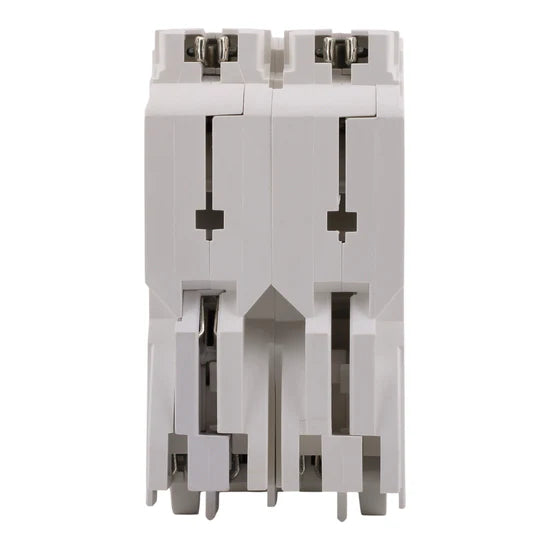

Leviton LB230-GF: 30A 2P 120/240V GFCI Plug-On Neutral Circuit Breaker

The Leviton LB230-GF is a 30 Amp, 2-Pole Ground-Fault Circuit Interrupter (GFCI) breaker designed for safe and reliable residential protection. With 6mA ground fault detection, it provides enhanced safety and consistent performance for Leviton loadcenters.

Electrical Ratings

• Amperage: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Number of Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 6 mA ground fault protection

Design & Construction

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Mounting Mode: Plug-in
• Connections Terminals: Plug-on neutral

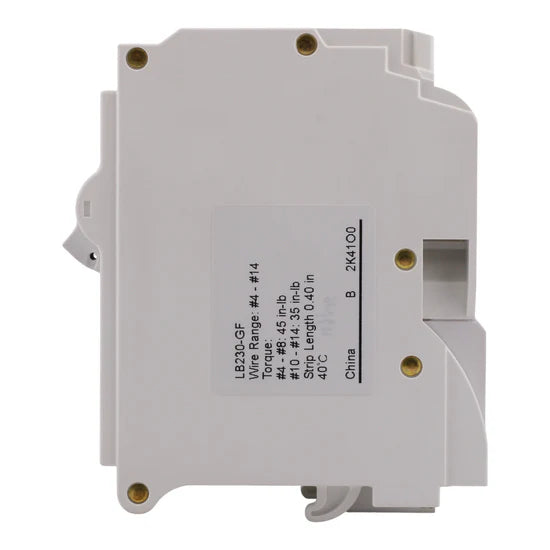

• Wire Size Compatibility: (1) #14–8 AWG, (2) #14–10 AWG Cu/Al
• Tightening Torque: 35.4 lb-in

Physical Specifications

• Height: 3.9 inches
• Width: 2.0 inches
• Depth: 3.1 inches
• Weight: 0.992 lbs

Certifications

• UL Listed
• HACR Rated

Product Information

• Manufacturer: Leviton
• Brand: Leviton
• Product Range: Leviton Loadcenters (for Leviton loadcenters and equipment)
• Model Number: LB230-GF
• UPC: 078477814673

The Leviton LB230-GF plug-on neutral circuit breaker provides reliable 30A, 2-pole GFCI protection for 120/240V circuits. With 6mA ground fault detection and plug-on neutral design, it ensures enhanced safety, easy installation, and consistent performance for residential applications.
