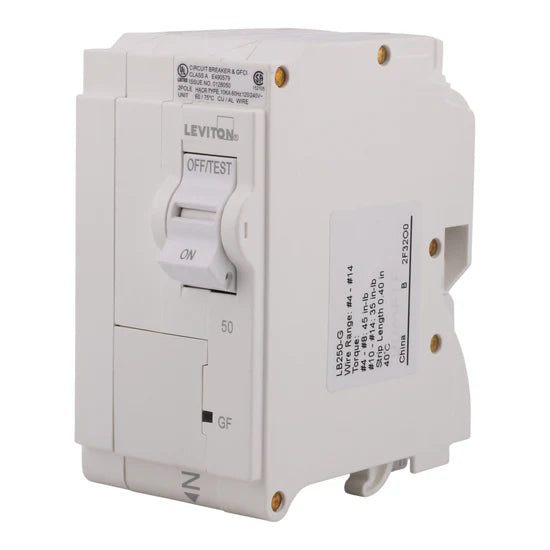

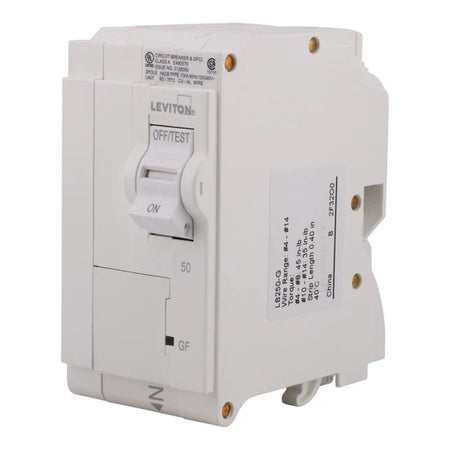

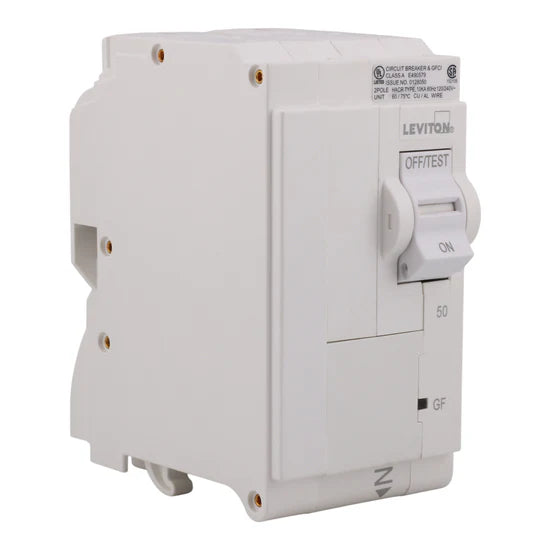

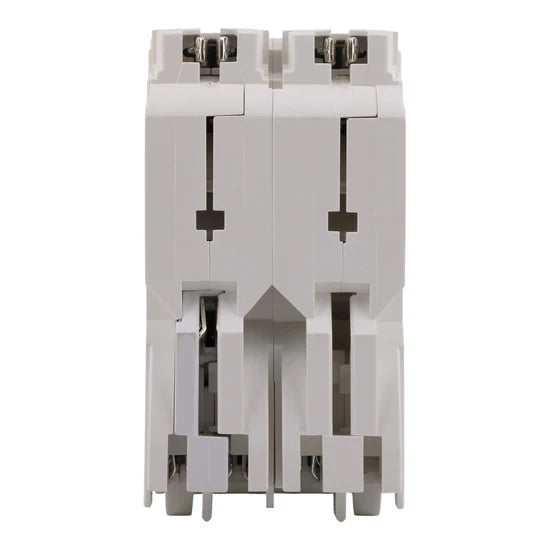

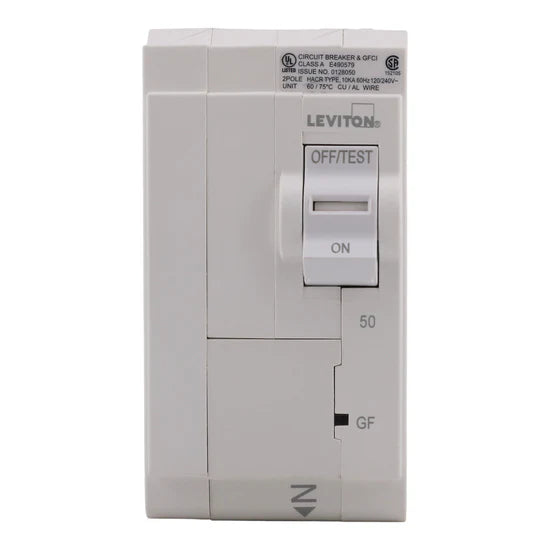

Leviton LB250-G: 50A 2P 120/208-240V GFCI Plug-On Neutral Circuit Breaker

The Leviton LB250-G is a 50 Amp, 2-Pole GFCI breaker designed for safe and reliable residential and light commercial circuit protection. With plug-on neutral installation and 6mA ground fault detection, it ensures enhanced safety and consistent performance.

Electrical Ratings

• Amperage: 50 Amps
• Voltage Rating: 120/208–240V AC
• Number of Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 6 mA ground fault protection

Design & Construction

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI) with Hydraulic Magnetic Trip
• Mounting Mode: Plug-in
• Connections Terminals: Plug-on neutral
• Wire Size Compatibility: (1) #14–4 AWG Cu/Al
• Tightening Torque: 39.8 lb-in

Physical Specifications

• Height: 3.9 inches
• Width: 2.0 inches
• Depth: 3.1 inches
• Weight: 0.881 lbs
• Operating Temperature: -40°F to 185°F

Certifications

• UL Listed

Product Information

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Product Range: Leviton Load Centers (for Leviton loadcenters and equipment)
• Model Number: LB250-G

• UPC: 078477224946
