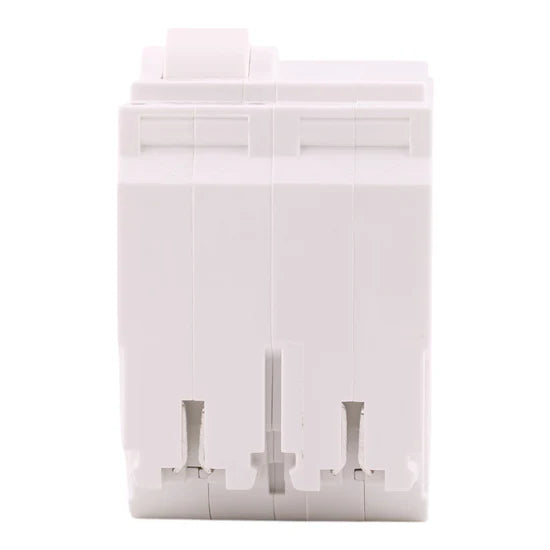

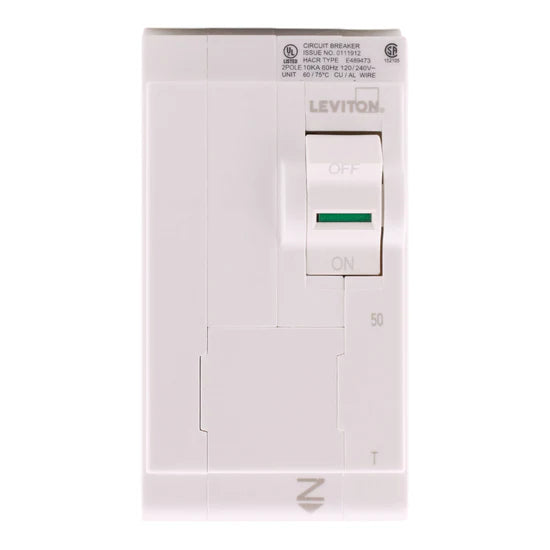

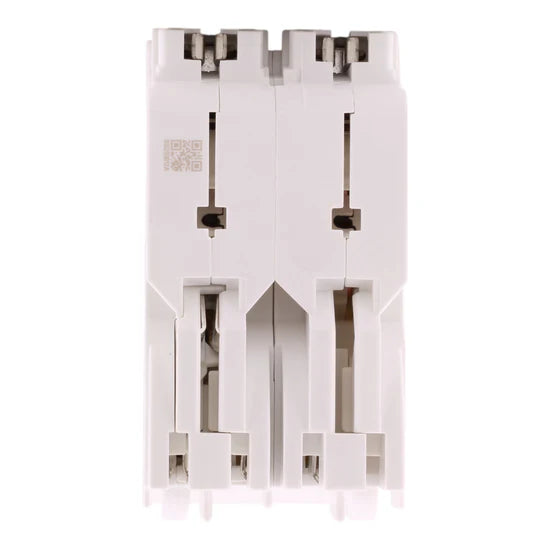

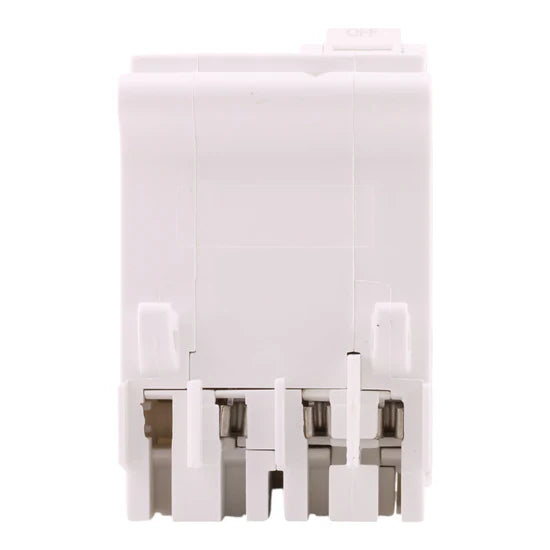

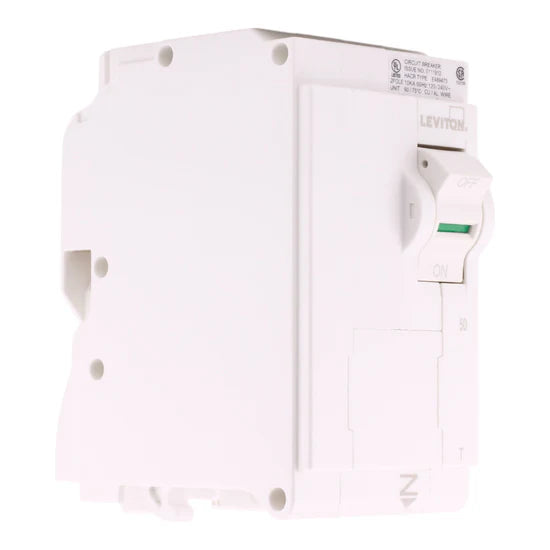

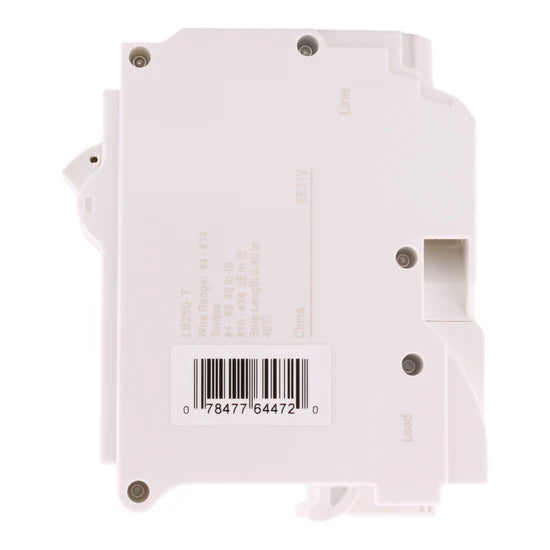

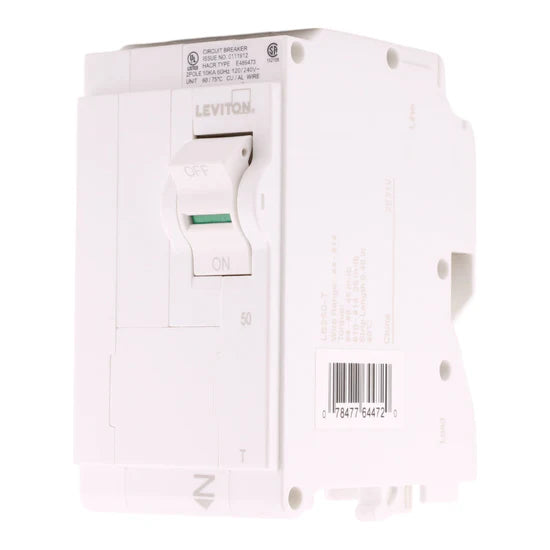

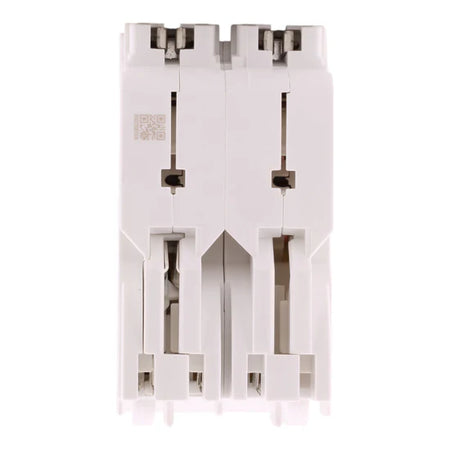

Leviton LB250-T 50A 2-Pole Standard Thermal Magnetic Breaker – Plug-On Neutral – 120/240V

The Leviton LB250-T plug-on neutral circuit breaker provides dependable 50A, 2-pole protection for 120/240V residential circuits. Designed for Leviton Load Centers, it features thermal-magnetic trip technology and intuitive rocker-style switches, ensuring both safety and ease of use. Its plug-on neutral design simplifies installation while maintaining high-performance reliability.

Voltage and Rating

• Amperage: 50 Amps
• Poles: 2-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications

• Breaker Type: Standard Thermal Magnetic
• Mounting Type: Plug-On Neutral
• Product Range: Load Center
• Application: Residential branch circuit protection
• Compatible Panels: Leviton Load Centers

Technical Specifications

• Wire Size Range: #8–2 AWG Copper/Aluminum
• Connection Terminals: Plug-on neutral
• Terminal Tightening Torque: 35 lb-in
• Certifications: UL Listed, RoHS Compliant

Product Data

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Model Number: LB250-T
• UPC: 078477644720

Dimensions

• • Height: 3.9 in
  • Width: 2.0 in
  • Depth: 1.1 in
  • Weight: 0.518 lbs
