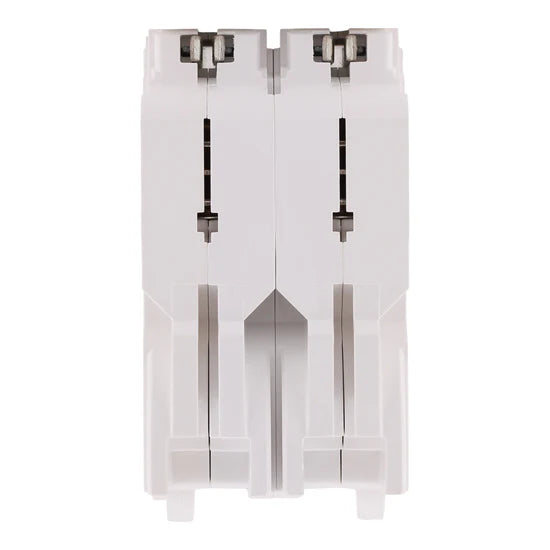

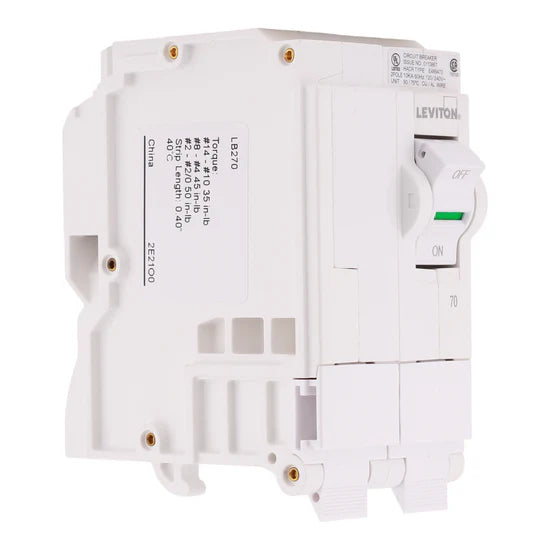

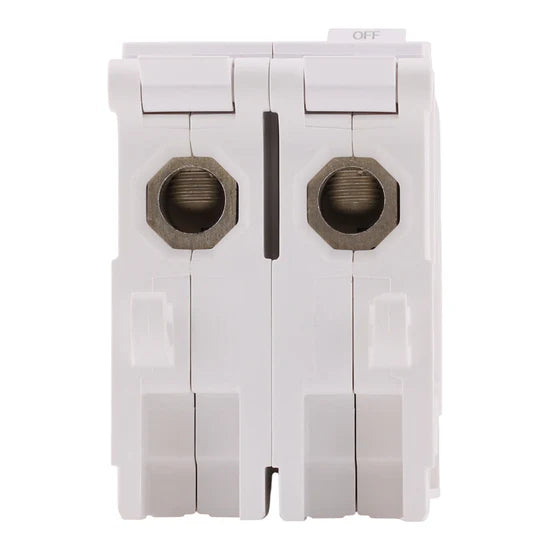

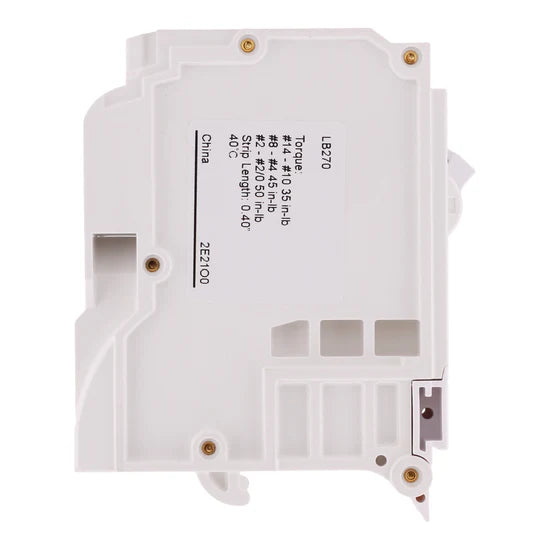

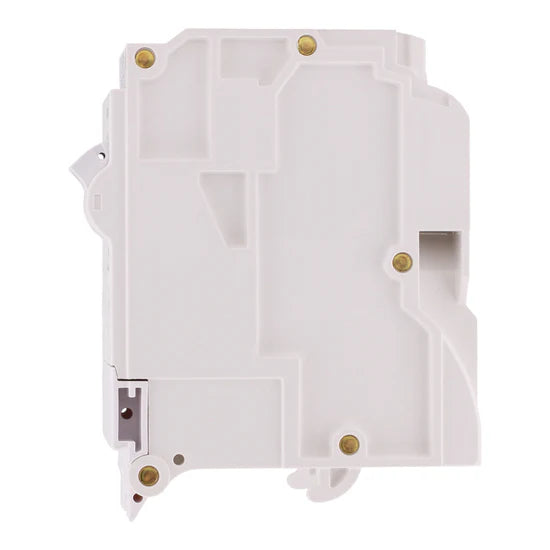

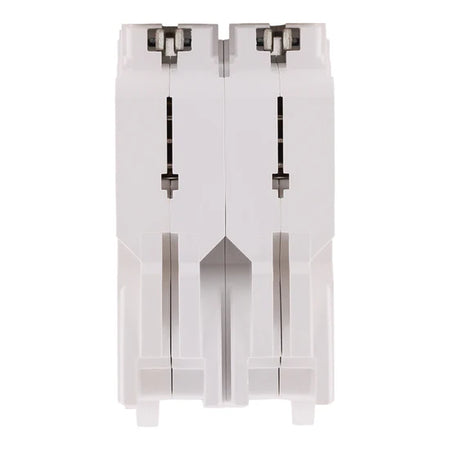

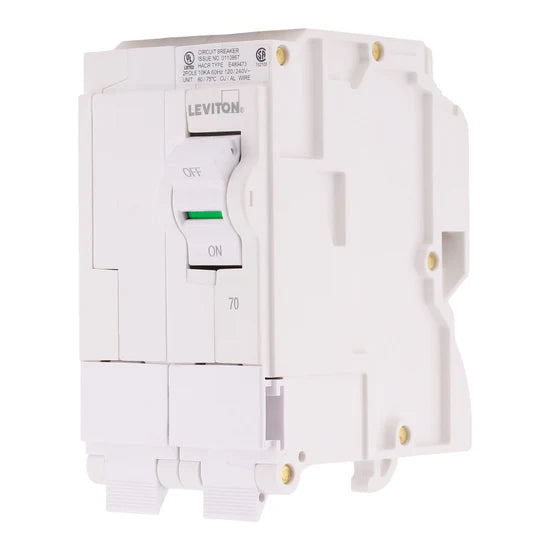

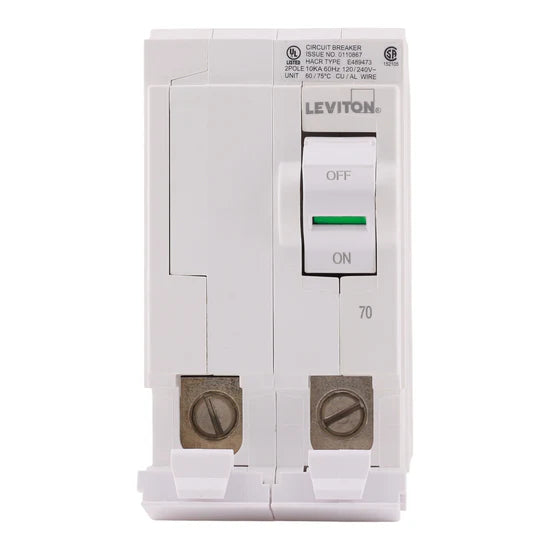

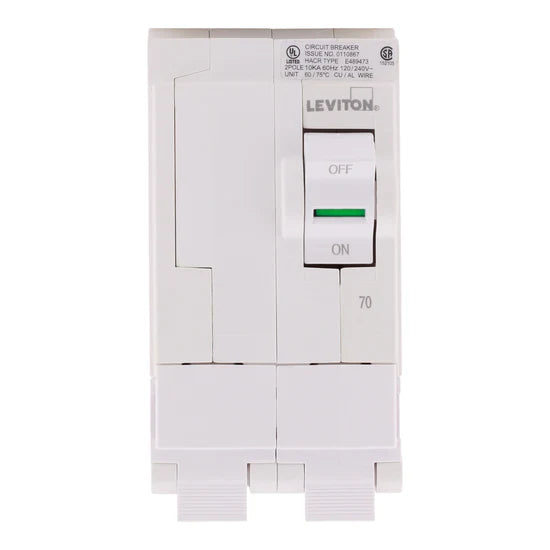

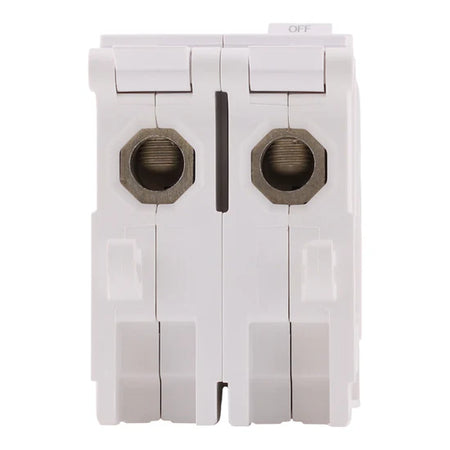

Leviton LB270 70A 2P Hydraulic-Magnetic Standard Circuit Breaker – Plug-On – 120/240V

The Leviton LB270 is a 2-pole hydraulic-magnetic plug-on circuit breaker designed for Leviton revolutionary plug-on neutral load centers. Delivering 70A protection for 120/240V and 120/208V circuits, it features a 10kA interrupt rating and precision hydraulic-magnetic trip technology, providing reliable overload and short-circuit protection with stable performance across extreme temperatures.

Electrical Ratings:

• Amperage: 70 Amps
• Poles: 2-Pole
• Voltage: 120/240V AC (also compatible with 120/208V)
• Interrupt Rating: 10 kAIC

Key Specifications:

• Breaker Type: Standard Branch Circuit Breaker (Hydraulic-Magnetic)
• Mounting Mode: Plug-On Neutral
• Connections Terminals: Plug-On Neutral
• Wire Size: (1) #4–2/0 AWG Cu/Al
• Tightening Torque: 45 lb-in

Dimensions & Weight:

• Height: 3.90 in
• Width: 2.00 in
• Depth: 3.40 in
• Weight: 0.95 lbs

Certifications:

• UL Listed

Product Data:

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Product Range: Leviton Load Center (compatible with plug-on neutral load centers)
• Model Number: LB270

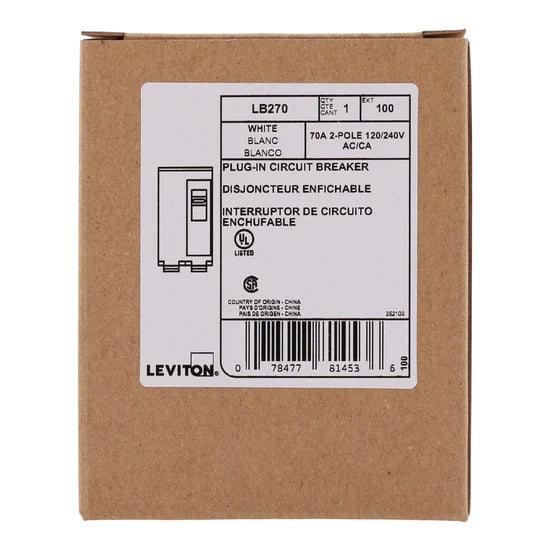

• UPC: 078477814536
