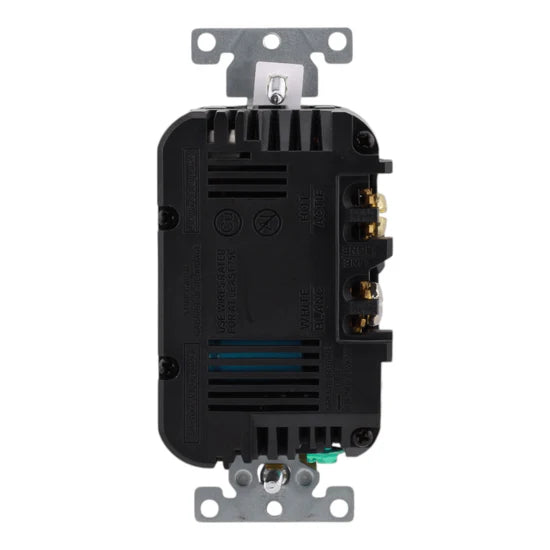

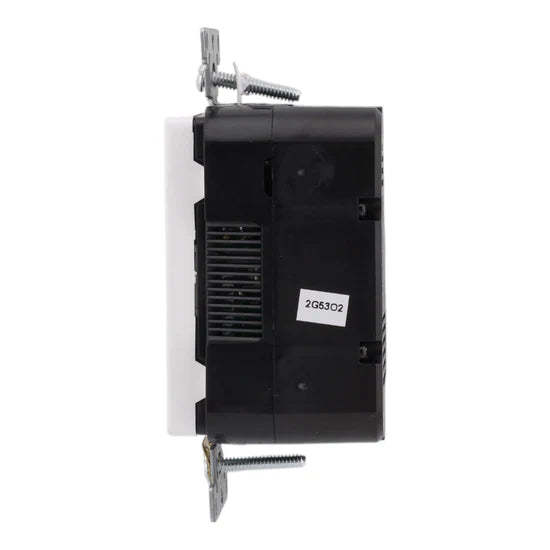

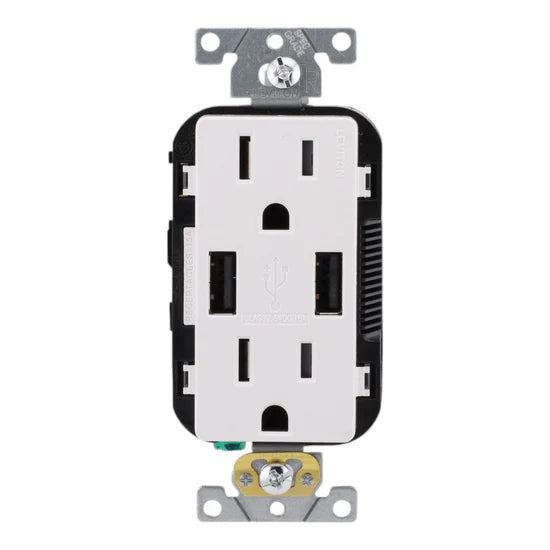

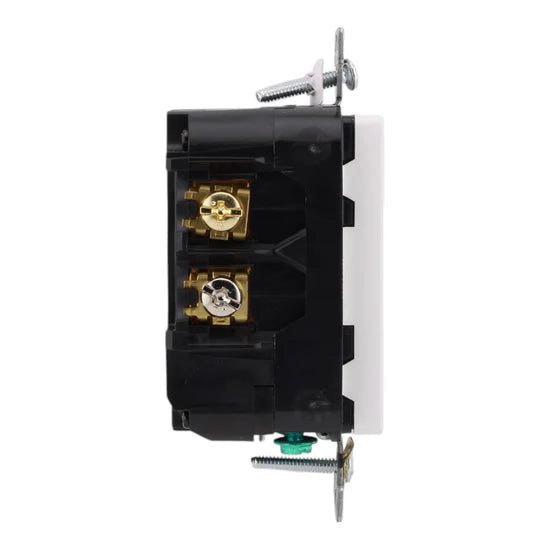

The **Leviton T5632-SW combination duplex receptacle with USB charging provides convenient power and fast device charging in one space-saving design. Featuring two tamper-resistant outlets and dual USB Type-A ports, this Decora-style device delivers up to 3.6A of shared USB charging current. The built-in smart chip optimizes charging for connected devices, while self-grounding construction and flexible side/back wiring simplify installation. Ideal for residential and commercial environments where reliable power and USB charging are needed.
Voltage and Rating
- Receptacle Amperage: 15 Amps
- USB Output: 3.6 Amps (shared)
- Receptacle Voltage: 125 Volts AC
- USB Voltage: 5 Volts DC
Key Specifications
- Type: Combination Duplex Receptacle and USB Charger
- Receptacle Type: NEMA 5-15R, Tamper-Resistant
- USB Ports: 2 × Type-A
- Mounting Type: Decora mount
- Wiring: Side and back wired
- Color: White
- Size: Standard Decora
Technical Specifications
- Smart chip for device optimization
- Tamper-resistant shutters
- Self-grounding design
- Durable thermoplastic construction
- Certifications: UL Listed
Key Features and Benefits
- Smart Charging: Automatically detects device requirements
- High USB Output: 3.6A shared charging capacity
- Enhanced Safety: Tamper-resistant outlet protection
- Space Saving: Replaces outlet and charger in one device
- Easy Installation: Self-grounding with side/back wiring
Applications
- Bedrooms and living areas
- Kitchens and home offices
- Hotels and commercial spaces
- Public charging locations
Product Data
-
- Brand: Leviton
- Model Number: T5632-SW
- UPC: 078477714812
- Country of Origin: China
- Dimensions: Standard Decora size
