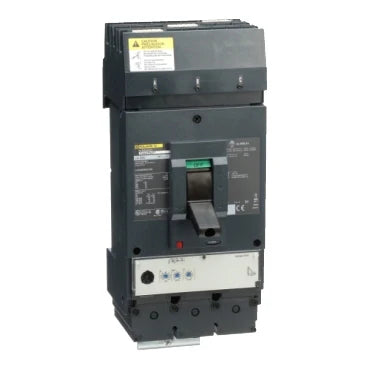

LGA36250U33X - Square D I-Line Style Plug-In 600V 250A 3 pole circuit breaker 35kA@480V
Couldn't load pickup availability
Ask an expert
Description
LGA36250U33X
The Square D LGA36250U33X is a Molded Case Circuit Breaker. This type LGA circuit breaker is a member of The Powerpact family. The LGA36250U33X is a 3 pole, 600 Volt, 250 amp rated circuit breaker, with an AIC rating of 35kA@480V. The LGA36250U33X is manufactured by Square D. The LGA36250U33X uses a I-Line Style Plug-In connection. Includes Solid State protection
Specifications
- Part Number: LGA36250U33X
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : LGA
- Voltage : 600
- Amperage : 250
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Terminal Connection : I-Line, Lug
- Frame Size : L
- MCM Size : Min. Wire Size 2 AWG (Cu/Al) Max. Wire Size 600 kcmil (Cu), 500 kcmil (Al)
- Temp Rating : 28-158 °F (-2-70 °C)
- Wire Size : AWG 2...600 kcmil copper<br /> AWG 2...500 kcmil aluminum
Product Data
- UPC : 785901702627
- GTIN : 00785901702627
- Country of Origin : United States
- Dimensions : 5.51 in x 13.39 in
- Weight : 1
- Standards : UL, CSA, NEMA, NOM, IEC
- Certification : UL, CSA, NEMA, NOM, IEC
- Wire Size : AWG 2...600 kcmil copper<br /> AWG 2...500 kcmil aluminum
- Type Circuit Breakers
- Vendor Schneider Electric
- Brand Square D
- Electrical Rating I-Line Plug-In - 250 Amp - 3 Pole - 600 Volt
