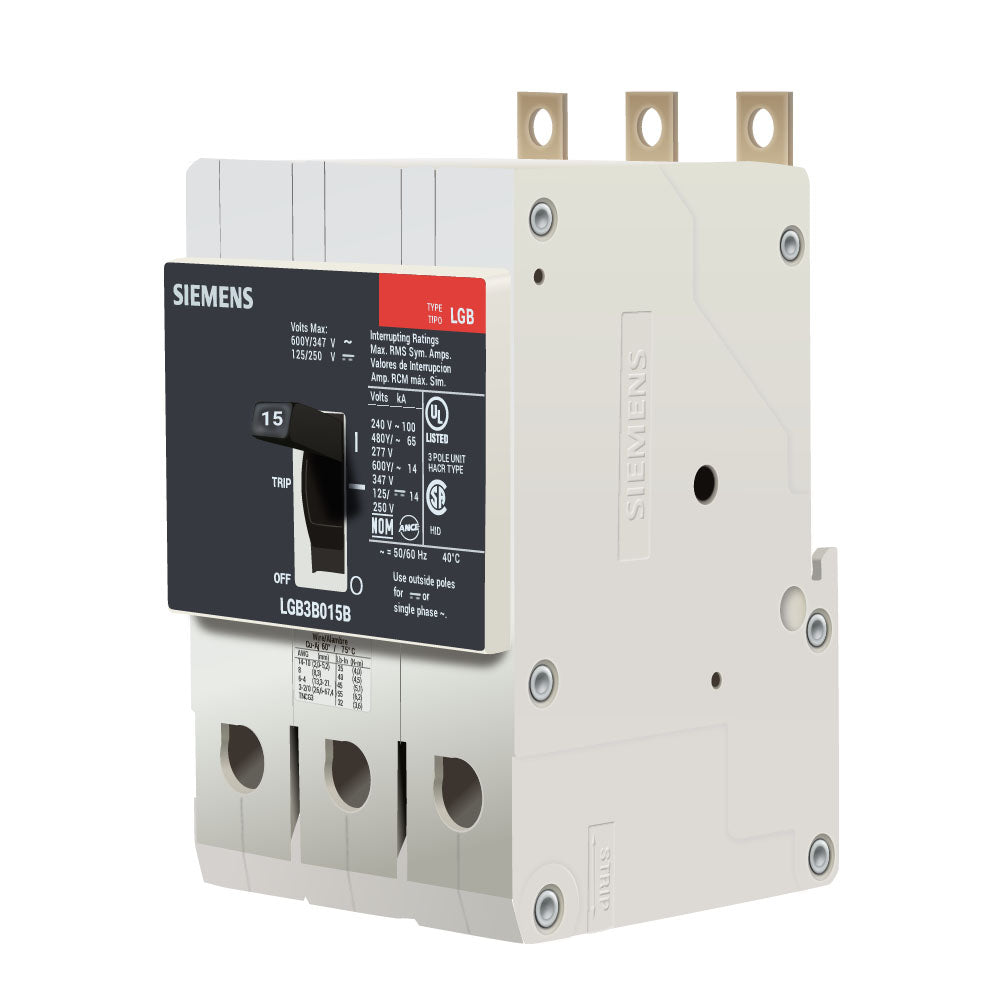

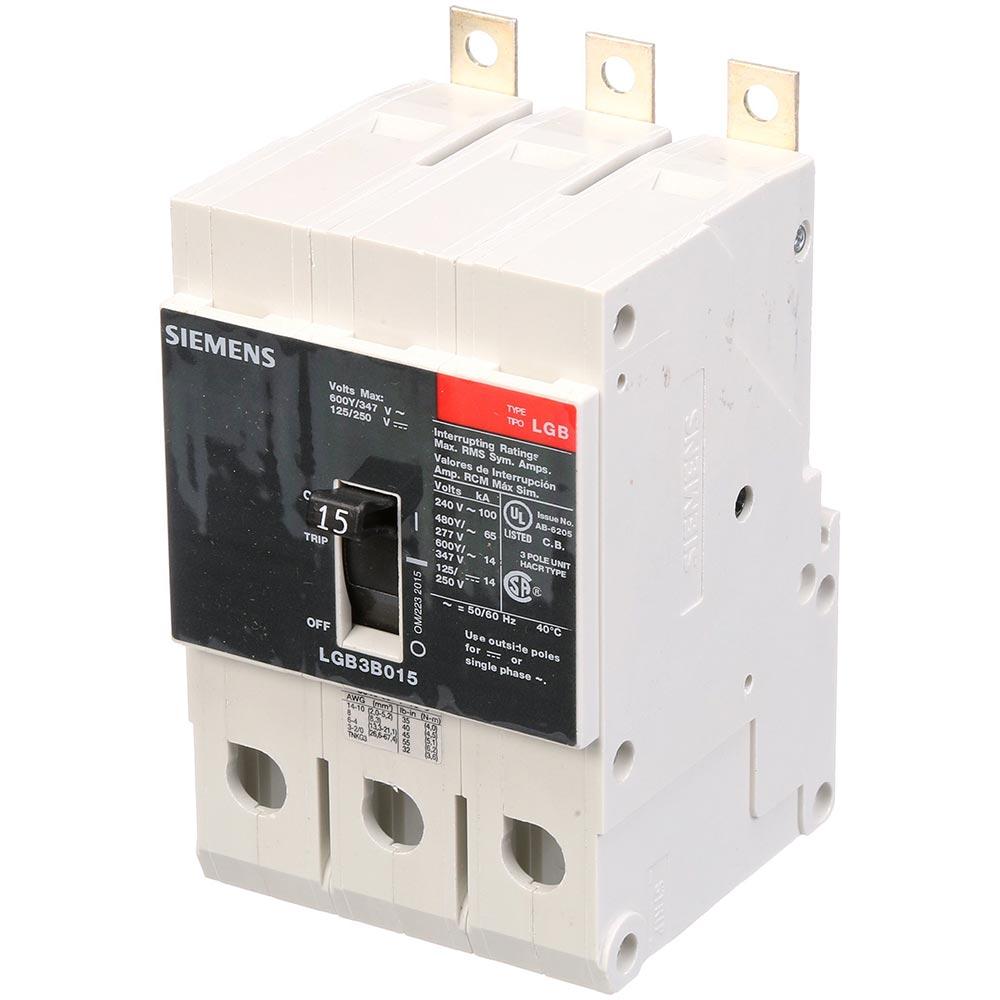

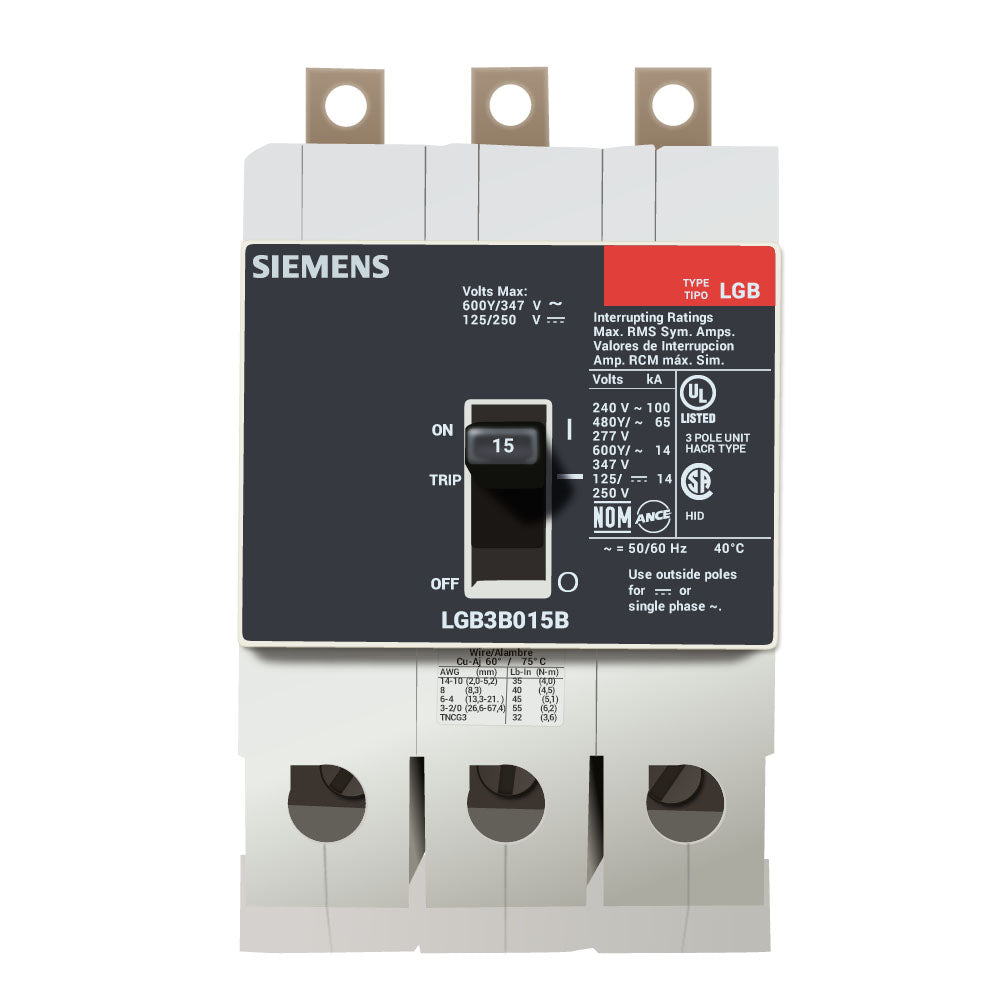

Siemens LGB3B015B Molded Case Circuit Breaker – 15A – 3-Pole / 3-Phase – 600V – 100kA @ 240V – Bolt-On – VL Series LGB

The Siemens LGB3B015B is a 15A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series Type LGB. It features thermal-magnetic protection, a high interrupting capacity, and a 100kA interrupting rating at 240V.

The LGB3B015B is designed for panelboard mounting and uses a bolt-on connection. It features Long-Time and Instantaneous (LI) trip functions, includes load-side lug terminals, and is suitable for reverse-feed applications.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: LGB
• Type: LGB
• Catalog No.: LGB3B015B
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Panelboard Mounting
• Connection Type: Bolt-On
• Terminal Configuration: Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Feed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGB3B015B
• Catalog Number: LGB3B015B
• Product Family: Siemens VL Series Molded Case Circuit Breakers
• Series: LGB
• Type: LGB
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Model: LGB3B015B
• Breaker Configuration: 3-Pole, 15A
• upc:887621220211

Compatibility:

Designed for use with compatible Siemens VL Series Type LGB electrical distribution equipment that accepts bolt-on molded case circuit breakers. The LGB3B015B provides 15A, 3-pole thermal-magnetic protection for compatible 600V, 3-phase applications.

The breaker is designed for panelboard mounting, includes load-side lug terminals, and is suitable for reverse-feed applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, reverse-feed requirements, and installation instructions before installation.

Certifications:

• Specific Certifications: Not Specified
