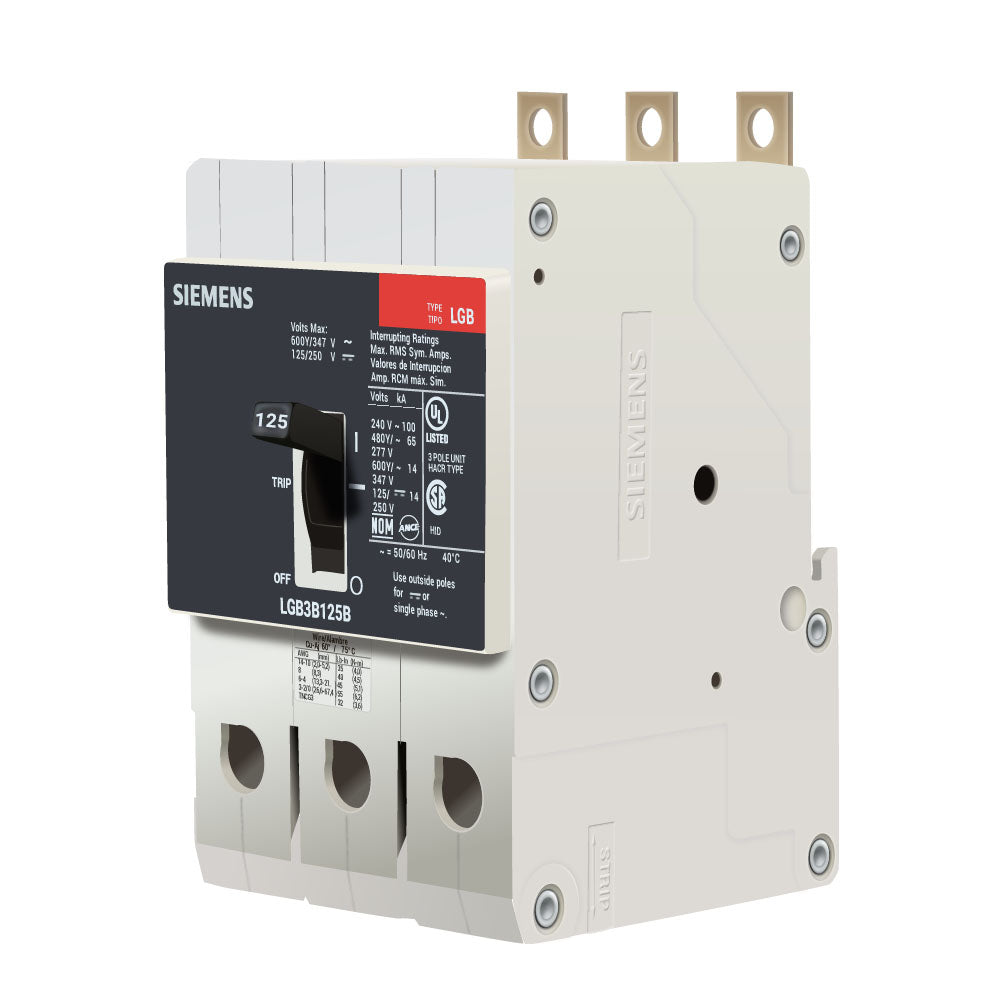

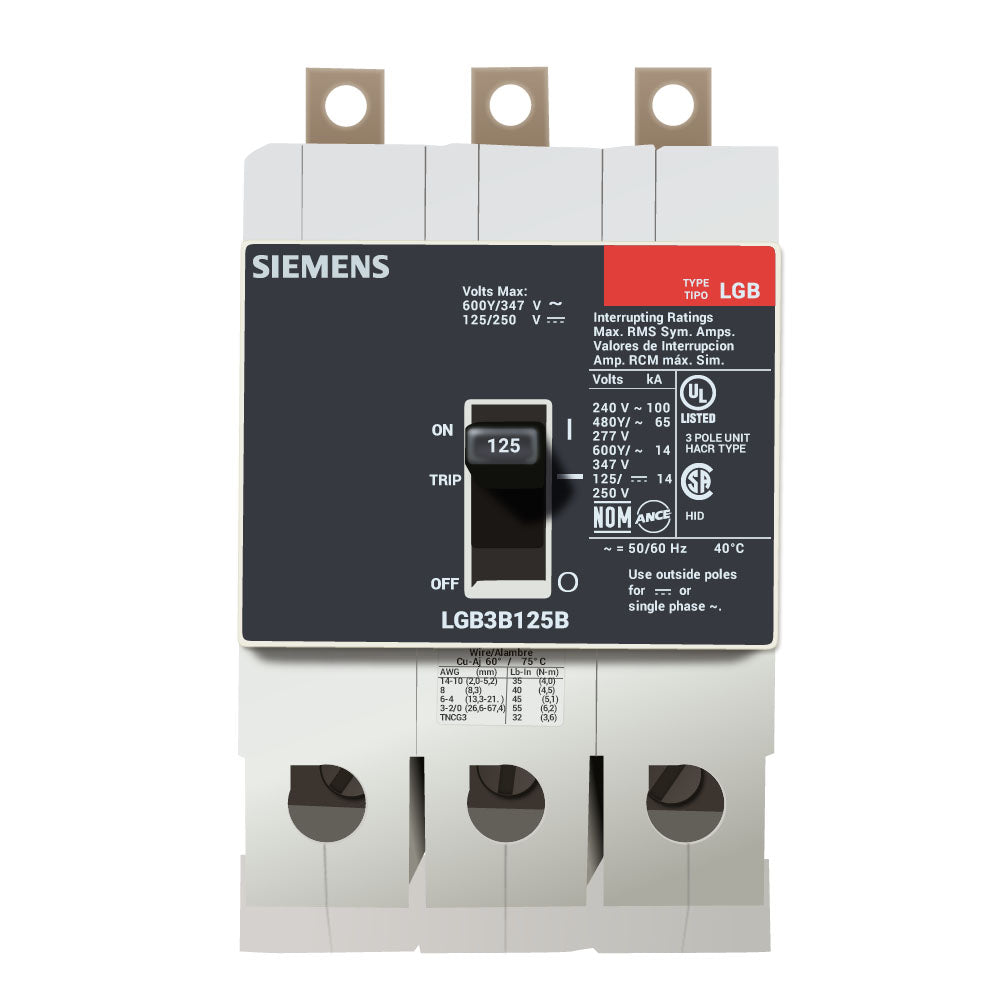

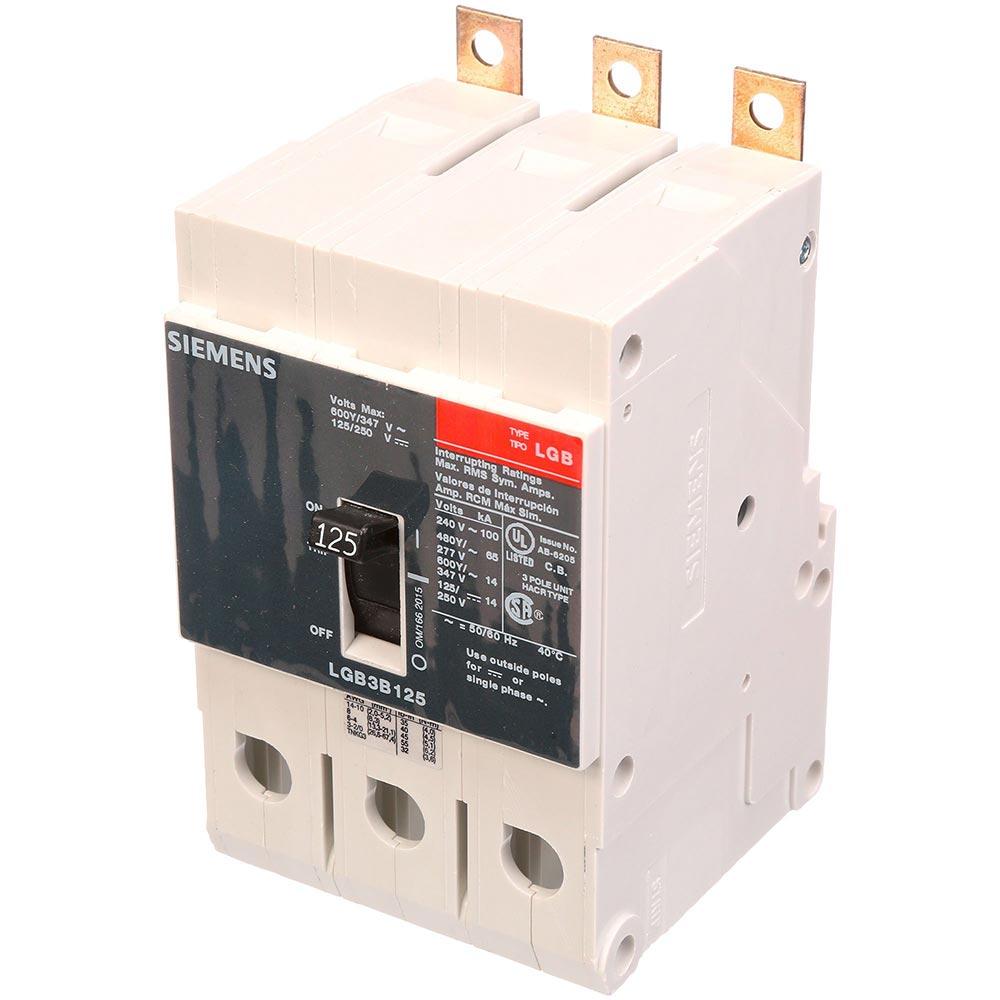

Siemens LGB3B125B Molded Case Circuit Breaker – 125A – 3-Pole / 3-Phase – 600V – 100kA @ 240V – Bolt-On – VL Series LGB

The Siemens LGB3B125B is a 125A, 3-pole, 3-phase molded case circuit breaker from the Siemens VL Series Type LGB. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a complete, non-interchangeable trip configuration.

The LGB3B125B is rated for 600V and provides a 100kA interrupting rating at 240V, with a high interrupting capacity. It is designed for panelboard mounting, uses a bolt-on connection, is suitable for reverse-feed applications, and includes load-side lug terminals.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: VL Series
• Series: VL
• Type: LGB
• Catalog No.: LGB3B125B
• Current Rating: 125A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 240V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Panelboard Mounting
• Connection Type: Bolt-On
• Reverse Feed: Suitable for Reverse-Feed Applications
• Terminal Type: Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGB3B125B
• Catalog Number: LGB3B125B
• Model: LGB3B125B
• Product Family: Siemens VL Series Molded Case Circuit Breakers
• Series: VL
• Type: LGB
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 125A
• UPC:887621220358

Compatibility:

Designed for use with compatible Siemens VL Series Type LGB electrical distribution equipment that accepts bolt-on molded case circuit breakers. The LGB3B125B provides 125A, 3-pole thermal-magnetic protection for compatible 600V applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, a non-interchangeable trip, high interrupting capacity, panelboard mounting, reverse-feed suitability, and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, mounting requirements, and installation instructions before installation.

Certifications:

• VL Series
• LGB Type
• 125A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 240V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Panelboard Mounted
• Bolt-On Connection
• Suitable for Reverse-Feed Applications
• Load-Side Lug Terminals
