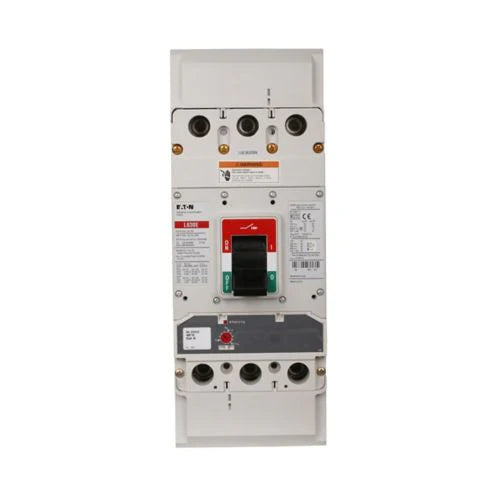

Eaton LGE3400FAG Molded Case Circuit Breaker – 400A – 3-Pole / 3-Phase – 600V AC – 65kAIC @ 240V – Line & Load – Series G LG

The Eaton LGE3400FAG is a 400A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series G LG Frame. It features fixed thermal protection with an adjustable magnetic trip for compatible electrical distribution applications.

The breaker is rated for up to 600V AC and provides interrupting ratings of 65kAIC at 240V AC, 35kAIC at 480V AC, and 18kAIC at 600V AC. It operates at 50/60Hz, uses line- and load-side connections, and is specified as 80% rated with metric configuration.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: LG
• Frame: LG Frame
• Catalog No.: LGE3400FAG
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 65kAIC @ 240V AC; 35kAIC @ 480V AC; 18kAIC @ 600V AC
• Protection Type: Thermal-Magnetic
• Thermal Trip: Fixed Thermal
• Magnetic Trip: Adjustable Magnetic
• Connection: Line and Load
• Configuration: Metric
• Frequency: 50/60Hz
• Rating: 80% Rated
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGE3400FAG
• Catalog Number: LGE3400FAG
• Model: LGE3400FAG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: LG
• Frame: LG Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 400A
• Trip Configuration: Fixed Thermal / Adjustable Magnetic
• UPC:782116142408

Compatibility:

Designed for use with compatible Eaton Series G LG Frame electrical distribution equipment that accepts LG Series molded case circuit breakers. The LGE3400FAG provides 400A, 3-pole thermal-magnetic protection for compatible electrical distribution systems up to 600V AC.

The breaker provides different interrupting ratings depending on system voltage and uses line- and load-side connections. It is specified as 80% rated and operates at 50/60Hz.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, interrupting rating, conductor and terminal requirements, and installation specifications before installation.

Certifications:

• Series G LG
• LG Frame
• 400A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 65kAIC @ 240V AC
• 35kAIC @ 480V AC
• 18kAIC @ 600V AC
• Fixed Thermal Protection
• Adjustable Magnetic Trip
• Line and Load Connections
• 50/60Hz
• 80% Rated
• Metric Configuration
