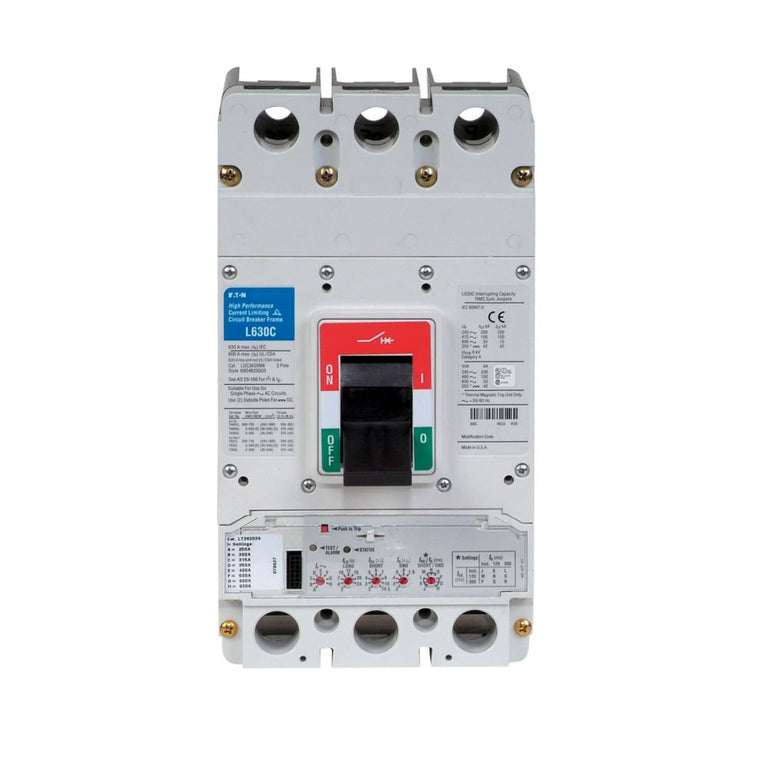

Eaton Cutler-Hammer LGE3500AAG 500 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 65 kAIC at 240 Vac – Series G

The Eaton Cutler-Hammer LGE3500AAG is a Series G molded case circuit breaker featuring an LG frame, a 500 A current rating, and an adjustable thermal, adjustable magnetic trip mechanism. Designed for industrial and commercial electrical distribution systems, it provides adjustable thermal overload and magnetic short-circuit protection. The breaker operates at up to 600 Vac and offers interrupting capacities of 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac. It features line- and load-side connections and a metric configuration.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Product Series: Series G
• Frame Type: LG Frame
• Breaker Type: LGE
• Catalog Number: LGE3500AAG
• Current Rating: 500 A
• Number of Poles: 3 Pole
• Voltage Rating: 600 Vac
• Interrupting Capacity at 240 Vac: 65 kAIC
• Interrupting Capacity at 415 Vac: 35 kAIC
• Interrupting Capacity at 480 Vac: 35 kAIC
• Interrupting Capacity at 600 Vac: 18 kAIC
• Trip Type: Adjustable thermal, adjustable magnetic
• Protection Functions: Thermal overload and magnetic short-circuit protection
• Connection Type: Line and load
• Measurement System: Metric

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: LGE3500AAG
• Product Family: Series G
• Frame Designation: LG Frame
• Breaker Configuration: Complete molded case circuit breaker
• Trip Mechanism: Adjustable thermal, adjustable magnetic
• Current Rating: 500 Amp
• Pole Configuration: 3 Pole
• UPC:782116120383

Compatibility

Designed for electrical distribution applications requiring an Eaton Cutler-Hammer Series G LG-frame, three-pole, 500 A molded case circuit breaker with adjustable thermal and adjustable magnetic trip functions. Compatibility depends on matching the electrical ratings, frame configuration, and installation requirements of the existing equipment.
