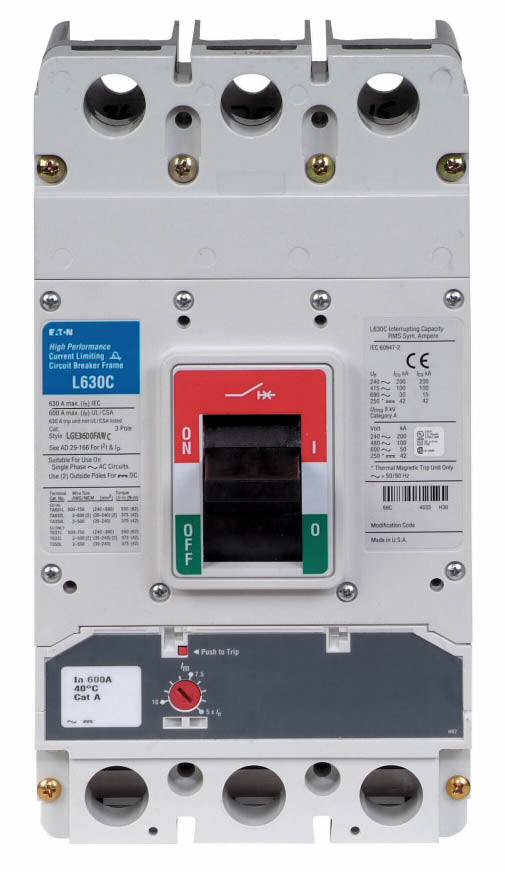

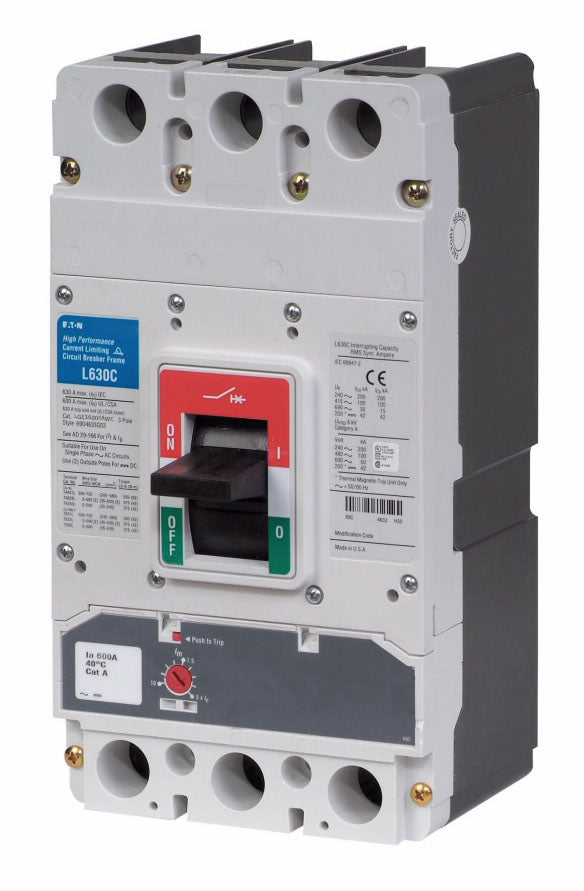

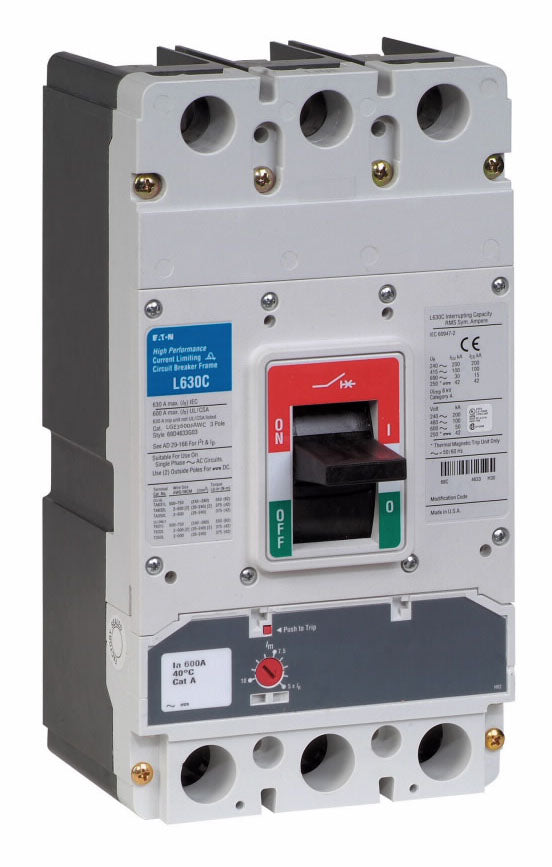

Eaton Series G LGE3600FAWC 600 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 35 kAIC @ 480V – LG Frame

The Eaton LGE3600FAWC is a Series G, LG-frame molded case circuit breaker featuring fixed thermal and adjustable magnetic trip protection. It is designed for industrial and commercial electrical distribution applications and supports 100% rated operation.

Specifications

• Brand: Eaton
• Series: Series G
• MPN: LGE3600FAWC
• Product Type: Molded Case Circuit Breaker
• Frame: LG
• Type: LGE
• Amperage Rating: 600A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupting Capacity: 65 kAIC at 240V AC; 35 kAIC at 415V AC; 35 kAIC at 480V AC; 18 kAIC at 600V AC
• Trip Type: Fixed thermal and adjustable magnetic
• Connection Material: Copper
• Terminals: Not included
• Rated Current: 100% rated

Part Numbers & Identification

• Manufacturer Part Number: LGE3600FAWC
• UPC:786685291291

Compatibility

Designed for compatible Eaton Series G LG-frame installations requiring a three-pole, 600A circuit breaker with fixed thermal and adjustable magnetic trip protection and 100% rated operation. Terminals are not included.
