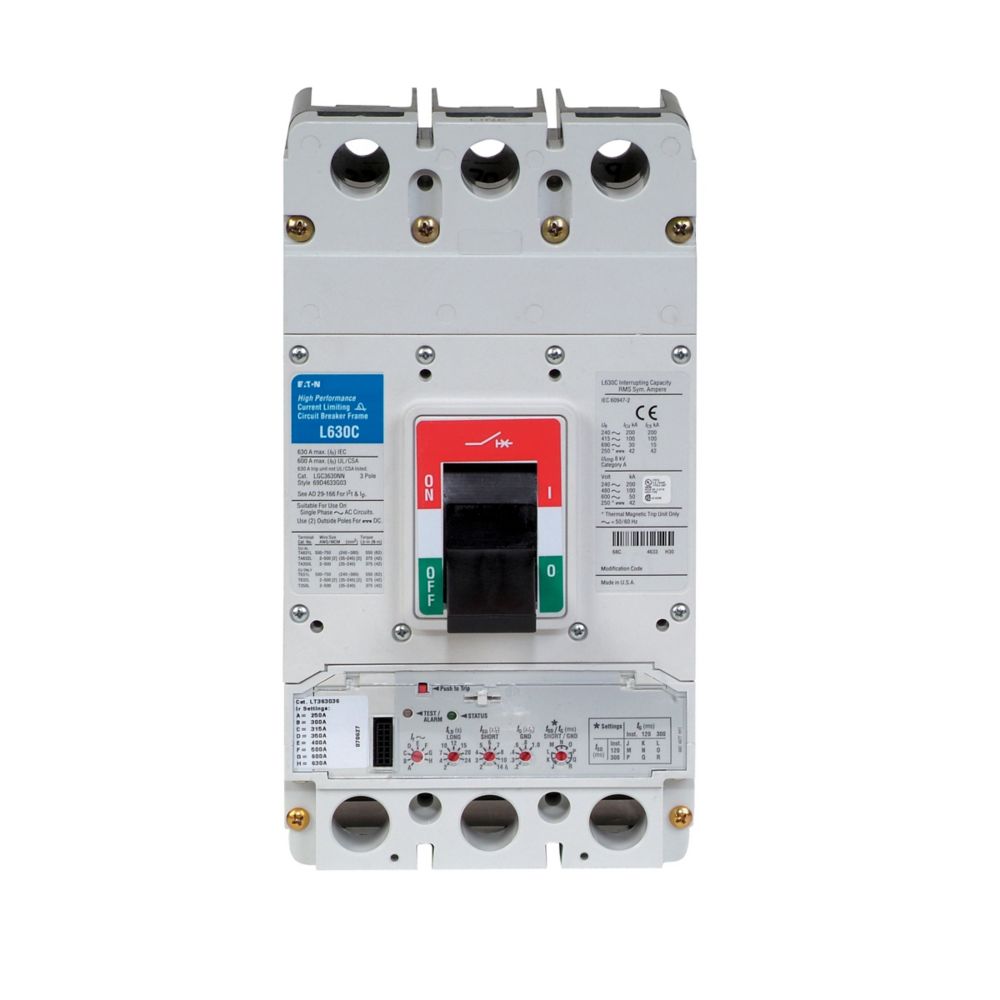

Eaton Cutler-Hammer LGE363033G 630 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 65 kAIC at 240 Vac – Series G

The Eaton Cutler-Hammer LGE363033G is a Series G electronic molded case circuit breaker featuring an LG frame and a 630 A current rating. It is equipped with a Digitrip 310 RMS electronic LS trip unit, providing long-time and short-time overcurrent protection. This three-pole breaker is rated for 600 Vac and has interrupting capacities of 65 kAIC at 240 Vac, 35 kAIC at 415 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac. It supports line and load connections and uses metric specifications.

Specifications

• Brand: Eaton
• Manufacturer: Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker (MCCB)
• Series: Series G
• Frame Type: LG frame
• Catalog Number: LGE363033G
• Current Rating: 630 A
• Number of Poles: 3
• Trip Unit: Digitrip 310 RMS
• Trip Type: Electronic LS
• Protection Functions: Long-time and short-time overcurrent protection
• Voltage Rating: 600 Vac
• Interrupting Capacity at 240 Vac: 65 kAIC
• Interrupting Capacity at 415 Vac: 35 kAIC
• Interrupting Capacity at 480 Vac: 35 kAIC
• Interrupting Capacity at 600 Vac: 18 kAIC
• Connection Type: Line and load
• Measurement System: Metric

Part Numbers & Identification

• MPN: LGE363033G
• Model: LGE363033G
• Product Family: Eaton Cutler-Hammer Series G
• Frame Designation: LG
• Trip Unit Identification: Digitrip 310 RMS
• Breaker Configuration: Three-pole, 630 A electronic MCCB
• Trip Configuration: Electronic LS


Compatibility

Designed for electrical distribution systems requiring an Eaton Cutler-Hammer Series G LG-frame, three-pole, 630 A electronic circuit breaker with a Digitrip 310 RMS LS trip unit. Confirm system voltage, interrupting capacity, mounting arrangement, and terminal compatibility before replacement.
