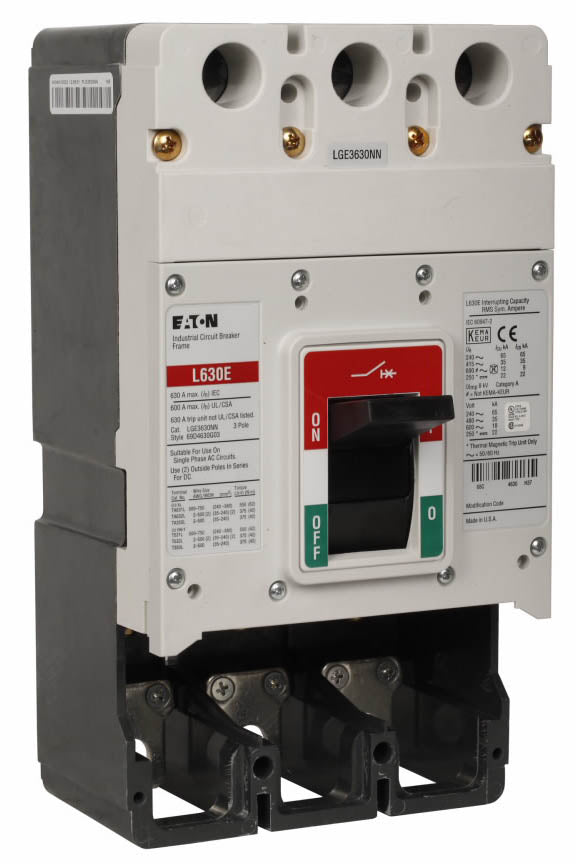

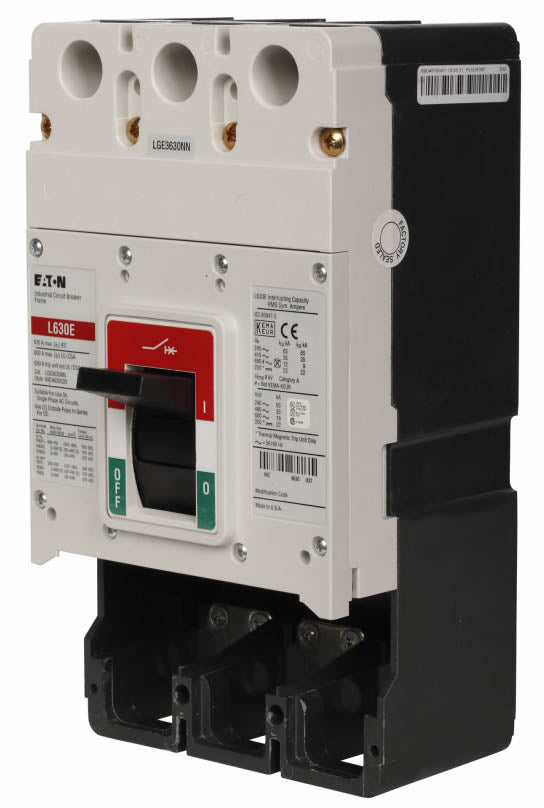

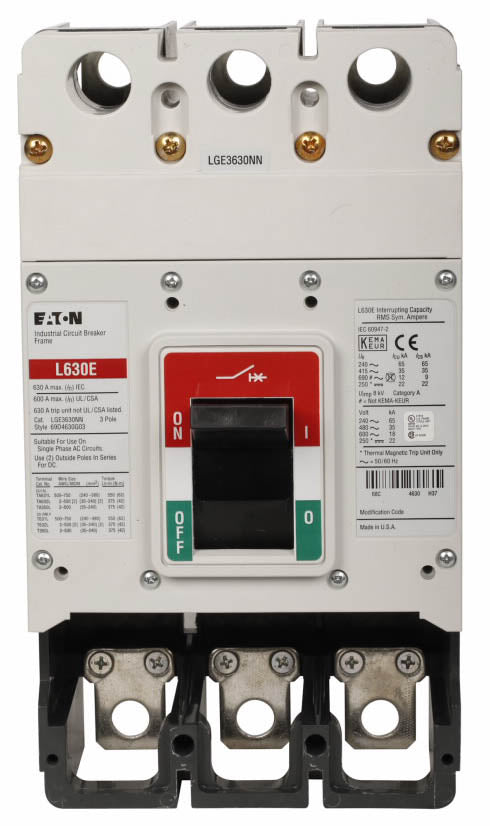

Eaton LGE3630NN Molded Case Circuit Breaker Frame – 630A – 3-Pole – 600V – 65kAIC @ 240V / 35kAIC @ 480V / 18kAIC @ 600V – Frame Only – Series G

The Eaton LGE3630NN is a 630A, 3-pole molded case circuit breaker accessory frame from the Eaton Series G. It is supplied as a frame only and does not include a trip unit.

The Frame J-K configuration provides interrupting capacities of 65kAIC at 240V, 35kAIC at 480V, and 18kAIC at 600V. It is designed for compatible Eaton molded case circuit breaker applications where the appropriate trip unit and required accessories are selected separately.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Product Name: Molded Case Circuit Breaker Accessory Frame
• Catalog No.: LGE3630NN
• Product Family: Series G
• Series: G
• Frame: J-K Frame
• Current Rating: 630A
• Number of Poles: 3-Pole
• Interrupting Rating: 65kAIC @ 240V; 35kAIC @ 480V; 18kAIC @ 600V
• Trip Unit: Not Included
• Configuration: Frame Only
• Application: Compatible Molded Case Circuit Breaker Applications
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGE3630NN
• Catalog Number: LGE3630NN
• Model: LGE3630NN
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: G
• Frame: J-K Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 630A, Frame Only
• UPC:782116336142

Compatibility:

Designed for use with compatible Eaton Series G Frame J-K molded case circuit breaker applications. The LGE3630NN is supplied as a frame only, with no trip unit included. The appropriate trip unit and other required components must be selected separately as applicable.

Always verify the specific electrical equipment model, approved frame and trip-unit combination, system voltage, available fault current, pole configuration, required accessories, and installation requirements before installation.

Certifications:

• No specific certification information provided
