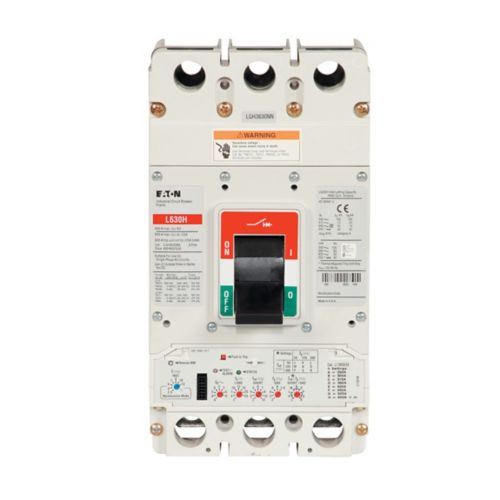

Eaton Cutler-Hammer LGH3320AAG 320 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 100 kAIC at 240 Vac – Series G

The Eaton Cutler-Hammer LGH3320AAG is a Series G molded case circuit breaker featuring an LG frame and a 320 A current rating. It uses an adjustable thermal and adjustable magnetic trip mechanism to provide circuit protection. This three-pole breaker has interrupting capacities of 100 kAIC at 240 Vac, 65 kAIC at 480 Vac, and 35 kAIC at 600 Vac. It supports line and load connections, operates at 50/60 Hz, and is rated for 80% continuous loading.

Specifications

• Brand: Eaton
• Manufacturer: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series G
• Frame Type: LG frame
• Catalog Number: LGH3320AAG
• Current Rating: 320 A
• Number of Poles: 3
• Trip Type: Adjustable thermal, adjustable magnetic
• Voltage Rating: 600 Vac
• Interrupting Capacity at 240 Vac: 100 kAIC
• Interrupting Capacity at 480 Vac: 65 kAIC
• Interrupting Capacity at 600 Vac: 35 kAIC
• Connection Type: Line and load
• Frequency: 50/60 Hz
• Continuous Rating: 80%
• Measurement System: Metric

Part Numbers & Identification

• MPN: LGH3320AAG
• Model: LGH3320AAG
• Product Family: Eaton Cutler-Hammer Series G
• Frame Designation: LG
• Breaker Configuration: Three-pole, 320 A MCCB
• UPC:782116120604

Compatibility

Suitable for electrical distribution systems designed for an Eaton Cutler-Hammer Series G LG-frame, three-pole, 320 A circuit breaker with matching voltage and interrupting-capacity requirements. Confirm panel compatibility and connection arrangements before replacement.
