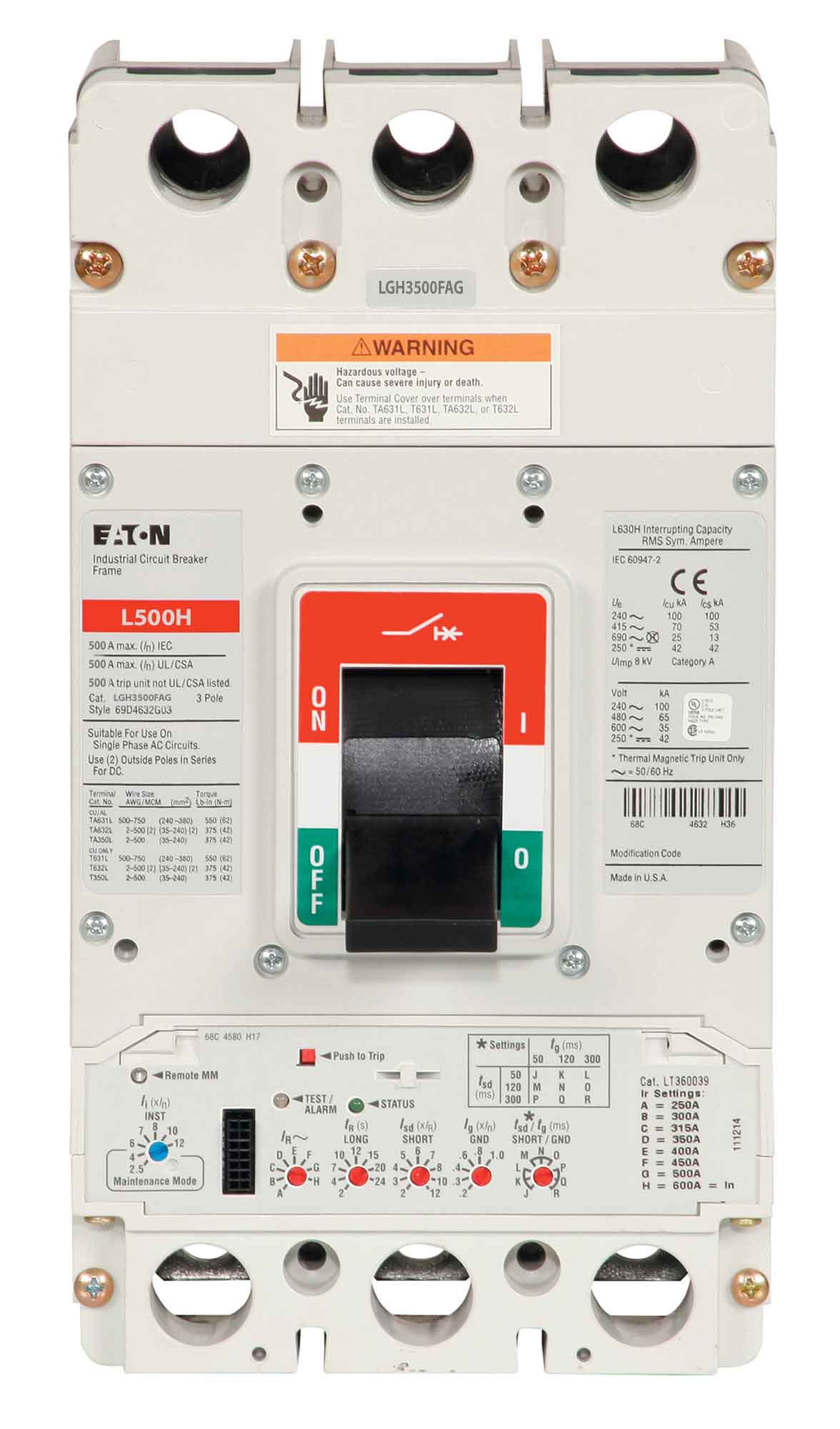

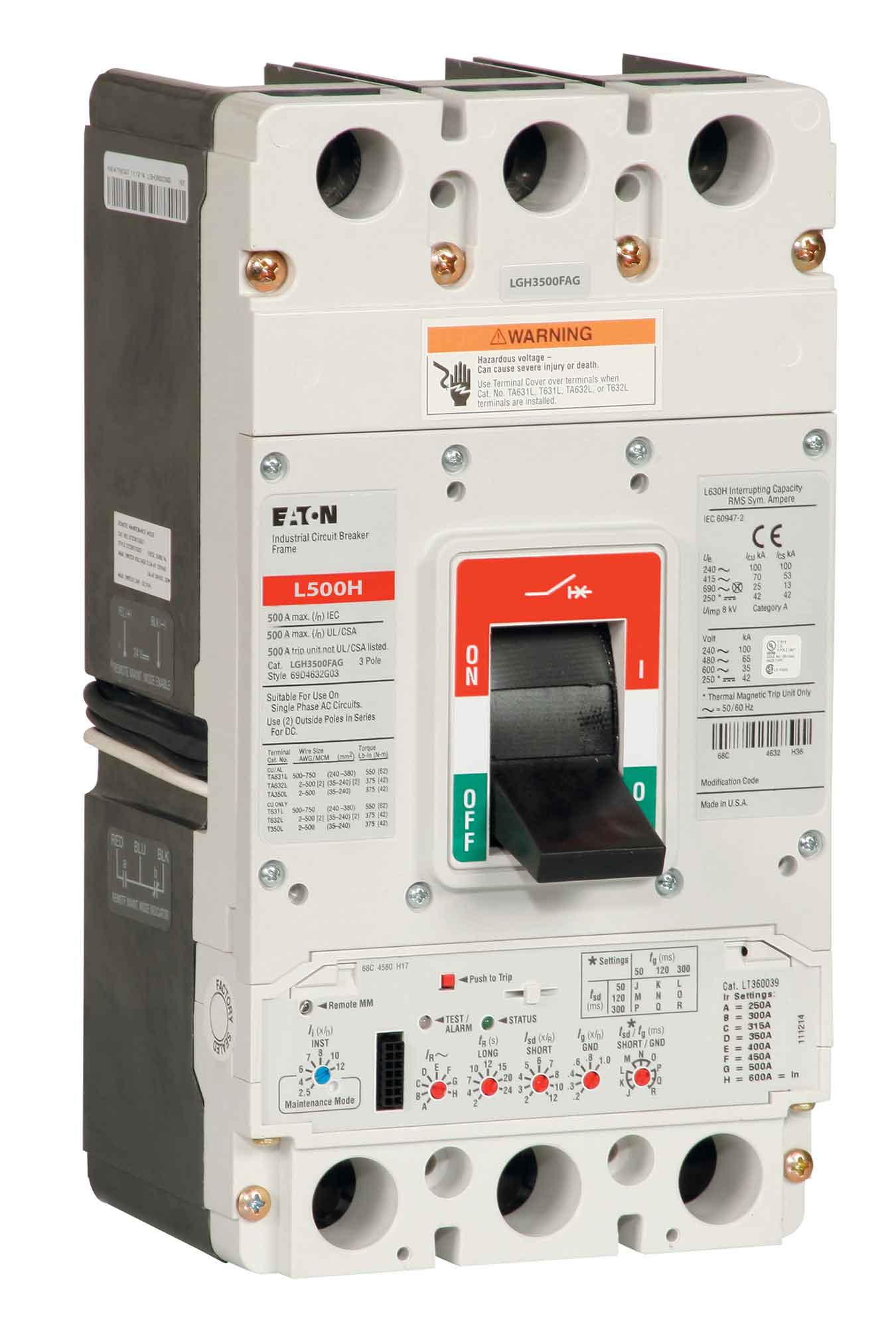

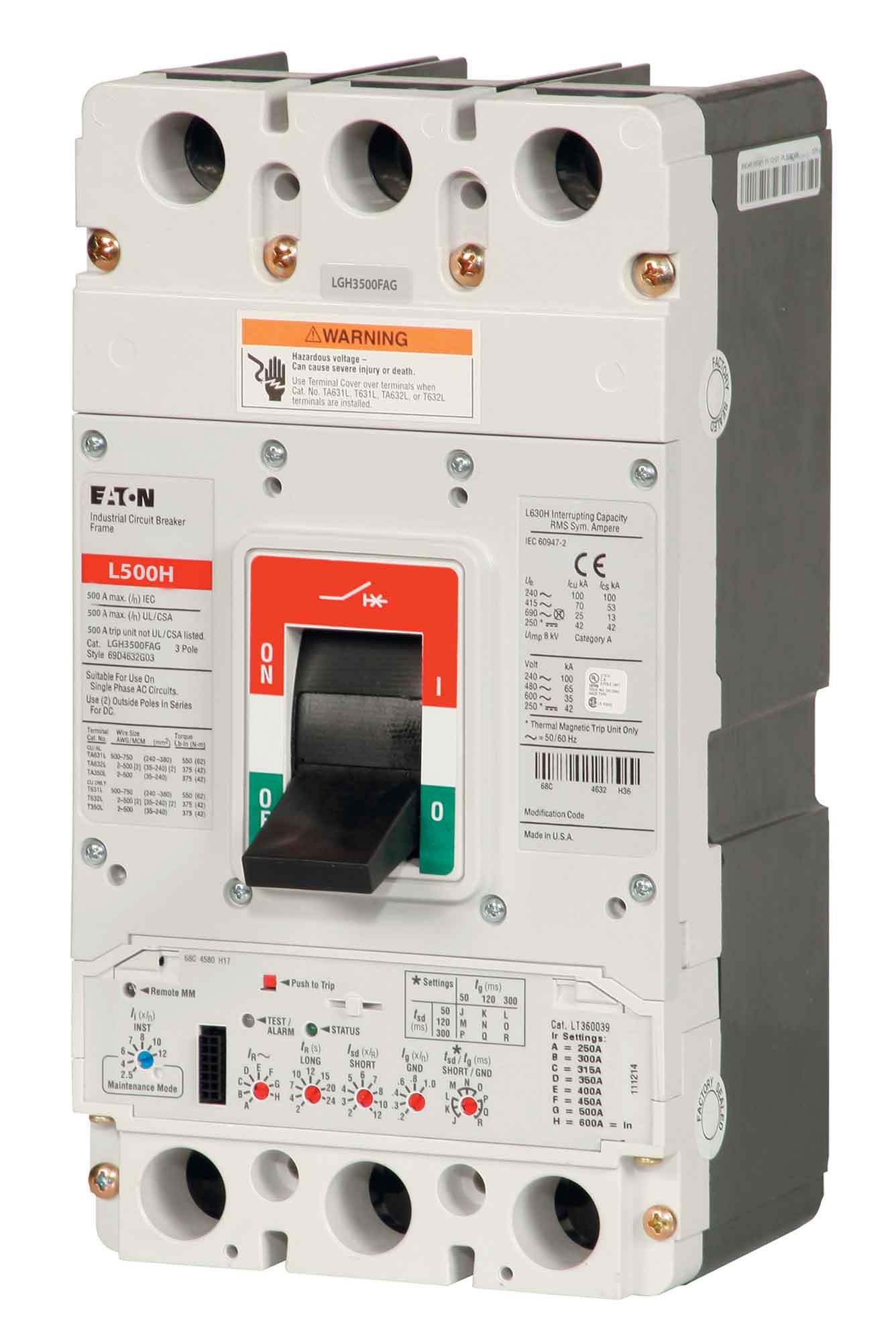

Eaton Series G LGH3500FAG 500 Amp Molded Case Circuit Breaker – 3 Pole – 600V AC – 65 kA @ 480V – LG Frame

The Eaton LGH3500FAG is a Series G, LG-frame molded case circuit breaker featuring fixed thermal and adjustable magnetic trip protection. It is designed for industrial and commercial electrical distribution applications requiring high interrupting capacity.

Specifications

• Brand: Eaton
• Series: Series G
• MPN: LGH3500FAG
• Product Type: Molded Case Circuit Breaker
• Frame: LG
• Type: LGH
• Amperage Rating: 500A
• Poles: 3
• Voltage Rating: 600V AC
• Interrupting Capacity: 100 kA at 240V AC; 70 kA at 415V AC; 65 kA at 480V AC; 35 kA at 600V AC
• Trip Type: Fixed thermal and adjustable magnetic
• Terminals: Line-side and load-side
• Conductor Connection: Metric

Part Numbers & Identification

• Manufacturer Part Number: LGH3500FAG
• UPC:782116142774

Compatibility

Designed for compatible Eaton Series G LG-frame installations requiring a three-pole, 500A circuit breaker with fixed thermal and adjustable magnetic trip protection.
