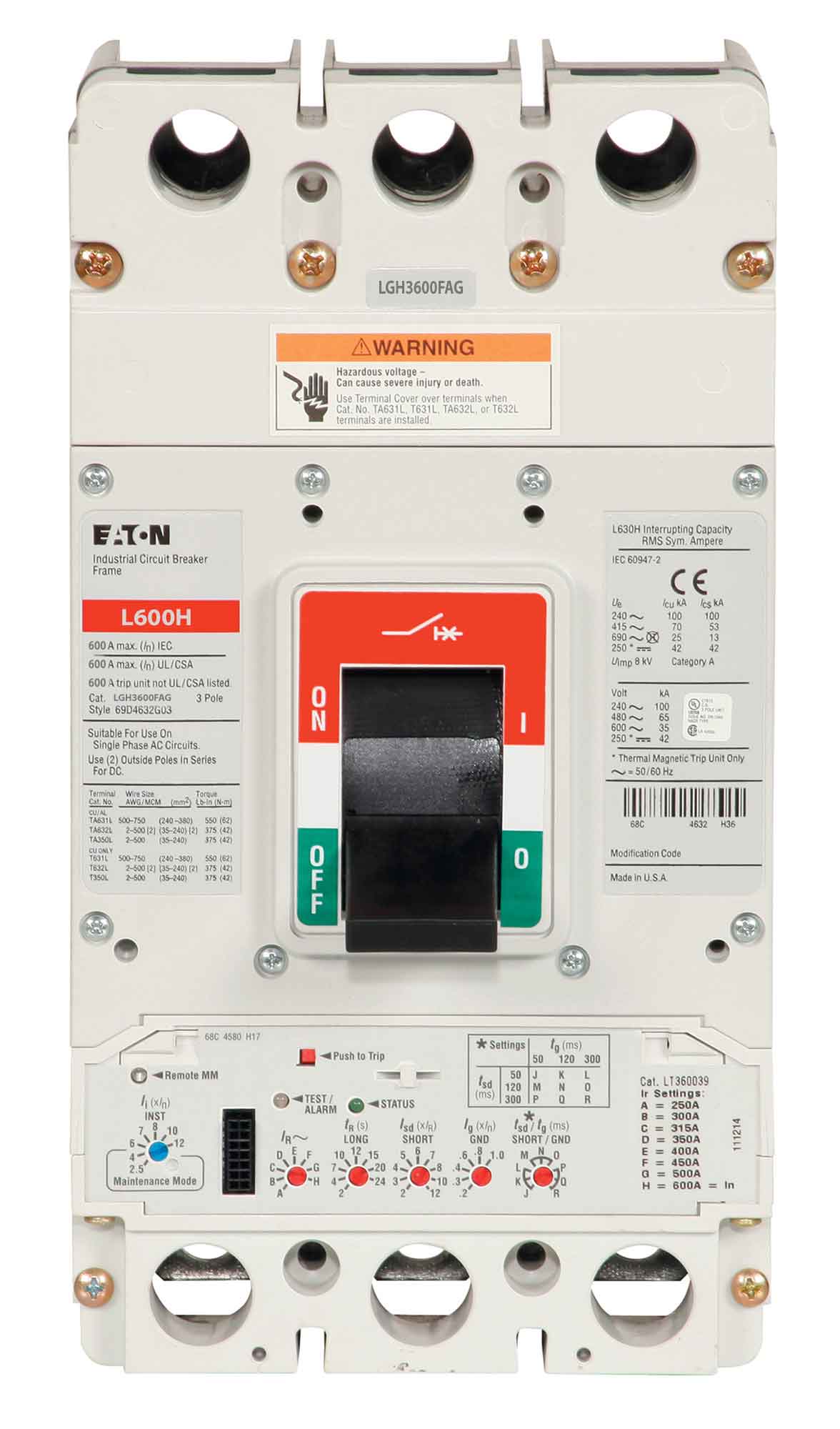

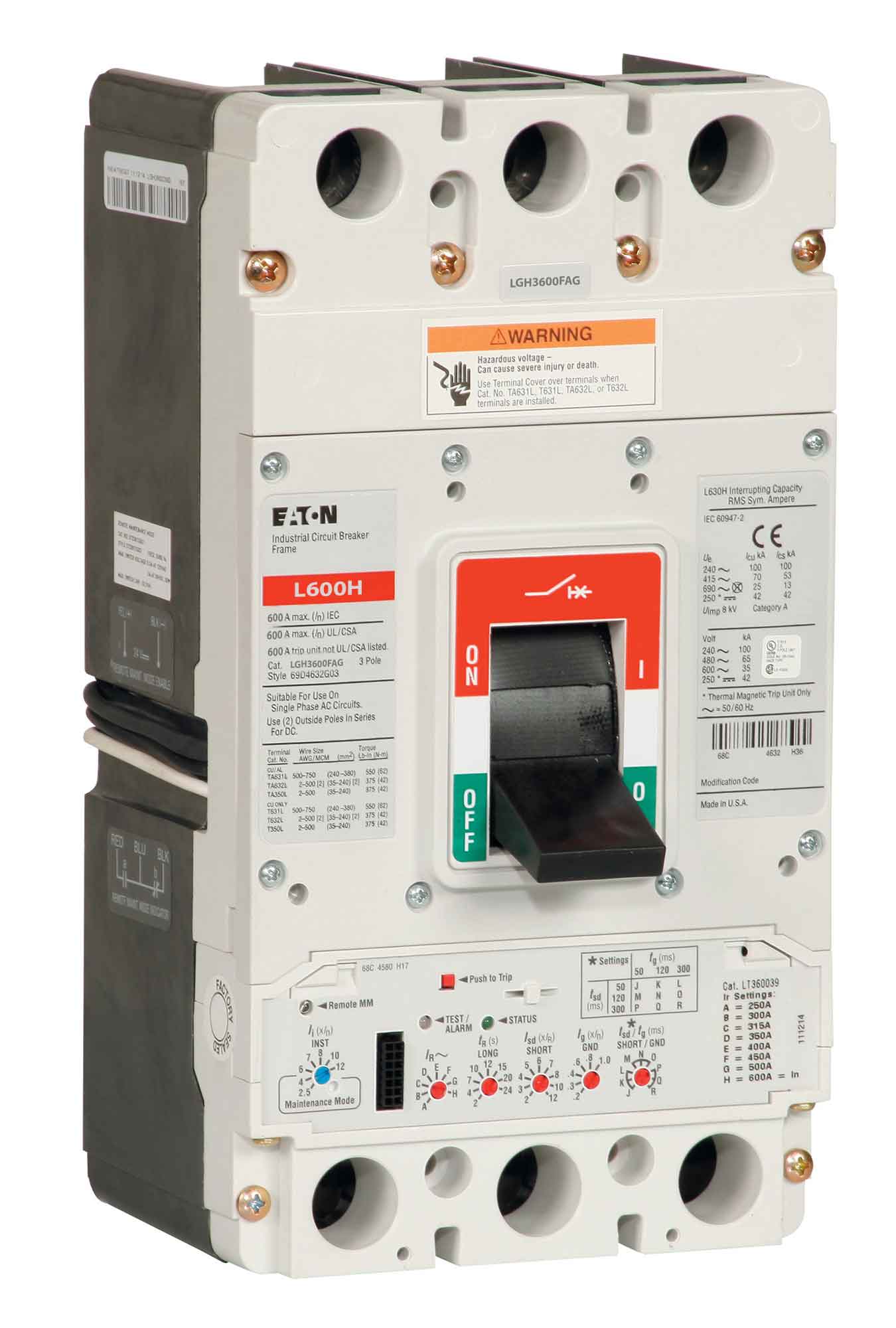

Eaton LGH3600FAG Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V AC – 100kA @ 240V / 70kA @ 415V / 65kA @ 480V / 35kA @ 600V – Line & Load – Series G LG

The Eaton LGH3600FAG is a 600A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series G LG-Frame. It features fixed thermal protection with an adjustable magnetic trip for compatible electrical distribution applications.

The LGH3600FAG is rated for 600V AC and provides multiple interrupting ratings: 100kAIC at 240V AC, 70kAIC at 415V AC, 65kAIC at 480V AC, and 35kAIC at 600V AC. It features line- and load-side connections and is specified with metric configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: LG
• Frame: LG-Frame
• Catalog No.: LGH3600FAG
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Protection Type: Thermal-Magnetic
• Thermal Trip: Fixed
• Magnetic Trip: Adjustable
• Interrupting Rating: 100kAIC @ 240V AC; 70kAIC @ 415V AC; 65kAIC @ 480V AC; 35kAIC @ 600V AC
• Connection: Line and Load
• Configuration: Metric
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGH3600FAG
• Catalog Number: LGH3600FAG
• Model: LGH3600FAG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: LG
• Frame: LG-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• UPC:782116142781

Compatibility:

Designed for use with compatible Eaton Series G LG-Frame electrical distribution equipment that accepts LG Series molded case circuit breakers. The LGH3600FAG provides 600A, 3-pole protection for compatible 600V AC electrical distribution applications.

The breaker features fixed thermal protection, an adjustable magnetic trip, and line- and load-side connections in a metric configuration. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip settings, terminal configuration, and installation requirements before installation.

Certifications:

• Eaton Series G
• LG-Frame
• 600A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 100kAIC @ 240V AC Interrupting Rating
• 70kAIC @ 415V AC Interrupting Rating
• 65kAIC @ 480V AC Interrupting Rating
• 35kAIC @ 600V AC Interrupting Rating
• Fixed Thermal Protection
• Adjustable Magnetic Trip
• Line and Load Connections
• Metric Configuration
