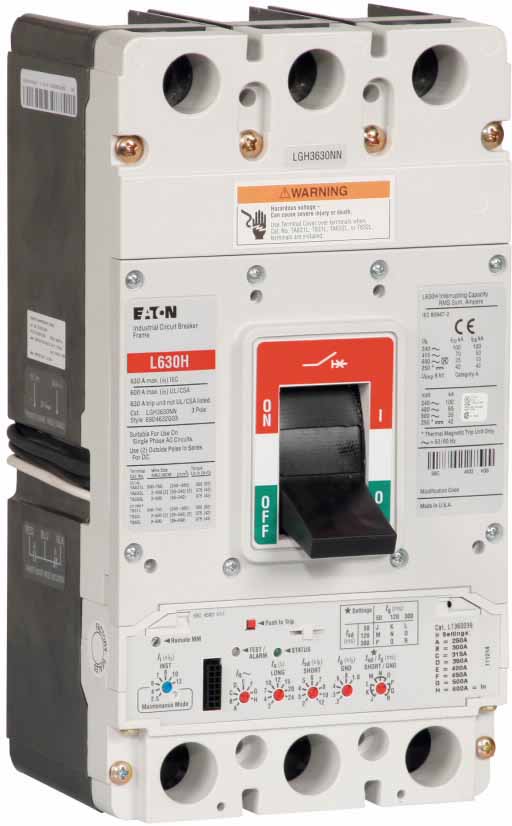

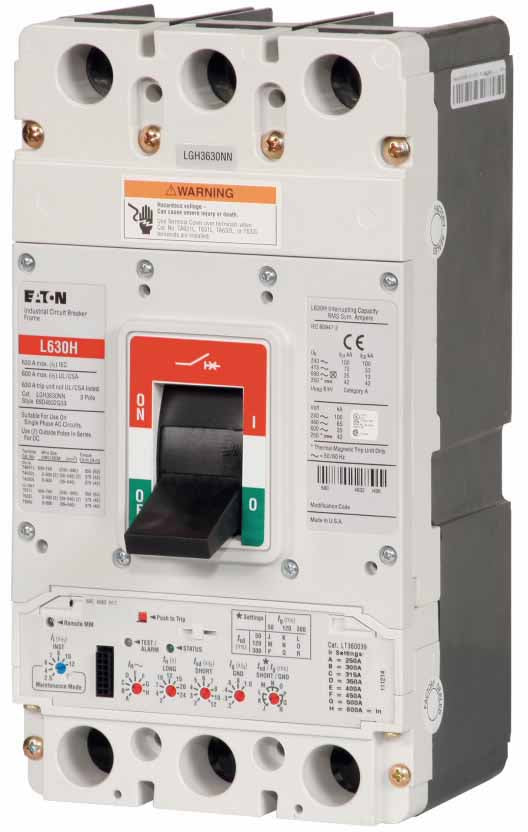

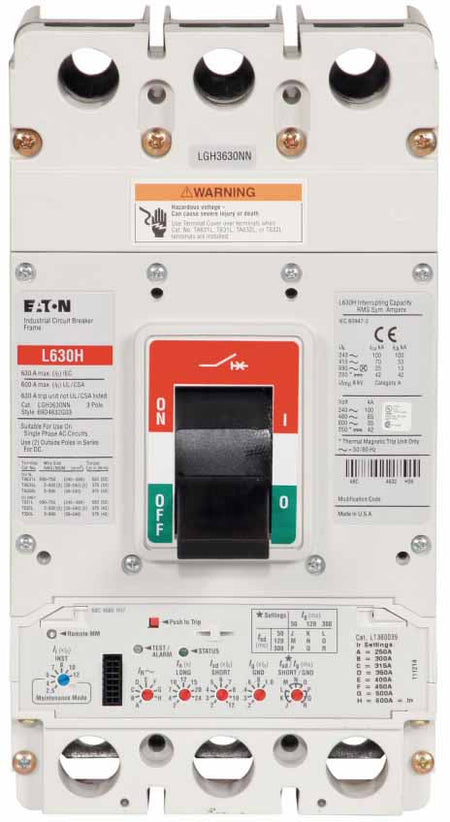

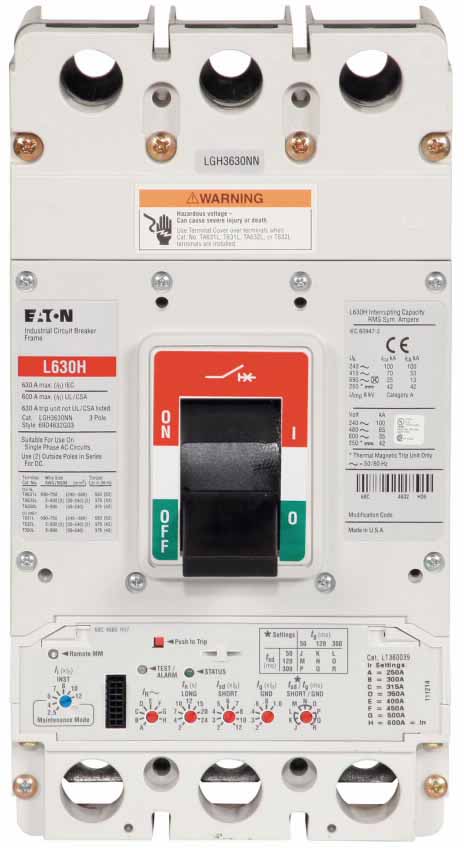

Eaton LGH3630NN Molded Case Circuit Breaker Frame – 630A – 3-Pole – 600V – 100kA @ 240V – Frame Only – Series G

The Eaton LGH3630NN is a 630A, 3-pole molded case circuit breaker frame from the Eaton Series G. It is a frame-only configuration, supplied without a trip unit, and is designed for compatible electrical distribution applications.

The Frame J-K configuration provides interrupting ratings of 100kA at 240V, 70kA at 415V, 65kA at 480V, and 35kA at 600V.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Catalog No.: LGH3630NN
• Product Family: Series G
• Frame: J-K Frame
• Current Rating: 630A
• Number of Poles: 3-Pole
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 240V; 70kA @ 415V; 65kA @ 480V; 35kA @ 600V
• Configuration: Frame Only
• Trip Unit: Not Included
• Application: Electrical Distribution
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGH3630NN
• Catalog Number: LGH3630NN
• Model: LGH3630NN
• Product Family: Eaton Series G
• Series: G
• Frame: J-K
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 630A
• Trip Unit: Not Included
• upc:782116336180

Compatibility:

Designed for use with compatible Eaton Series G electrical distribution equipment supporting the applicable J-K frame configuration. The LGH3630NN is supplied as a frame only and does not include a trip unit.

Always verify the specific breaker frame, compatible trip unit, system voltage, available fault current, pole configuration, accessories, and installation requirements before assembly or installation.

Certifications:

• 630A Rated
• 3-Pole
• 600V Rated
• 100kA @ 240V Interrupting Rating
• 70kA @ 415V Interrupting Rating
• 65kA @ 480V Interrupting Rating
• 35kA @ 600V Interrupting Rating
• Frame J-K
• Series G
• Frame Only
• Trip Unit Not Included
