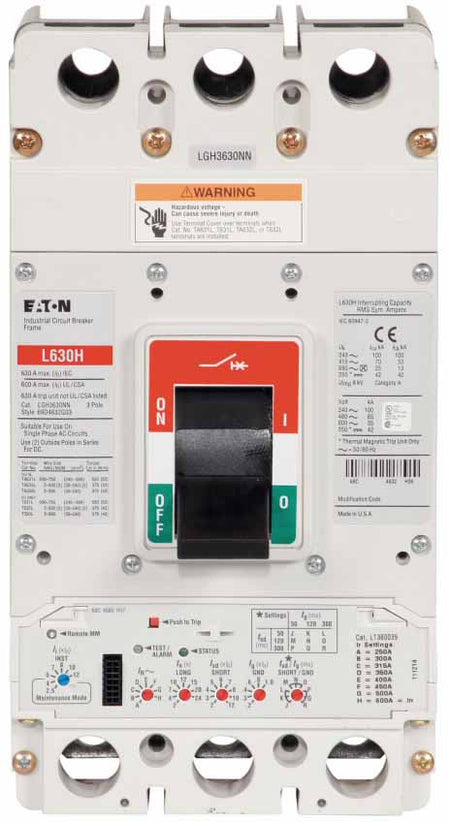

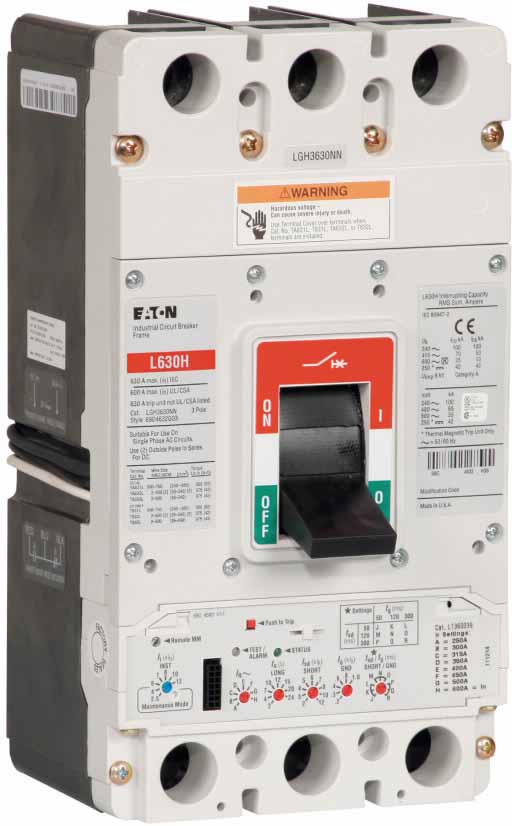

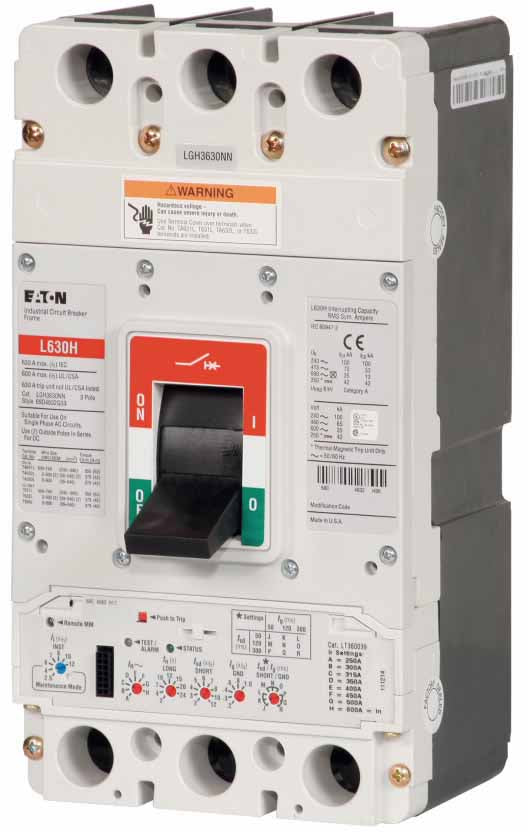

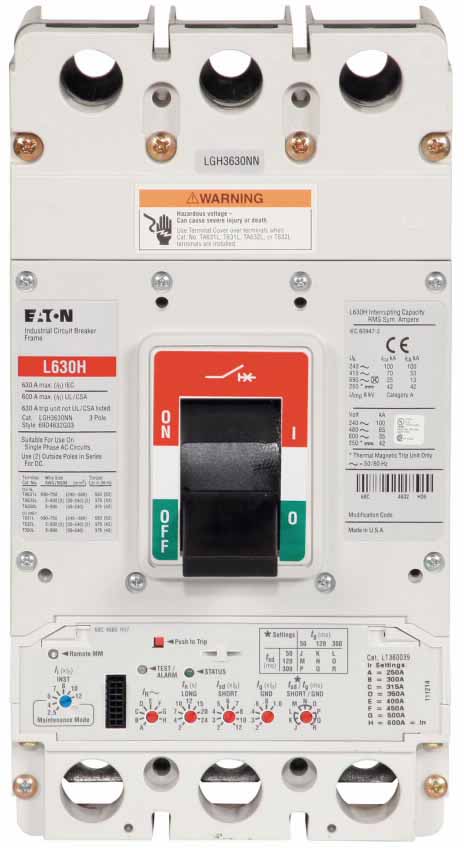

The Eaton LGH3630NN is a 630A, 3-pole molded case circuit breaker accessory frame from the Eaton Series G. This product is supplied as a frame only and does not include a trip unit. It is a J-K frame designed for compatible Eaton molded case circuit breaker applications.

The LGH3630NN provides high interrupting capacity ratings across multiple system voltages, including 100kA @ 240V, 70kA @ 415V, 65kA @ 480V, and 35kA @ 600V.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Catalog No.: LGH3630NN
• Product Family: Series G
• Series: G
• Frame: J-K Frame
• Current Rating: 630A
• Number of Poles: 3-Pole
• Interrupting Rating: 100kA @ 240V; 70kA @ 415V; 65kA @ 480V; 35kA @ 600V
• Configuration: Frame Only
• Trip Unit: Not Included
• Application: Compatible Eaton Molded Case Circuit Breaker Applications
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGH3630NN
• Catalog Number: LGH3630NN
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Frame: J-K Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Model: LGH3630NN
• Configuration: 3-Pole, 630A
• Product Status: Frame Only
• upc:782116336180

Compatibility:

Designed for use with compatible Eaton Series G J-K frame molded case circuit breaker applications. The LGH3630NN is supplied as a frame only, so a compatible trip unit and other required components must be specified separately as applicable.

Always verify the specific Eaton equipment model, frame compatibility, trip-unit requirements, system voltage, available fault current, pole configuration, and installation requirements before installation.

Certifications:

• Series G
• J-K Frame
• 630A Rated
• 3-Pole
• 100kA @ 240V
• 70kA @ 415V
• 65kA @ 480V
• 35kA @ 600V
• Frame Only
• Trip Unit Not Included
