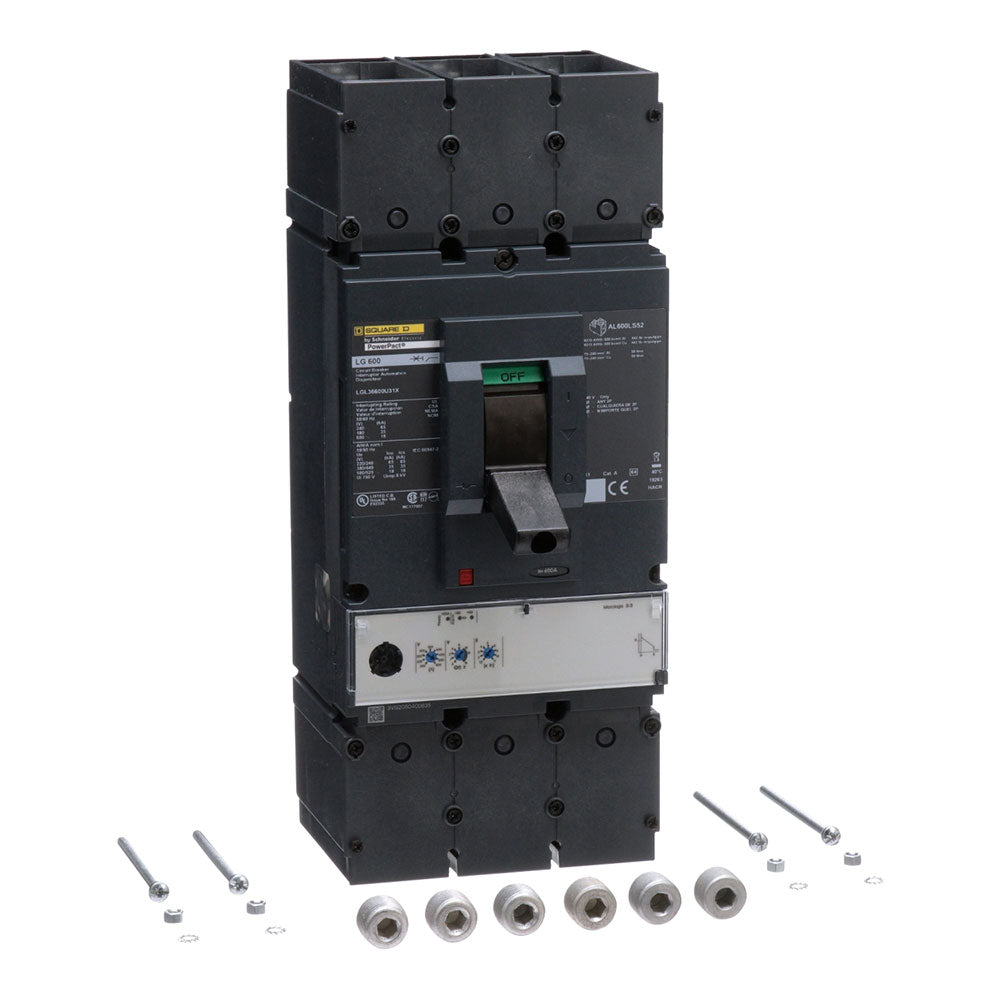

Square D LGL36600U31X Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V – 65kA @ 240V / 35kA @ 480V / 18kA @ 600V – Feed-Thru – PowerPact LGL Series

The Square D LGL36600U31X is a 600A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type LGL Series. It features a solid-state electronic MicroLogic Standard 3.3 trip unit with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides interrupting ratings of 65kA at 240V, 35kA at 480V, and 18kA at 600V. It features high interrupting capacity, a feed-thru configuration, and line- and load-side lug terminals. The breaker is also identified as suitable for 2-pole applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LGL
• Type: LGL
• Catalog No.: LGL36600U31X
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 240V; 35kA @ 480V; 18kA @ 600V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard 3.3
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• 2-Pole Application: Suitable for 2-Pole Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGL36600U31X
• Catalog Number: LGL36600U31X
• Model: LGL36600U31X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LGL
• Type: LGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• Trip Unit: MicroLogic Standard 3.3
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:785901594437

Compatibility:

Designed for use with compatible Square D PowerPact LGL Series electrical distribution equipment that accepts LGL Series molded case circuit breakers. The LGL36600U31X provides 600A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals and is identified as suitable for 2-pole applications. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, pole requirements, trip-unit compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
