Square D LGL36600U33X Molded Case Circuit Breaker – 600A – 3-Pole / 3-Phase – 600V – 65kA @ 240V / 35kA @ 480V / 18kA @ 600V – Feed-Thru – PowerPact LGL Series

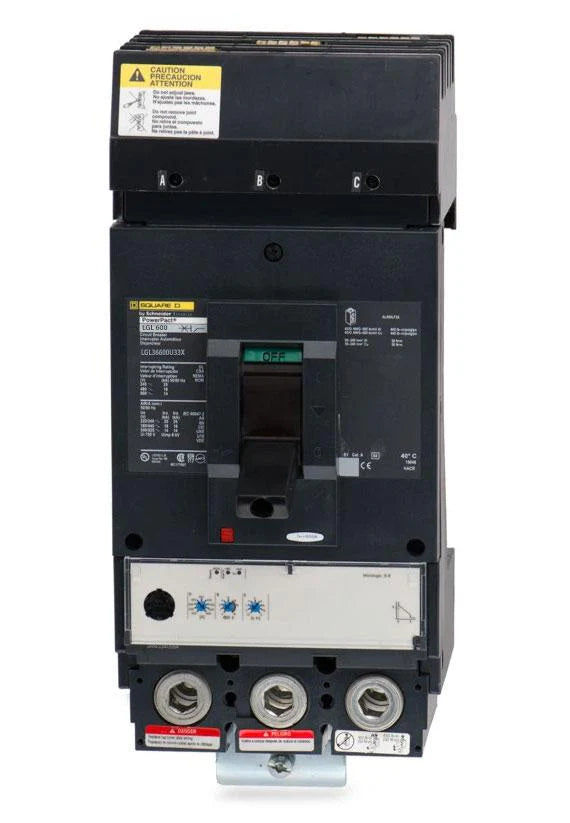

The Square D LGL36600U33X is a 600A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type LGL Series. It features a solid-state electronic MicroLogic Standard 3.3S trip unit with Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 600V and provides interrupting ratings of 65kA at 240V, 35kA at 480V, and 18kA at 600V. It features high interrupting capacity, a feed-thru configuration, and line- and load-side lug terminals. The breaker is also identified as suitable for 2-pole applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LGL
• Type: LGL
• Catalog No.: LGL36600U33X
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 240V; 35kA @ 480V; 18kA @ 600V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard 3.3S
• Trip Functions: Long-Time, Short-Time and Instantaneous (LSI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• 2-Pole Application: Suitable for 2-Pole Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LGL36600U33X
• Catalog Number: LGL36600U33X
• Model: LGL36600U33X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LGL
• Type: LGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• Trip Unit: MicroLogic Standard 3.3S
• Trip Functions: Long-Time, Short-Time and Instantaneous (LSI)
• UPC:785901638674

Compatibility:

Designed for use with compatible Square D PowerPact LGL Series electrical distribution equipment that accepts LGL Series molded case circuit breakers. The LGL36600U33X provides 600A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, line- and load-side lug terminals, and is identified as suitable for 2-pole applications.

Certifications:

• UL Listed
• PowerPact LGL Series
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 240V Interrupting Rating
• 35kA @ 480V Interrupting Rating
• 18kA @ 600V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Trip Unit
• MicroLogic Standard 3.3S
• Long-Time, Short-Time and Instantaneous (LSI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for 2-Pole Applications
