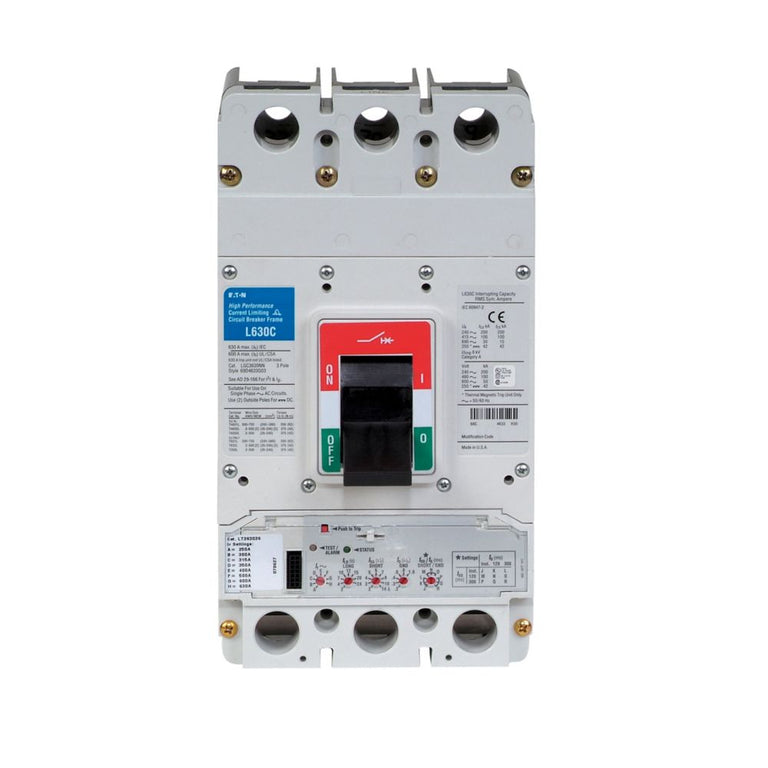

Eaton LGS360036G 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC – 25 kAIC@600 V – Electronic LSIG Trip – Series G

The Eaton LGS360036G is a 600 Amp, 3-pole electronic molded case circuit breaker from the Eaton / Cutler-Hammer Series G, LG-frame product family. It is rated for 600 V AC and features a Digitrip 310 RMS electronic trip unit with LSIG (Long-Time, Short-Time, Instantaneous, and Ground-Fault) protection functions. The breaker provides interrupting ratings of 85 kAIC at 240 V AC, 50 kAIC at 415/480 V AC, and 25 kAIC at 600 V AC. This complete breaker supports line- and load-side connections and uses a metric terminal system.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series G
• Frame: LG Frame
• Catalog Number / MPN: LGS360036G
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V AC
• Interrupting Rating: 85 kAIC @ 240 V AC; 50 kAIC @ 415/480 V AC; 25 kAIC @ 600 V AC
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Assembly: Complete Breaker
• Connection: Line and Load
• Terminal System: Metric

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: LGS360036G
• Series: Series G
• Frame: LG Frame
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSIG – Long-Time, Short-Time, Instantaneous, and Ground-Fault
• Terminal System: Metric
• UPC:782116994496

Compatibility

The Eaton LGS360036G is designed for compatible Eaton Series G LG-frame electrical distribution applications requiring electronic LSIG overcurrent and ground-fault protection.
