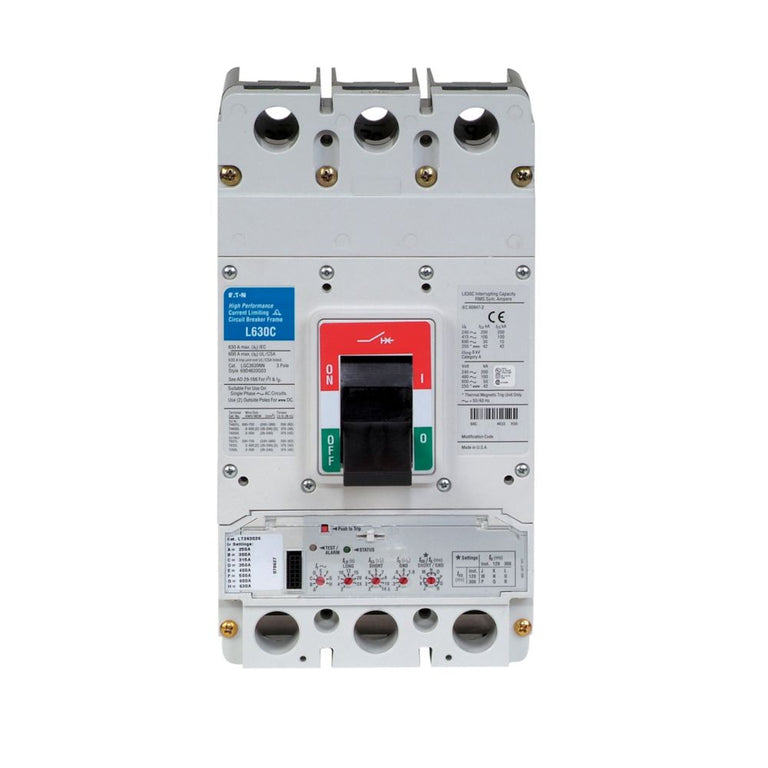

Eaton Cutler-Hammer LGS363033G 630 Amp Electronic Molded Case Circuit Breaker – 3 Pole – 600 Vac – 85 kAIC at 240 Vac – Digitrip 310 RMS – Series G

The Eaton Cutler-Hammer LGS363033G is a complete electronic molded case circuit breaker from Eaton’s Series G product family, featuring an LG frame and Digitrip 310 RMS electronic trip technology. Rated at 630 Amps with a three-pole configuration, this breaker provides electronic LS protection for compatible electrical distribution systems. It offers interrupting ratings of 85 kAIC at 240 Vac, 50 kAIC at 415/480 Vac, and 25 kAIC at 600 Vac, with line and load connections and metric terminal specifications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Electronic Molded Case Circuit Breaker
• Product Series: Series G
• Frame Type: LG Frame
• Breaker Type: Complete Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Type: Electronic LS
• Current Rating: 630 Amp
• Poles / Configuration: 3 Pole
• Rated Voltage: 600 Vac
• Interrupting Rating at 240 Vac: 85 kAIC
• Interrupting Rating at 415/480 Vac: 50 kAIC
• Interrupting Rating at 600 Vac: 25 kAIC
• Terminal Configuration: Line and Load
• Terminal Specification: Metric
• Catalog Number / MPN: LGS363033G

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: LGS363033G
• Product Family: Series G
• Frame Designation: LG
• Current Rating: 630 A
• Pole Count: 3 Pole
• Trip Unit: Digitrip 310 RMS
• Trip Mechanism: Electronic LS
• Voltage Rating: 600 Vac
• Product Type: Electronic Molded Case Circuit Breaker
• UPC:786679312223

Compatibility

The Eaton LGS363033G is intended for compatible Series G LG-frame electrical distribution systems requiring a three-pole, 630 Amp electronic molded case circuit breaker with LS protection.

Certifications

• UL Listed
