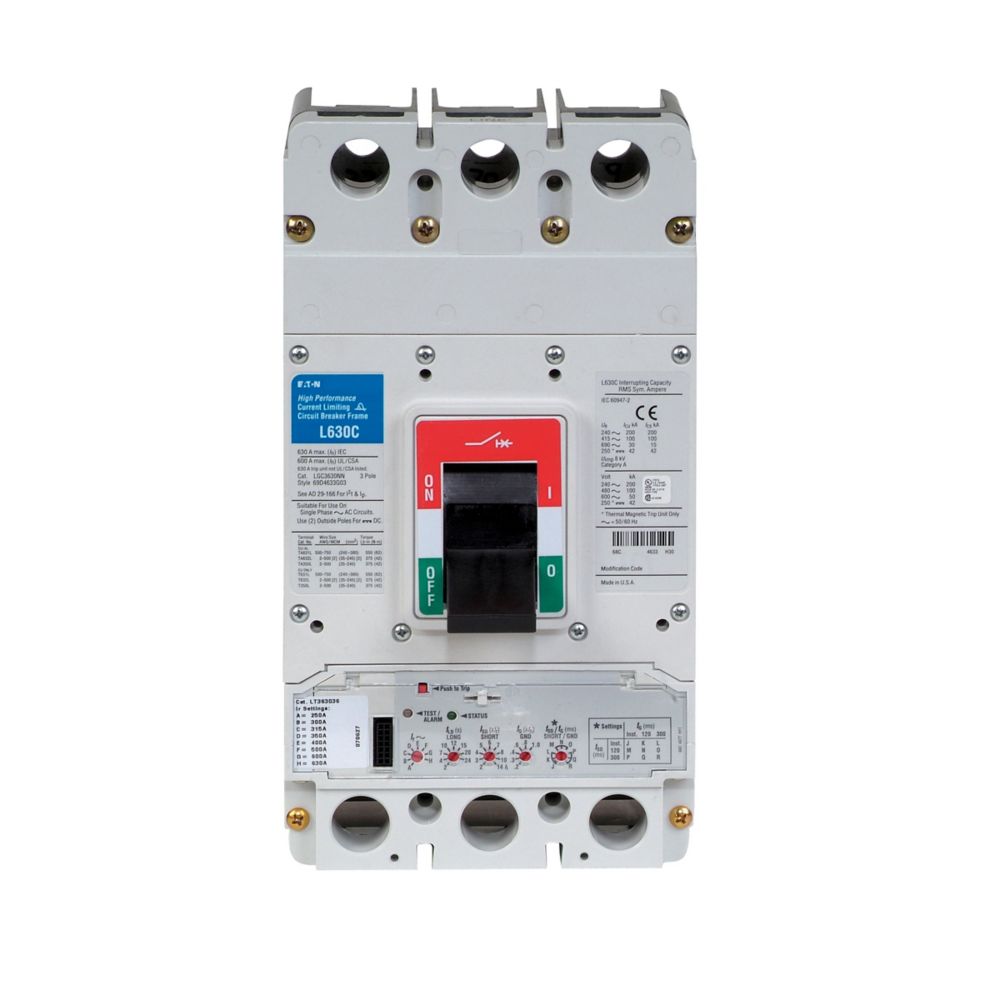

Eaton Cutler-Hammer LGS3630AAG 630 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 85 kAIC at 240 Vac – Series G

The Eaton Cutler-Hammer LGS3630AAG is a complete molded case circuit breaker from Eaton’s Series G product family, featuring an LG frame and adjustable thermal-magnetic trip protection. Rated at 630 Amps with a three-pole configuration, it is designed for electrical distribution and industrial power protection applications. The breaker provides multiple interrupting ratings according to operating voltage and includes line and load terminal connections with metric specifications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Series: Series G
• Frame Type: LG Frame
• Breaker Type: Complete Breaker
• Trip Type: Adjustable Thermal-Magnetic
• Current Rating: 630 Amp
• Poles / Configuration: 3 Pole
• Rated Voltage: 600 Vac
• Interrupting Rating at 240 Vac: 85 kAIC
• Interrupting Rating at 415/480 Vac: 50 kAIC
• Interrupting Rating at 600 Vac: 25 kAIC
• Terminal Configuration: Line and Load
• Terminal Specification: Metric
• Catalog Number / MPN: LGS3630AAG

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: LGS3630AAG
• Product Family: Series G
• Frame Designation: LG
• Current Rating: 630 A
• Pole Count: 3 Pole
• Trip Mechanism: Adjustable Thermal-Magnetic
• Voltage Rating: 600 Vac
• Product Type: Molded Case Circuit Breaker
• UPC:782116120512

Compatibility

The Eaton LGS3630AAG is intended for compatible Series G LG-frame electrical distribution systems requiring a three-pole, 630 Amp molded case circuit breaker.

Certifications

• UL Listed
