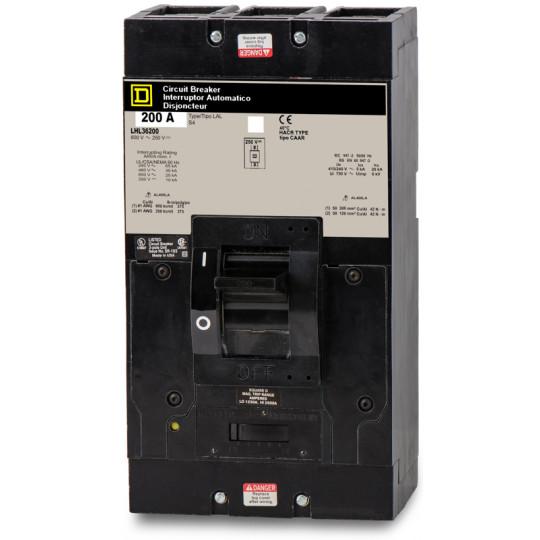

Square D LHL36200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact LHL Series

The Square D LHL36200 is a 200A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D PowerPact Type LHL Series. It is designed for compatible electrical distribution applications and provides overcurrent protection with Long-Time and Instantaneous (LI) trip functions.

The LHL36200 is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, a complete breaker assembly, and line- and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LHL
• Type: LHL
• Catalog No.: LHL36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LHL36200
• Catalog Number: LHL36200
• Model: LHL36200
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LHL
• Type: LHL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:785901082125

Compatibility:

Designed for use with compatible Square D PowerPact LHL Series electrical distribution equipment that accepts LHL Series molded case circuit breakers. The LHL36200 provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, complete breaker assembly, LI trip functions, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact LHL Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Complete Breaker
• Line- and Load-Side Lug Terminals
