Product Description – Square D LHL36250

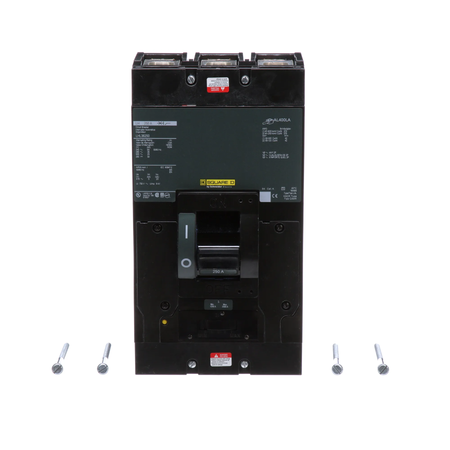

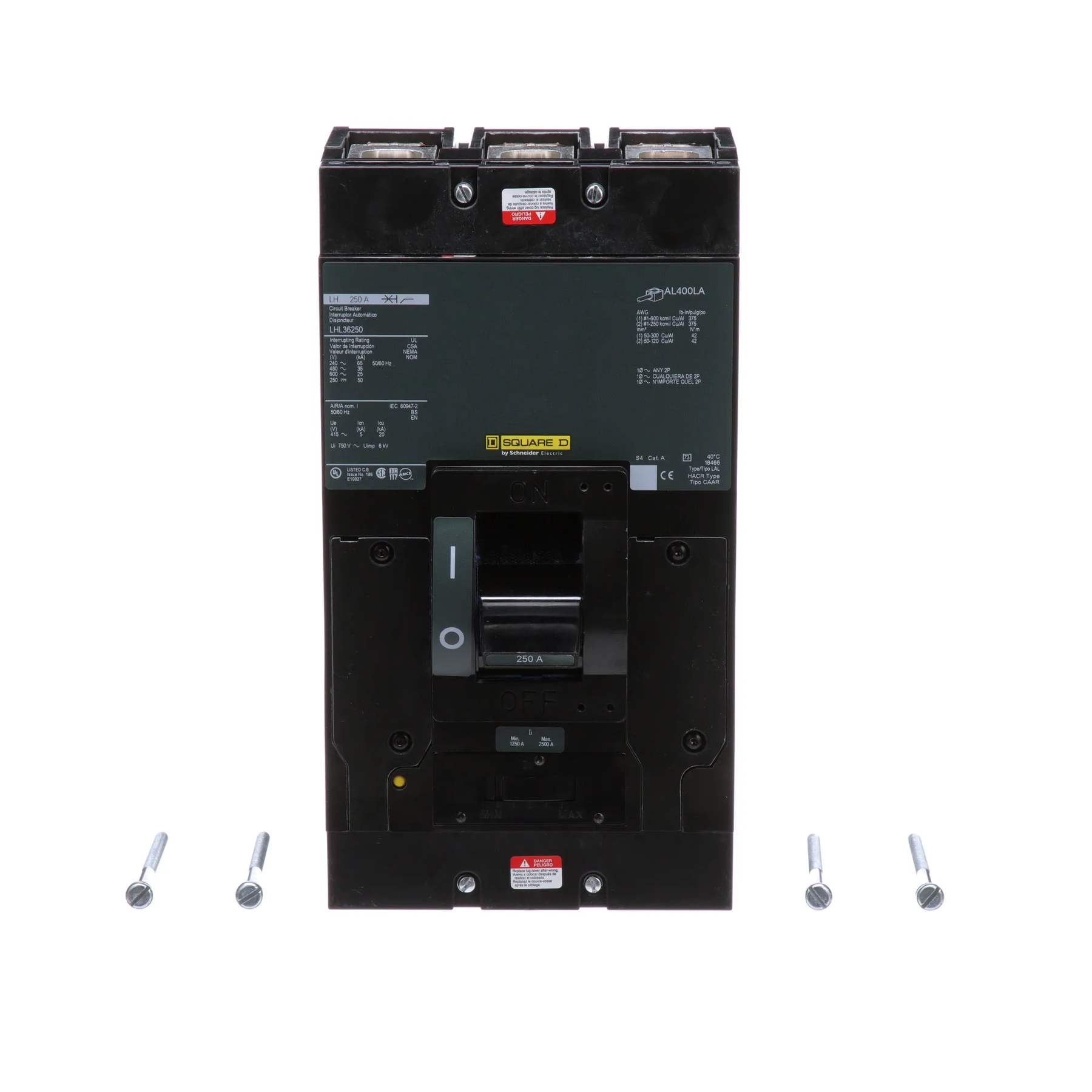

The Square D LHL36250 is a 250 A, 3-pole molded case circuit breaker designed for commercial and industrial electrical applications. It provides thermal-magnetic protection with long-time and instantaneous trip functions. Rated for 600 V AC, this unit-mount breaker features high interrupting capacities of 35 kA at 480 V, 25 kA at 600 V, and 65 kA at 240 V, ensuring reliable protection in demanding electrical systems.

Key Features

• Catalog Number: LHL36250

• Manufacturer: Square D (Schneider Electric)

• Series / Type: LHL Series Molded Case Circuit Breaker

• Amperage: 250 A

• Voltage Rating: 600 V AC

• Poles: 3-Pole

• Interrupting Capacity: 35 kA @ 480 V, 25 kA @ 600 V, 65 kA @ 240 V

• Mounting Type: Unit-Mount

• Trip Function: Thermal-Magnetic (LI)

• Panel Compatibility: LHL Series Panelboards

• Certifications: UL, CSA

Technical Specifications

Electrical

• Current Rating: 250 A

• Voltage Rating: 600 V AC

• Poles: 3

• Interrupting Rating: 35 kA @ 480 V, 25 kA @ 600 V, 65 kA @ 240 V

• Trip Type: Thermal-Magnetic (LI)

Construction & Connections

• Style: Unit-Mount

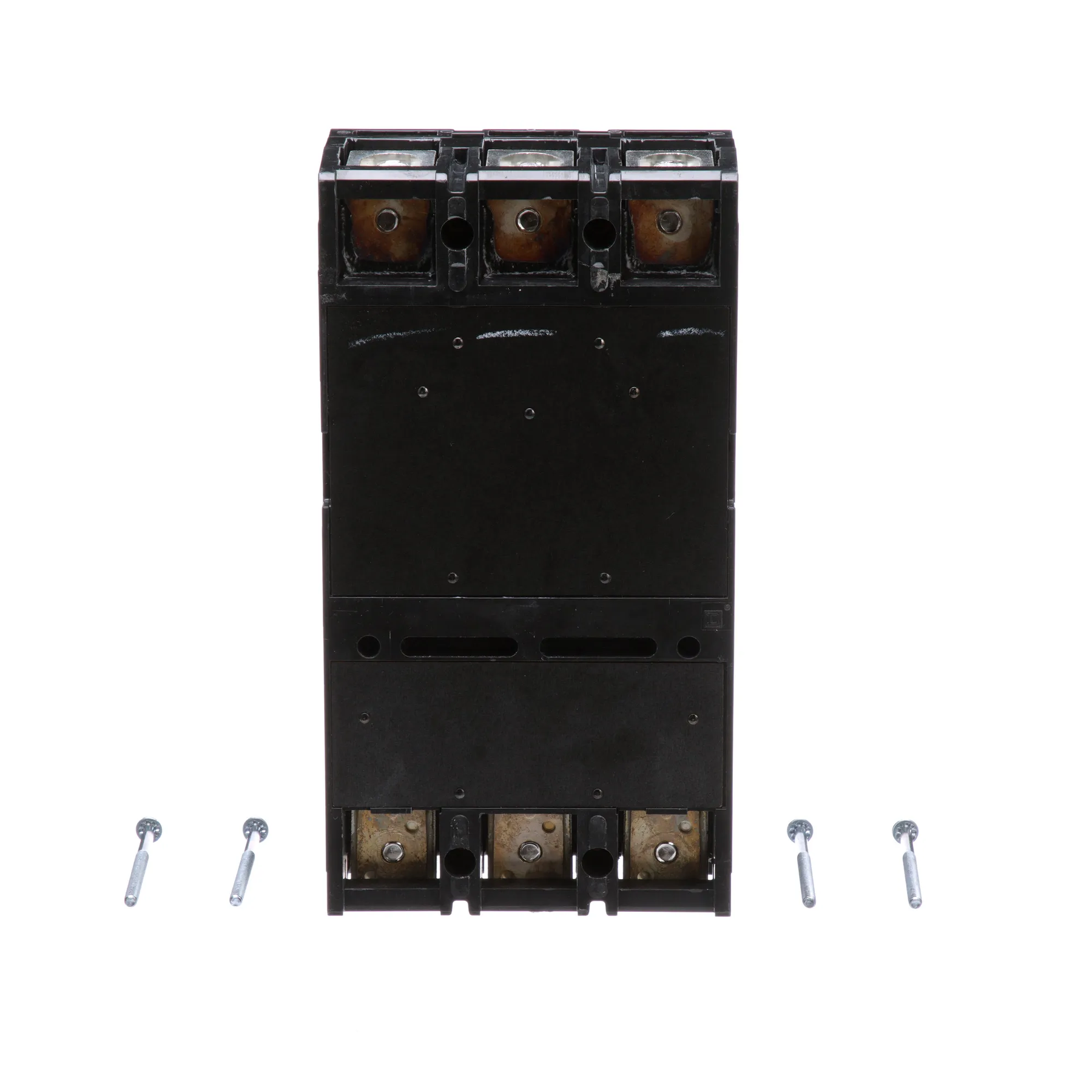

• Terminal Connection: Lugs for copper/aluminum conductors

• Frame Type: LHL

• Actuator: Toggle handle

Physical

• Weight: ~15 lb (6.8 kg)

• Dimensions: 11″ (H) × 6″ (W) × 5.84″ (D)

• Operating Temperature: 40 °C rating

Product Data

• UPC:

• GTIN: 00785901426320

• Country of Origin: Mexico

• Standards & Certifications: UL Listed, CSA Certified

• Panel Type: LHL Series Panelboards

• Frame / Category: Molded Case Circuit Breaker – LHL Series
