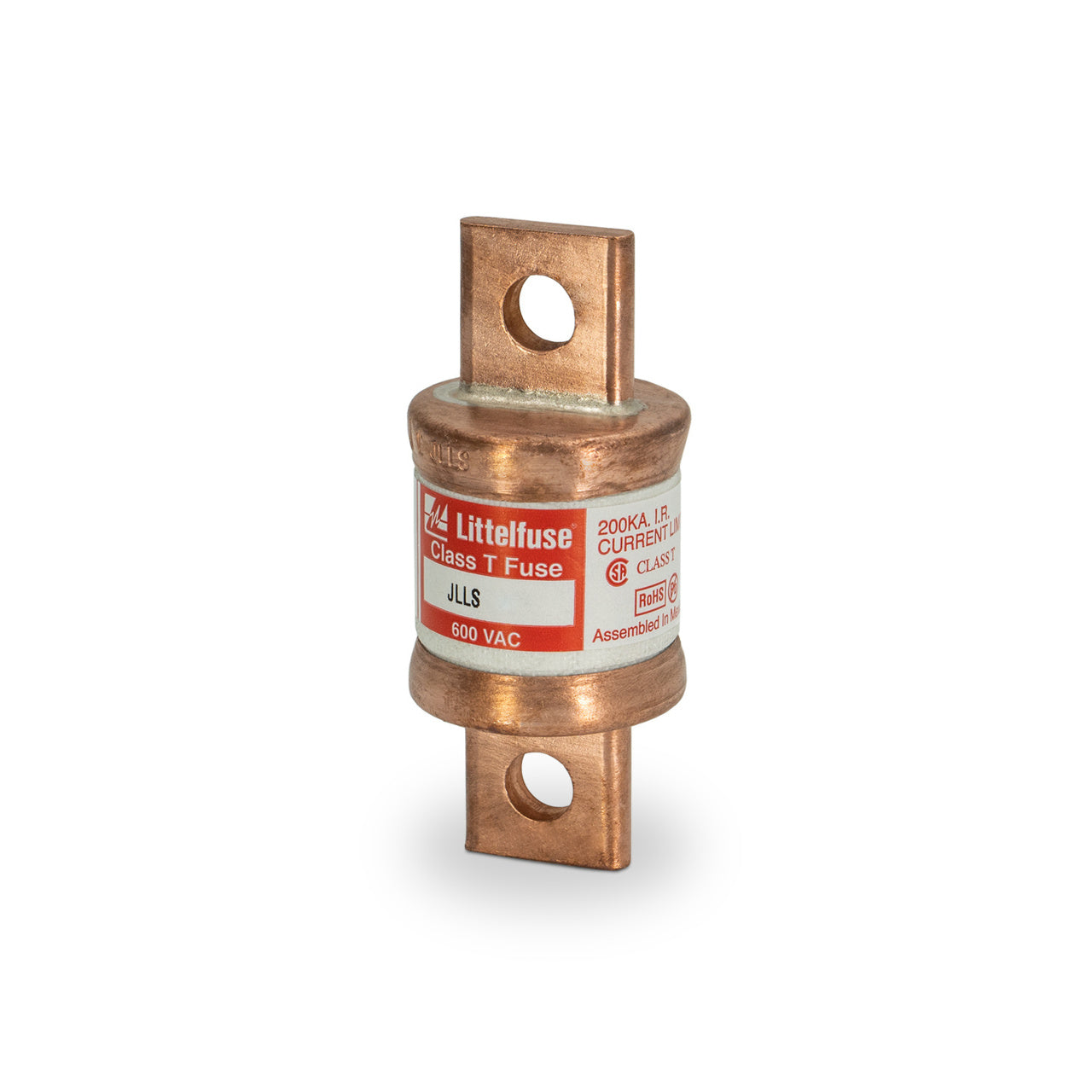

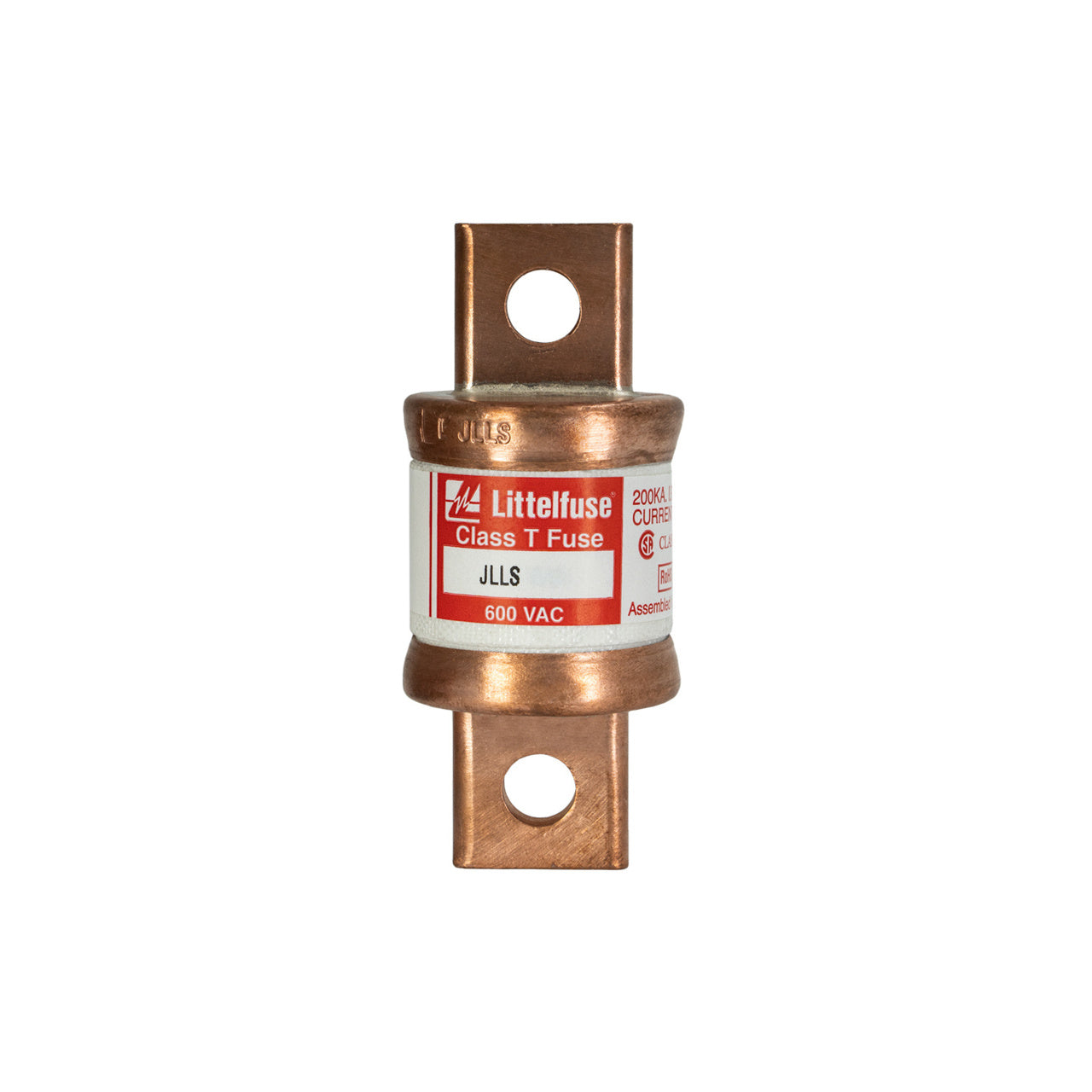

Littelfuse JLLS225 Class T Fuse – 225A – 600V Fast-Acting Current-Limiting Fuse

In stock
SKU: JLLS225 GTIN/UPC: 07945819089
$123.20
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Littelfuse JLLS225 is a 225 Amp Class T fast-acting fuse engineered for superior protection in industrial and commercial electrical distribution systems. Part of the JLLS series, this current-limiting fuse provides extremely fast fault interruption to reduce let-through energy and protect electrical equipment from damaging short-circuit currents. Its compact knife-blade/bolt-in construction makes it ideal for applications requiring high interrupting capacity and space-efficient installation.

Electrical Rating

  • Current Rating: 225 Amps
  • Maximum AC Voltage: 600 VAC
  • Maximum DC Voltage: 300 VDC
  • Interrupting Rating:
    • 200 kA AC
    • 20 kA DC @ 300 VDC

Key Specifications

  • Manufacturer: Littelfuse
  • Catalog Number: JLLS225
  • Series: JLLS
  • Fuse Class: Class T
  • Construction Type: Knife-Blade / Bolt-In
  • Fuse Type: Fast-Acting Current-Limiting
  • Indicating: No

Protection Characteristics

  • Fast-acting operation for immediate fault clearing
  • Current-limiting design minimizes let-through current and energy
  • Provides exceptional short-circuit protection
  • High interrupting capacity for demanding industrial applications
  • Helps protect sensitive electrical and electronic equipment from fault damage

Construction Features

  • Compact Class T fuse design
  • Knife-blade/bolt-in terminal construction
  • Non-indicating fuse configuration
  • Industrial-duty construction for reliable long-term performance

Mounting & Compatibility

  • Mounting Method: Fuse Block / Holder / Bolt-In Mounting
  • Compatible with Class T fuse blocks and fuse holders
  • Suitable for switchboards, panelboards, UPS systems, battery systems, and industrial distribution equipment

Applications

  • Industrial power distribution systems
  • UPS and battery backup systems
  • Switchboards and panelboards
  • Motor control centers
  • Current-limiting feeder and branch circuit protection
  • Protection of sensitive electrical and electronic equipment

Product Data

  • Manufacturer: Littelfuse
  • Catalog Number: JLLS225
  • Product Type: Fast-Acting Current-Limiting Fuse
  • Series: JLLS
  • Fuse Class: Class T
  • Type Fuses
  • Vendor Littelfuse
  • Brand Littelfuse
