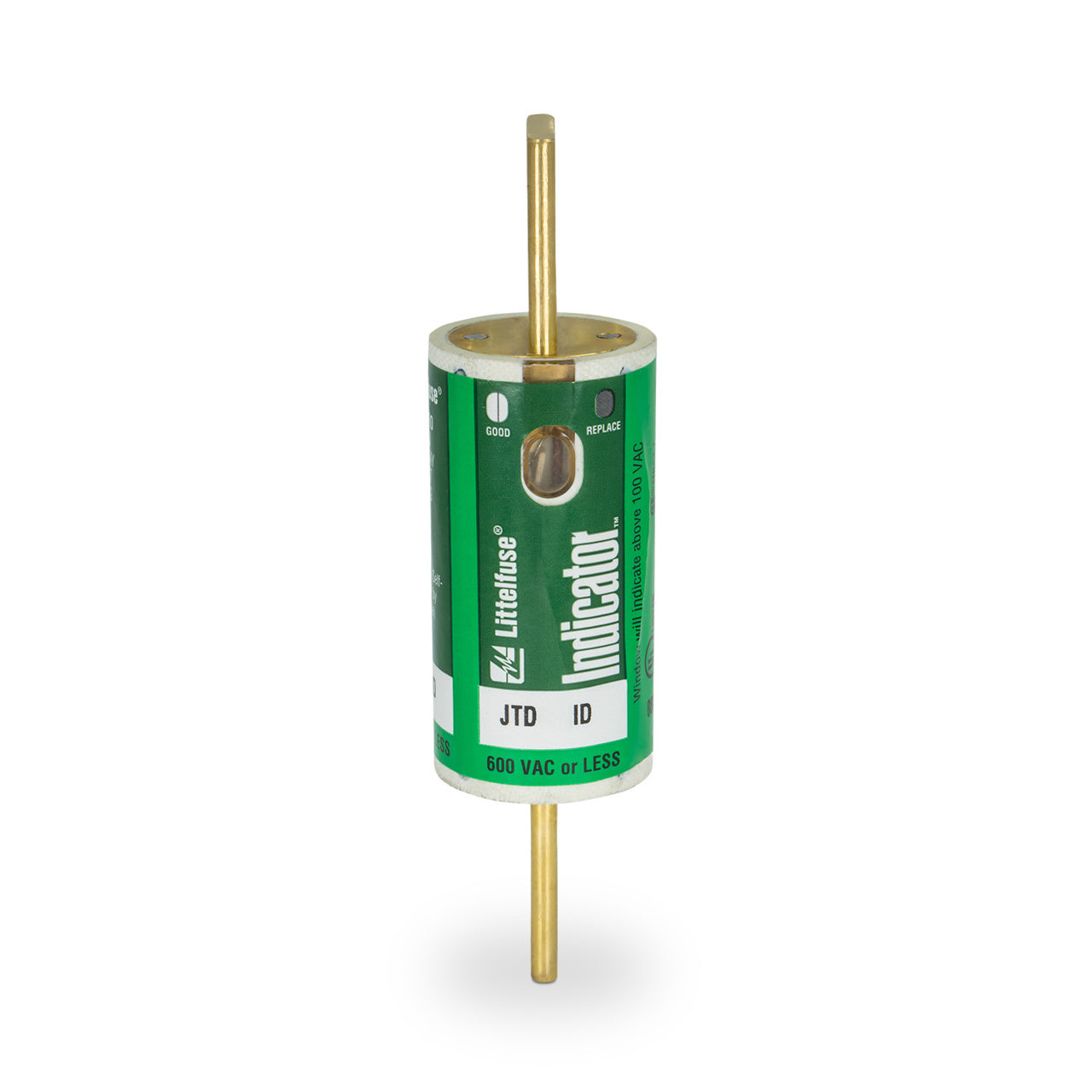

Littelfuse JTD125ID Class J Fuse – 125A – 600V Time-Delay Indicating Fuse
Couldn't load pickup availability
Ask an expert
The Littelfuse JTD125ID is a 125 Amp Class J time-delay fuse designed for superior overcurrent and short-circuit protection in industrial and commercial electrical systems. Part of the JTD_ID series, this POWR-PRO® fuse incorporates a time-delay characteristic that allows temporary motor-starting and transformer inrush currents to pass without nuisance opening. The built-in blown-fuse indicator provides quick visual identification of an open fuse, reducing troubleshooting time and simplifying maintenance.
Electrical Rating
- Current Rating: 125 Amps
- Maximum AC Voltage: 600 VAC
- Maximum DC Voltage: 500 VDC
- Interrupting Rating:
- 200 kA AC
- 20 kA DC @ 500 VDC
Key Specifications
- Manufacturer: Littelfuse
- Catalog Number: JTD125ID
- Series: JTD_ID
- Fuse Class: Class J
- Construction Type: Knife-Blade
- Fuse Type: Time-Delay (Slo-Blo)
- Family: POWR-PRO® Fuse
- Indicating: Yes
Protection Characteristics
- Time-delay design accommodates temporary motor starting and transformer inrush currents
- Provides reliable overload and short-circuit protection
- Reduces nuisance fuse openings in inductive load applications
- Current-limiting performance minimizes let-through energy during fault conditions
- High interrupting capacity for demanding industrial power systems
- Visual blown-fuse indication simplifies maintenance and troubleshooting
Construction Features
- Compact Class J fuse design
- Knife-blade terminal construction
- Built-in blown-fuse indicator
- Industrial-grade construction for long service life
- Designed for high-performance power distribution applications
Mounting & Compatibility
- Mounting Method: Fuse Block / Holder
- Compatible with standard Class J fuse holders and fuse blocks
- Suitable for switchboards, panelboards, motor control centers, and industrial distribution equipment
Applications
- Motor circuits
- Industrial power distribution systems
- Switchboards and panelboards
- Motor control centers
- Transformers and inductive loads
- Branch and feeder circuit protection
- Commercial and industrial electrical systems
Product Data
- Manufacturer: Littelfuse
- Catalog Number: JTD125ID
- Product Type: Time-Delay Indicating Fuse
- Series: JTD_ID
- Fuse Class: Class J
- Family: POWR-PRO® Fuse
- Type Fuses
- Vendor Littelfuse
- Brand Littelfuse
