Littelfuse

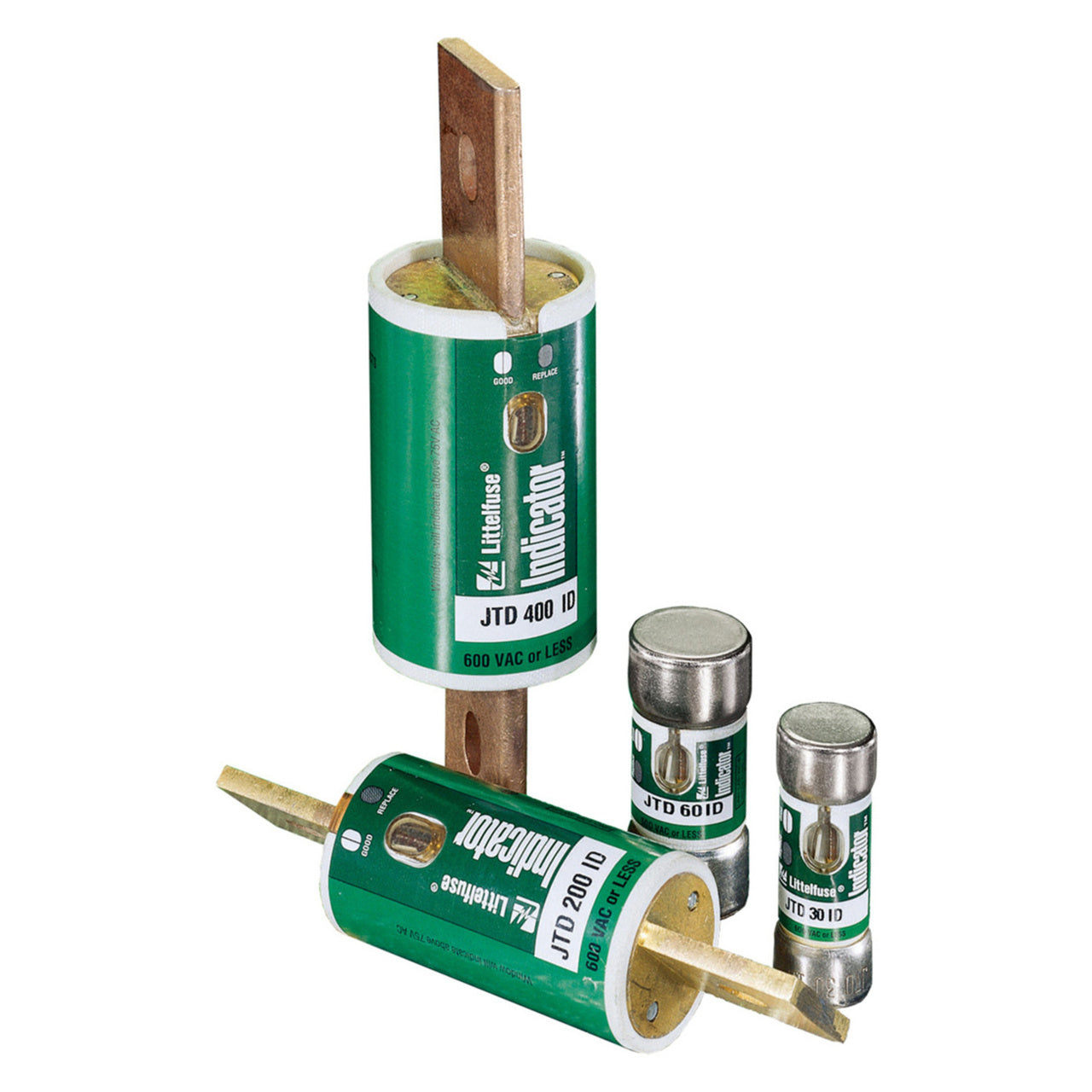

Littelfuse JTD175ID Class J Fuse – 175A – 600V Time-Delay Indicating Fuse

In stock
SKU: JTD175ID GTIN/UPC: 07945803184
$99.40
CONDITION
Need Reconditioned? Get Price by Calling
Call Us
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Littelfuse JTD175ID is a 175 Amp Class J time-delay fuse designed for reliable overcurrent and short-circuit protection in industrial and commercial electrical systems. Part of the JTD_ID series, this POWR-PRO® fuse allows temporary inrush currents from motors and transformers to pass without nuisance opening, while still responding quickly under fault conditions. The built-in indicating feature provides clear visual confirmation of a blown fuse, helping speed up troubleshooting and maintenance.

Electrical Rating

  • Current Rating: 175 Amps
  • Maximum AC Voltage: 600 VAC

Key Specifications

  • Manufacturer: Littelfuse
  • Catalog Number: JTD175ID
  • Series: JTD_ID
  • Fuse Class: Class J
  • Construction Type: Knife-Blade
  • Fuse Type: Time-Delay (Slo-Blo)
  • Family: POWR-PRO® Fuse
  • Indicating: Yes

Protection Characteristics

  • Time-delay operation accommodates motor starting and transformer inrush currents
  • Reliable overload and short-circuit protection
  • Reduces nuisance fuse operation in inductive loads
  • Current-limiting design helps reduce let-through energy during faults
  • High interrupting capacity suitable for industrial systems
  • Visual blown-fuse indicator improves maintenance efficiency

Construction Features

  • Compact Class J knife-blade design
  • Built-in fuse status indication window/feature
  • Rugged industrial construction for long service life
  • Designed for demanding electrical distribution environments

Mounting & Compatibility

  • Mounting Method: Fuse Block / Holder
  • Compatible with standard Class J fuse holders and blocks
  • Suitable for switchboards, panelboards, motor control centers, and industrial distribution systems

Applications

  • Motor control circuits
  • Industrial power distribution systems
  • Switchboards and panelboards
  • Motor control centers (MCCs)
  • Transformers and inductive loads
  • Branch and feeder circuit protection

Product Data

  • Manufacturer: Littelfuse
  • Catalog Number: JTD175ID
  • Product Type: Time-Delay Indicating Fuse
  • Series: JTD_ID
  • Fuse Class: Class J
  • Family: POWR-PRO® Fuse
  • Type Fuses
  • Vendor Littelfuse
  • Brand Littelfuse
