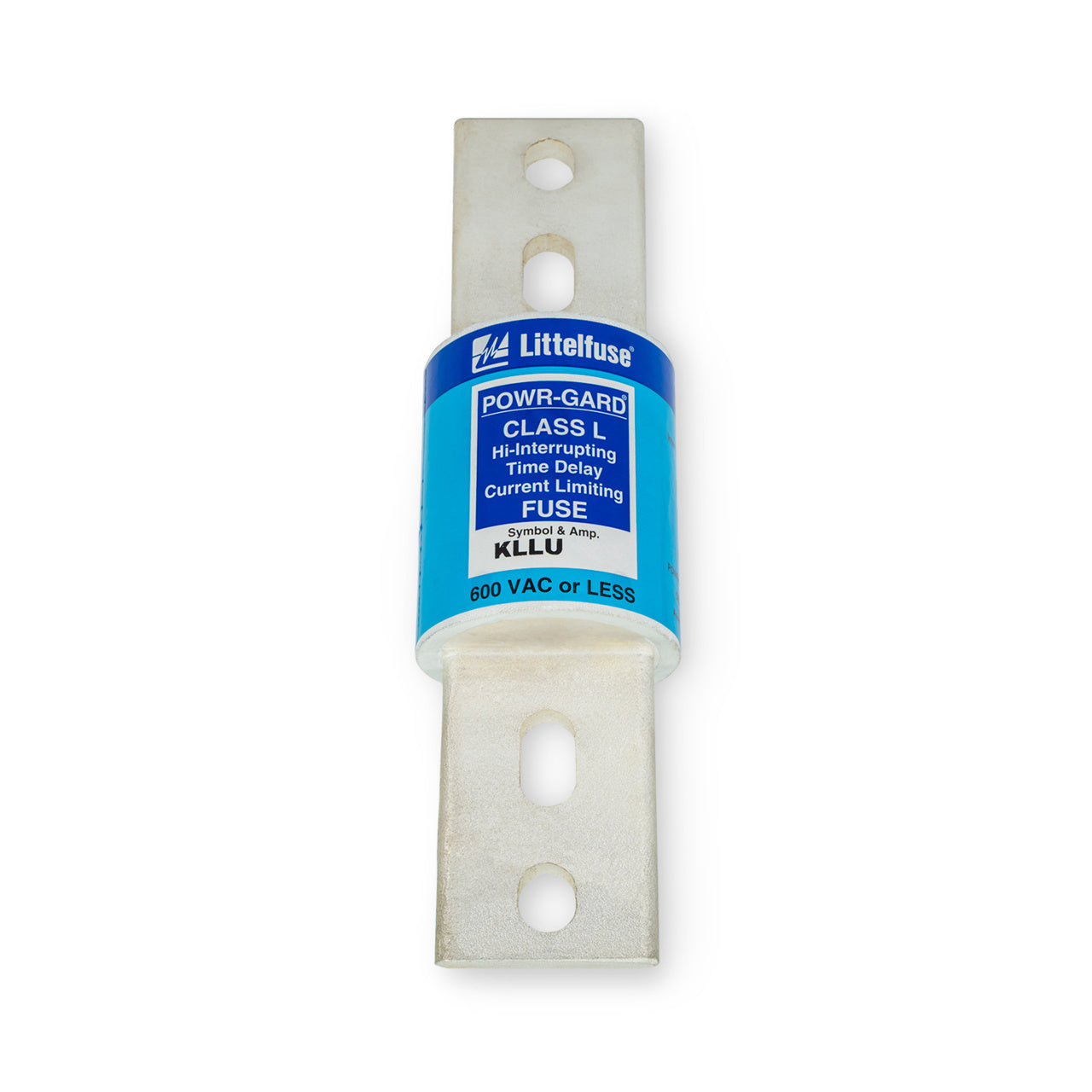

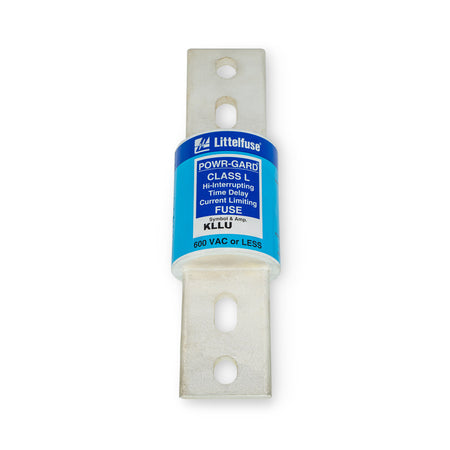

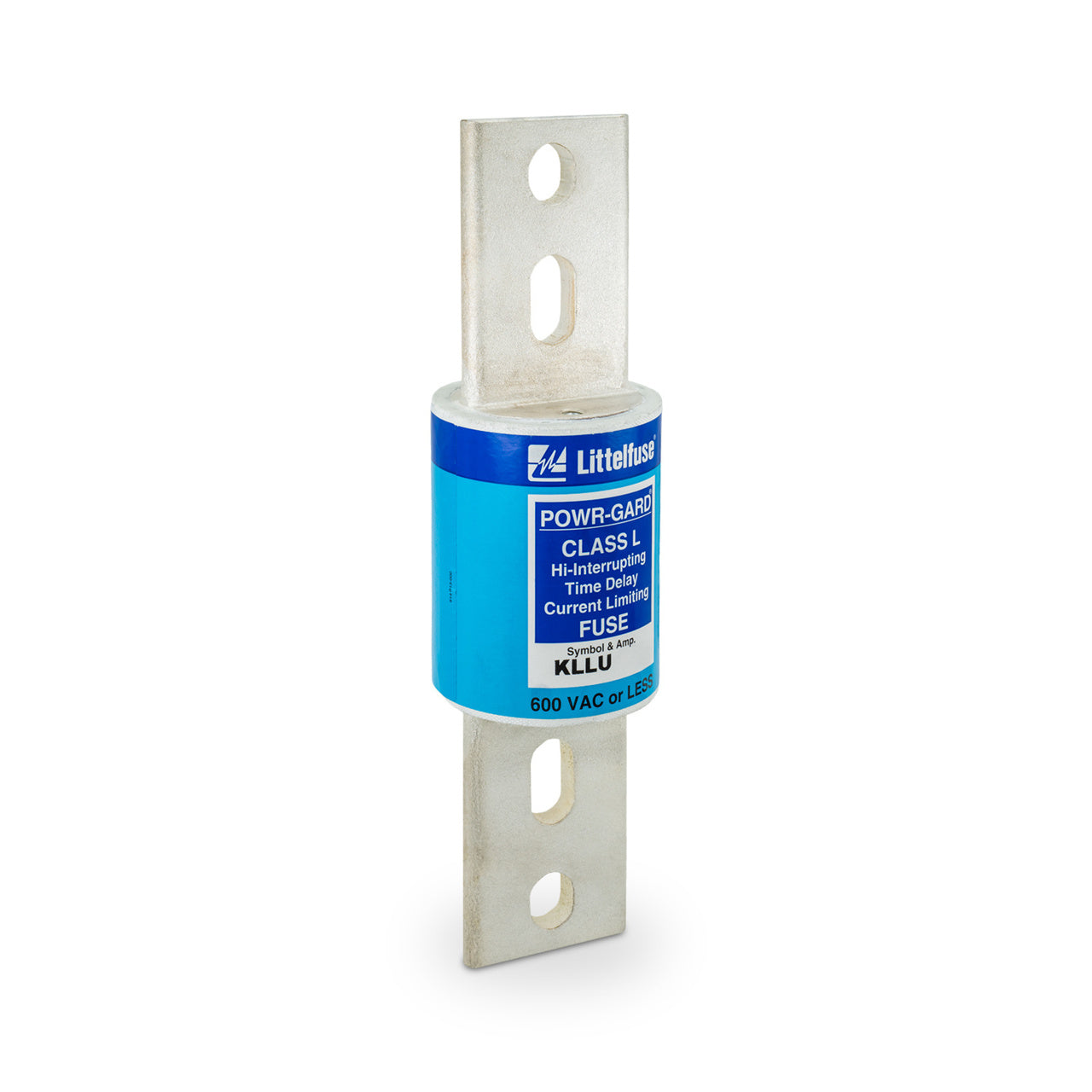

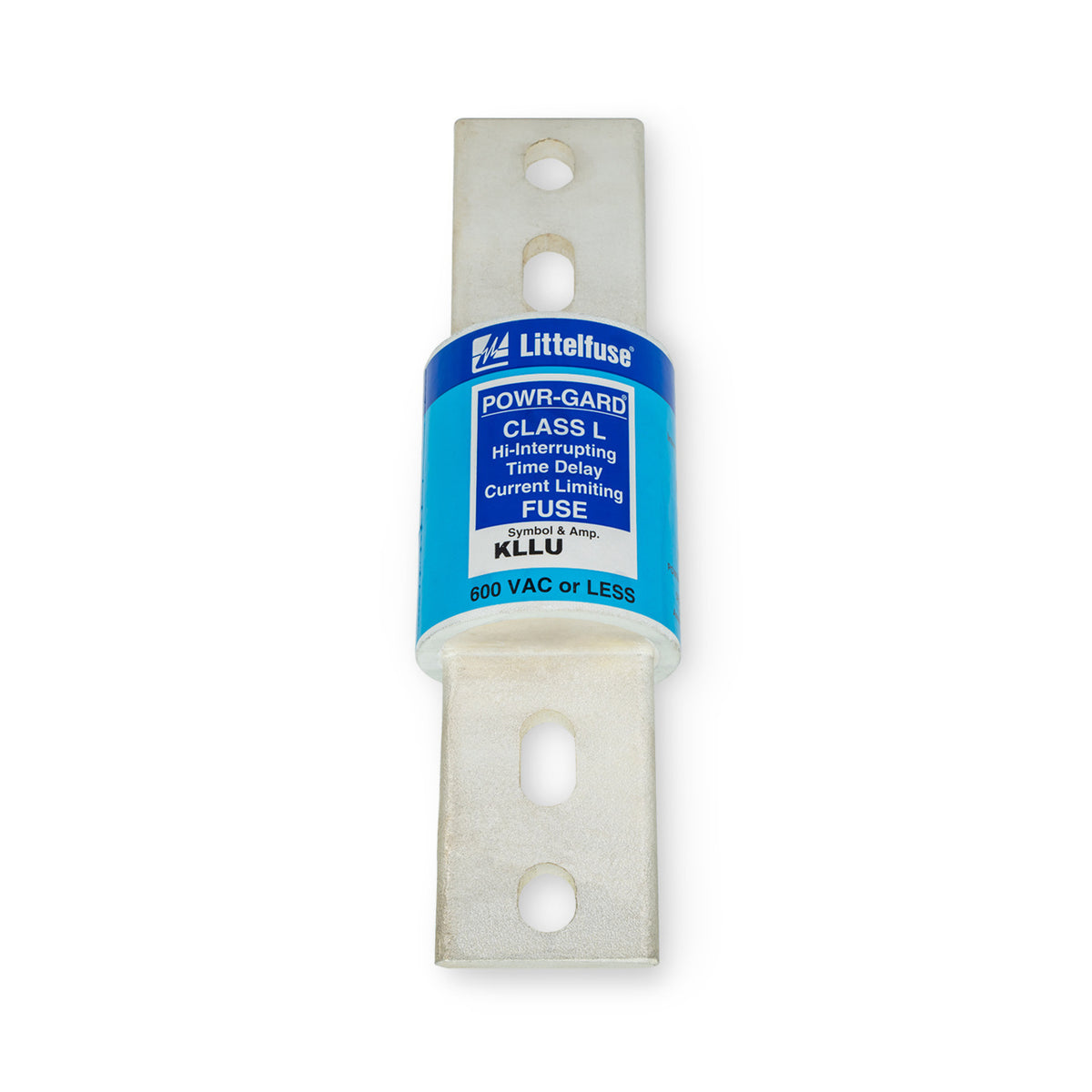

Littelfuse KLLU1600 Class L Fuse – 1600A – 600V Time-Delay Fuse

The Littelfuse KLLU1600 is a 1600 Amp Class L time-delay fuse engineered for high-capacity industrial and commercial electrical distribution systems. Part of the KLLU series, this UL Listed fuse provides dependable overload and short-circuit protection while serving as a cost-effective alternative to the POWR-PRO™ KLPC series. Its time-delay characteristics allow temporary inrush currents from motors, transformers, and other inductive loads without nuisance opening, helping maintain system reliability and uptime.

Electrical Rating

• Current Rating: 1600 Amps
• Maximum AC Voltage: 600 VAC
• Maximum DC Voltage: 300 VDC
• Interrupting Rating:
  • 200 kA AC @ 600 VAC

Key Specifications

• Manufacturer: Littelfuse
• Catalog Number: KLLU1600
• Series: KLLU
• Fuse Class: Class L
• Construction Type: Bolt-In
• Fuse Type: Time-Delay (Slo-Blo)
• Family: Current-Limiting Fuse
• Indicating: No

Protection Characteristics

• Minimum 10-second time delay at 500% of rated current
• Accommodates motor starting currents and transformer inrush loads
• Current-limiting design reduces equipment damage during fault conditions
• High 200 kA interrupting capacity for superior short-circuit protection
• Provides effective protection for motors, branch circuits, and control equipment
• Selective coordination with other Class L and Littelfuse current-limiting fuses
• Helps reduce downtime by isolating only the affected circuit

Construction Features

• Heavy-duty bolt-in Class L fuse construction
• UL Listed and compliant with Class L fuse requirements
• Industrial-grade design for demanding power distribution applications
• Cost-effective alternative to POWR-PRO™ KLPC series fuses
• Non-indicating configuration

Mounting & Compatibility

• Mounting Method: Bolt-In
• Compatible with Class L fuse mounting hardware and fuse clips
• Suitable for switchboards, switchgear, feeder circuits, and industrial distribution equipment

Applications

• Main service protection
• Feeder circuit protection
• Large motor circuits
• Transformers and inductive loads
• Industrial switchgear and switchboards
• Commercial and industrial power distribution systems
• Selectively coordinated protection systems

Product Data

• Manufacturer: Littelfuse
• Catalog Number: KLLU1600
• Product Type: Time-Delay Current-Limiting Fuse
• Series: KLLU
• Fuse Class: Class L
• Family: Current-Limiting Fuse
