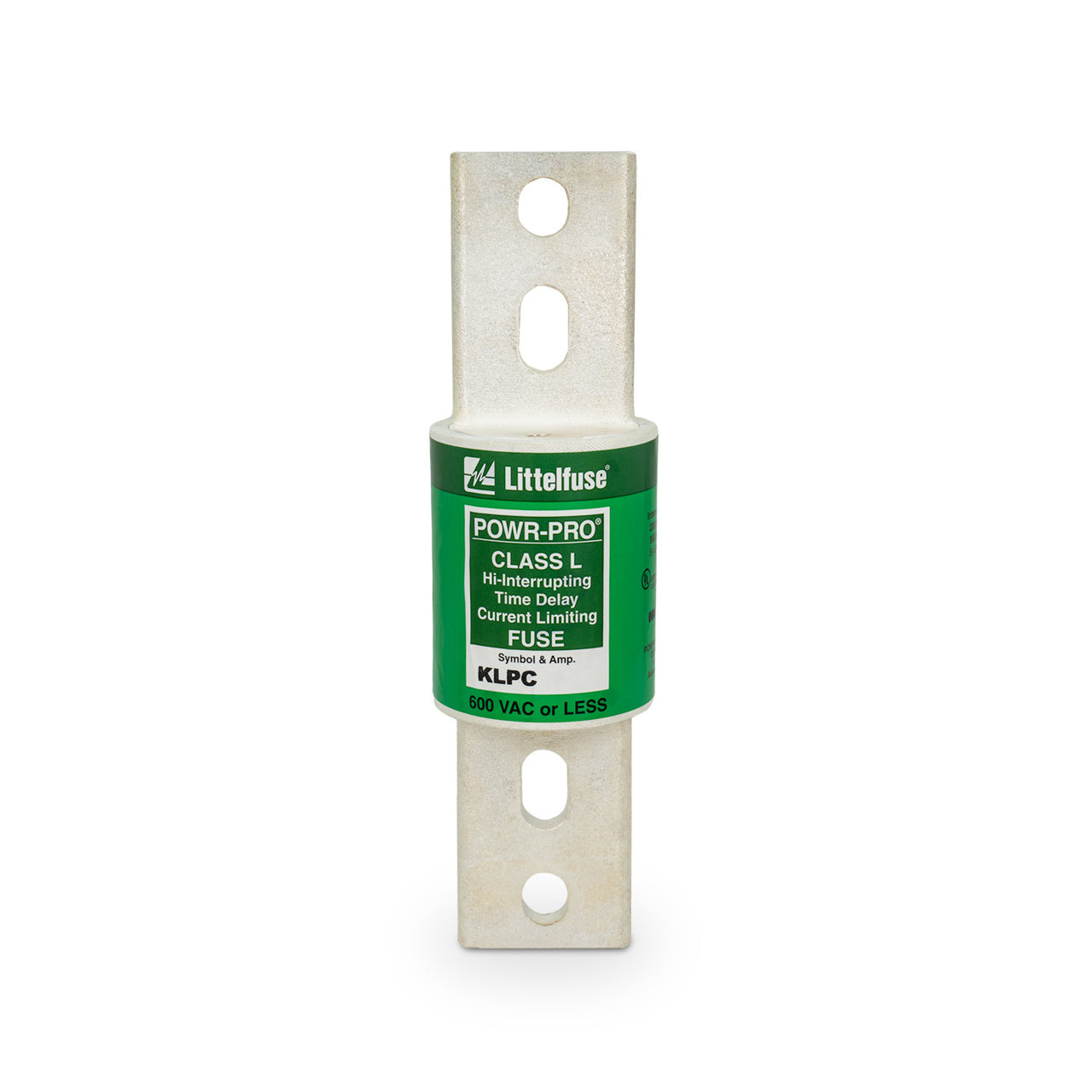

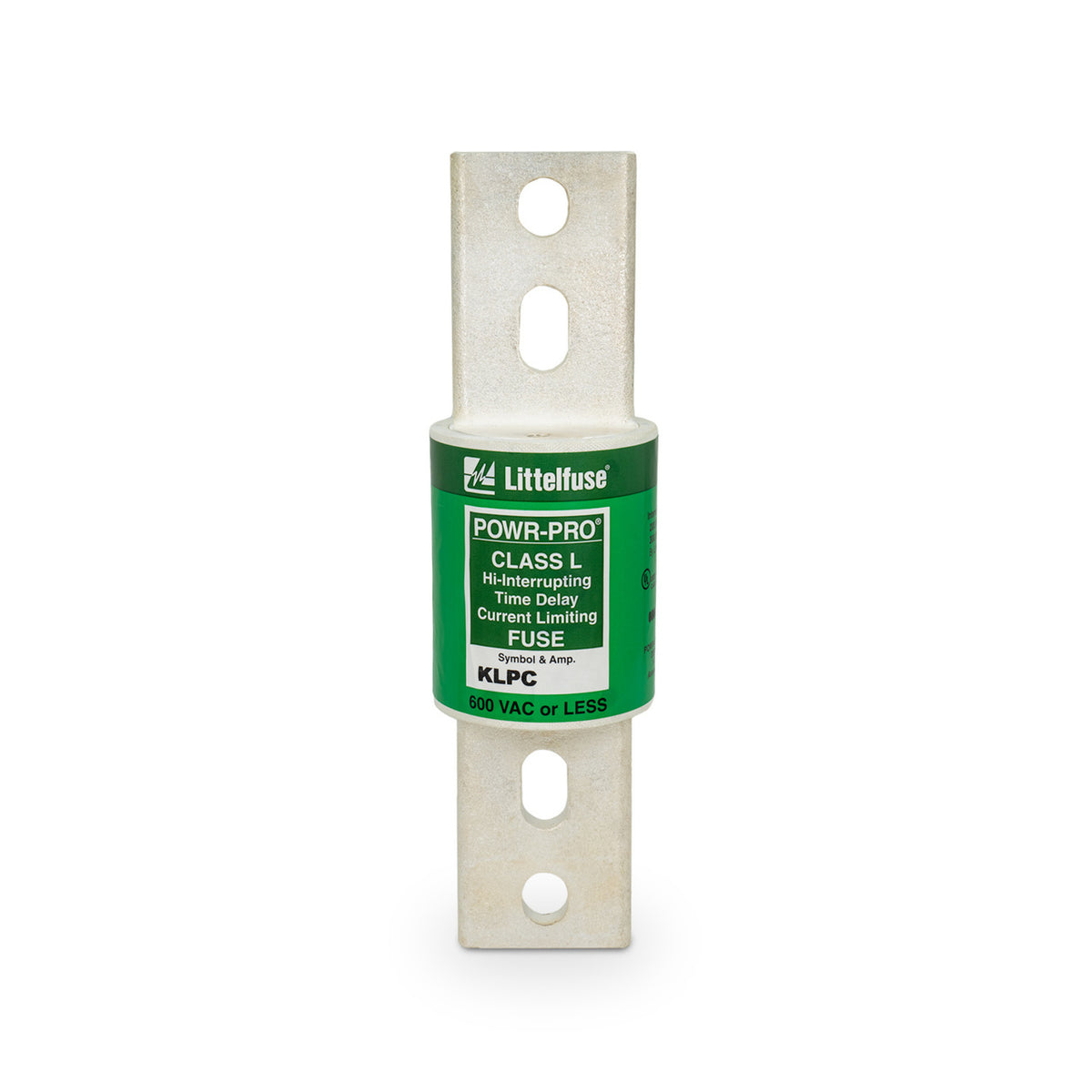

Littelfuse KLPC1800 1800A Class L Time-Delay Fuse – Bolt-In – 600VAC/480VDC

The Littelfuse KLPC1800 POWR-PRO™ Class L fuse is designed to provide superior overcurrent protection for high-capacity electrical distribution systems. Engineered with 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, O-ring seals, and granular quartz fillers, it delivers exceptional reliability and performance. The KLPC series is UL Listed and offers a minimum ten-second time delay at 500% rated current while maintaining excellent current-limiting characteristics, making it ideal for industrial and commercial power distribution applications.

Voltage and Rating

• Current Rating: 1800 Amps
• Voltage Rating: 600 Volts AC
• DC Voltage Rating: 480 Volts DC
• Interrupting Rating: 200 kA AC
• Interrupting Rating: 20 kA at 480 VDC

Key Specifications

• Fuse Type: Time-Delay (Slo-Blo)
• Fuse Class: Class L
• Mounting Type: Bolt-In
• Series: KLPC POWR-PRO™
• Family Style: Powr-Pro Fuse
• Indicating: Non-Indicating
• Application: Industrial and Commercial Overcurrent Protection

Technical Specifications

• Opening Characteristic: Time-Delay / Slo-Blo
• Current Limiting: Yes
• Interrupt Amperage: 200,000 Amps
• Construction: Pure Silver Fuse Elements
• End Bells: Silver-Plated Copper
• Body Material: Glass-Reinforced Melamine
• Filler Material: Granular Quartz
• Seal Type: O-Ring Sealed Construction

Product Data

• Manufacturer: Littelfuse
• Model Number: KLPC1800
• Series: KLPC POWR-PRO™

Features

• Minimum 10-second time delay at 500% rated current
• Excellent current-limiting performance
• Designed for high-fault-current applications
• UL Listed Class L fuse
• Ideal for protection of feeders, mains, and large distribution equipment
• Rugged industrial-grade construction for long service life
