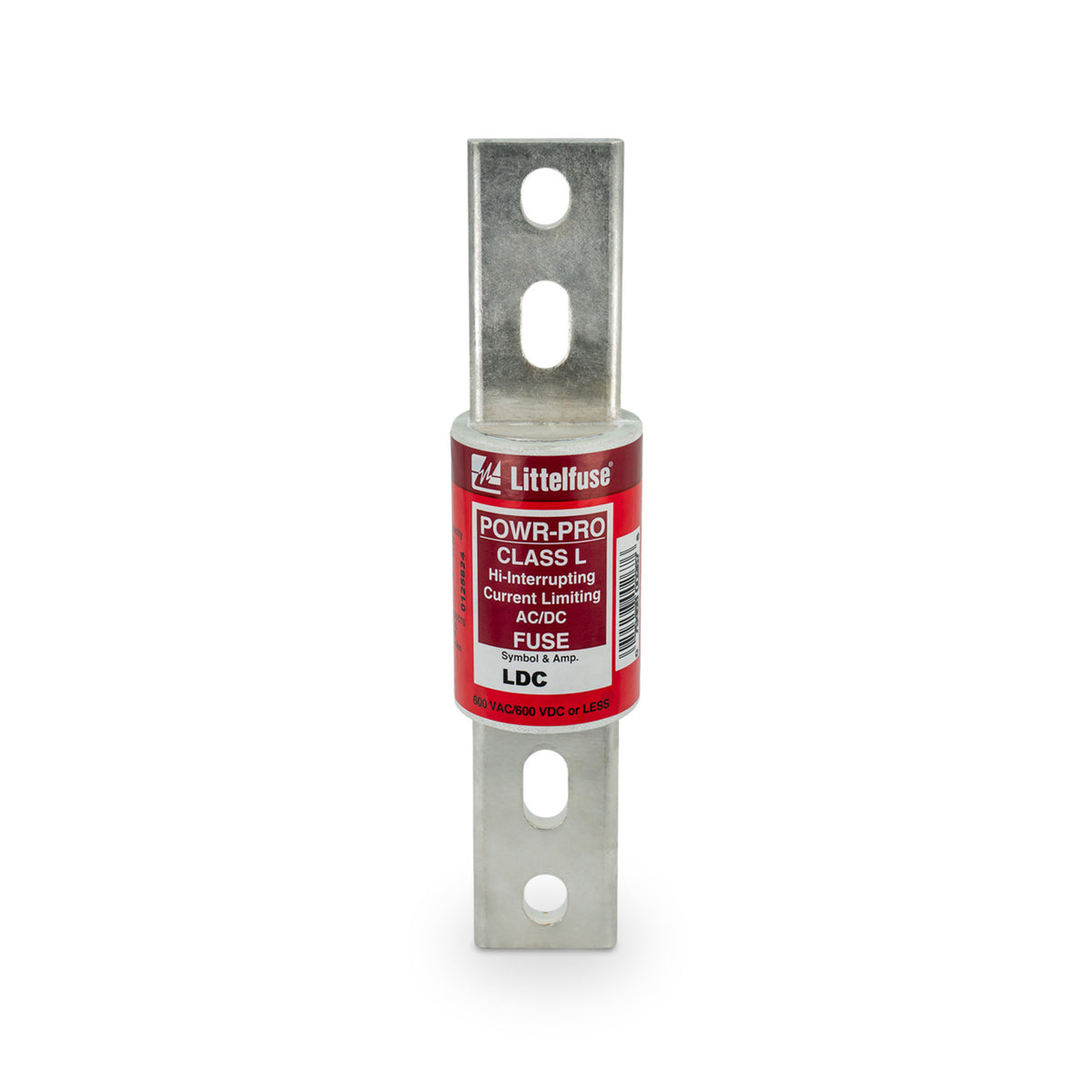

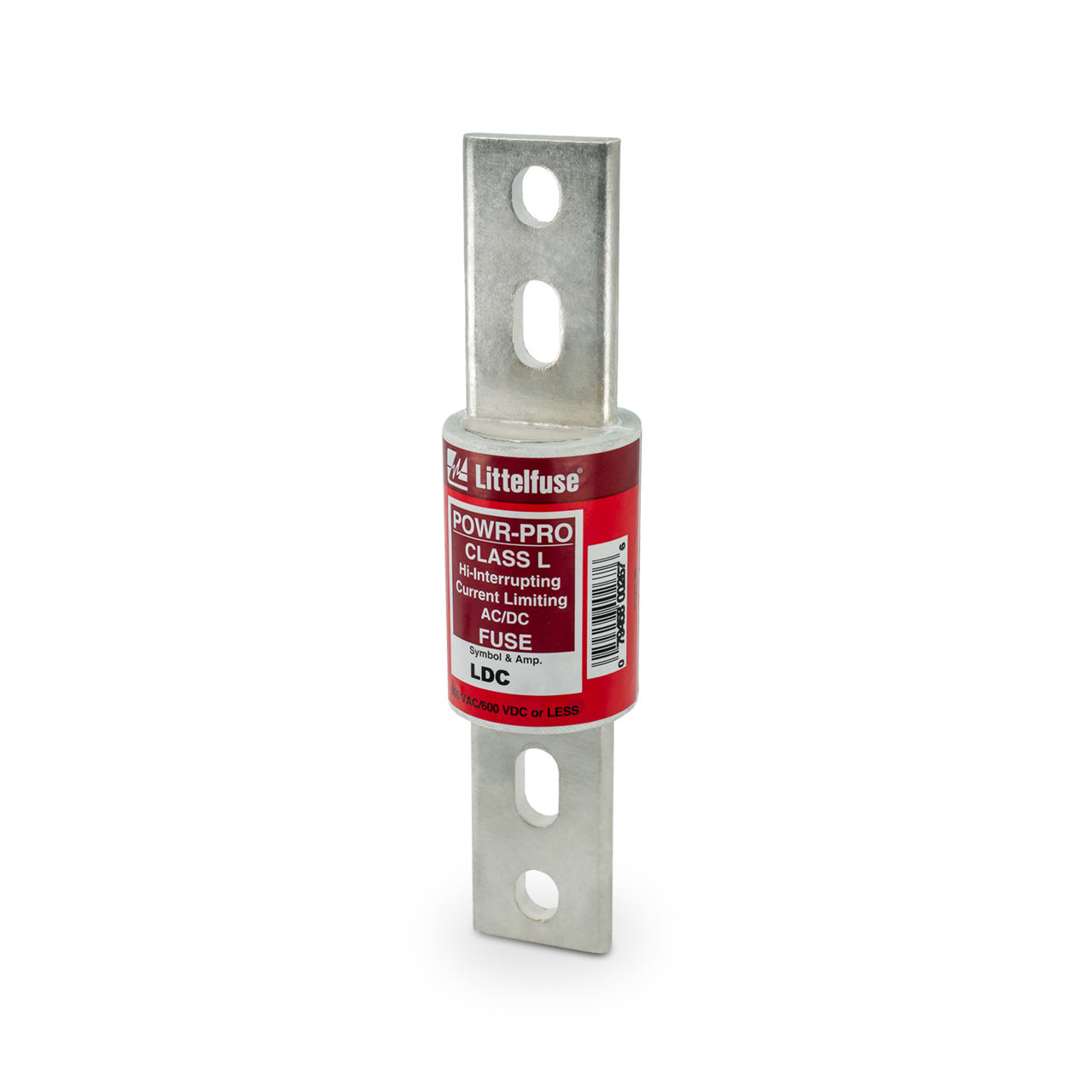

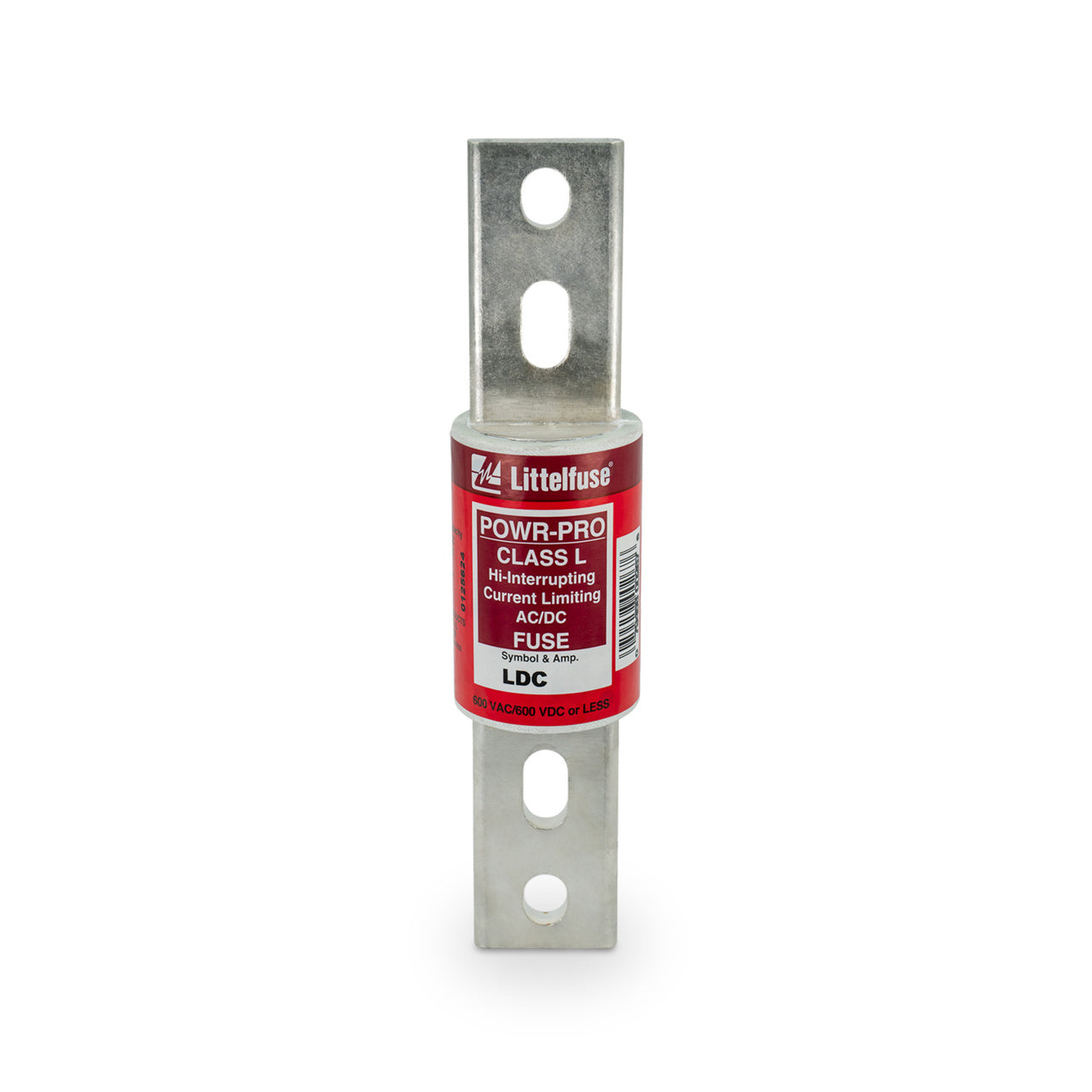

Littelfuse LDC1000 1000A Class L Fast-Acting Fuse – Bolt-In – 600VAC/DC

The Littelfuse LDC1000 POWR-PRO® Class L fuse is a high-performance, fast-acting fuse designed for both AC and DC protection. It is the first UL Listed Class L fuse rated for 600V AC and DC, providing flexible application use and eliminating the risk of incorrect fuse substitution between AC-only and DC circuits. Its robust design makes it especially suitable for demanding applications such as crane rail systems, mass transit infrastructure, and industrial power distribution.

Voltage and Rating

• Current Rating: 1000 Amps
• Voltage Rating: 600 Volts AC
• DC Voltage Rating: 600 Volts DC
• Interrupting Rating: 200 kA at 600 VAC
• Interrupting Rating: 50 kA at 600 VDC

Key Specifications

• Fuse Type: Fast-Acting
• Fuse Class: Class L
• Mounting Type: Bolt-In
• Series: LDC POWR-PRO®
• Family Style: Powr-Pro Fuse
• Application: AC/DC industrial power protection

Technical Specifications

• Opening Characteristic: Fast-Acting
• Current Limiting: Yes
• Interrupt Amperage: 200,000 Amps
• DC Time Constant Capability: Tested for extended time constants (special applications such as rail systems)
• Construction: Industrial-grade high-performance fuse design
• Safety Feature: Eliminates AC-only fuse misuse in DC circuits

Product Data

• Manufacturer: Littelfuse
• Model Number: LDC1000
• Series: LDC POWR-PRO®

Features

• First UL Listed 600V AC/DC Class L fuse
• Suitable for both AC and DC systems without substitution risk
• High interrupting capability for demanding industrial environments
• Designed for specialized applications such as transit and crane systems
• Extremely current-limiting for improved equipment protection
• Reliable performance under high fault current conditions
