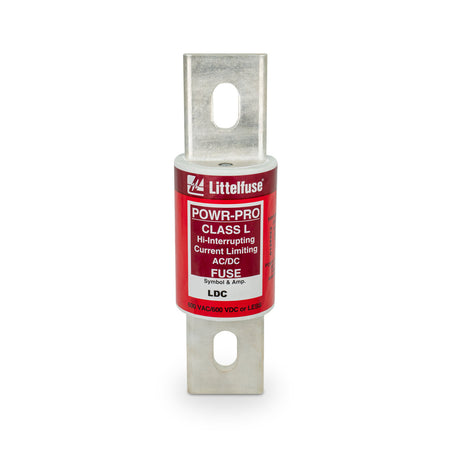

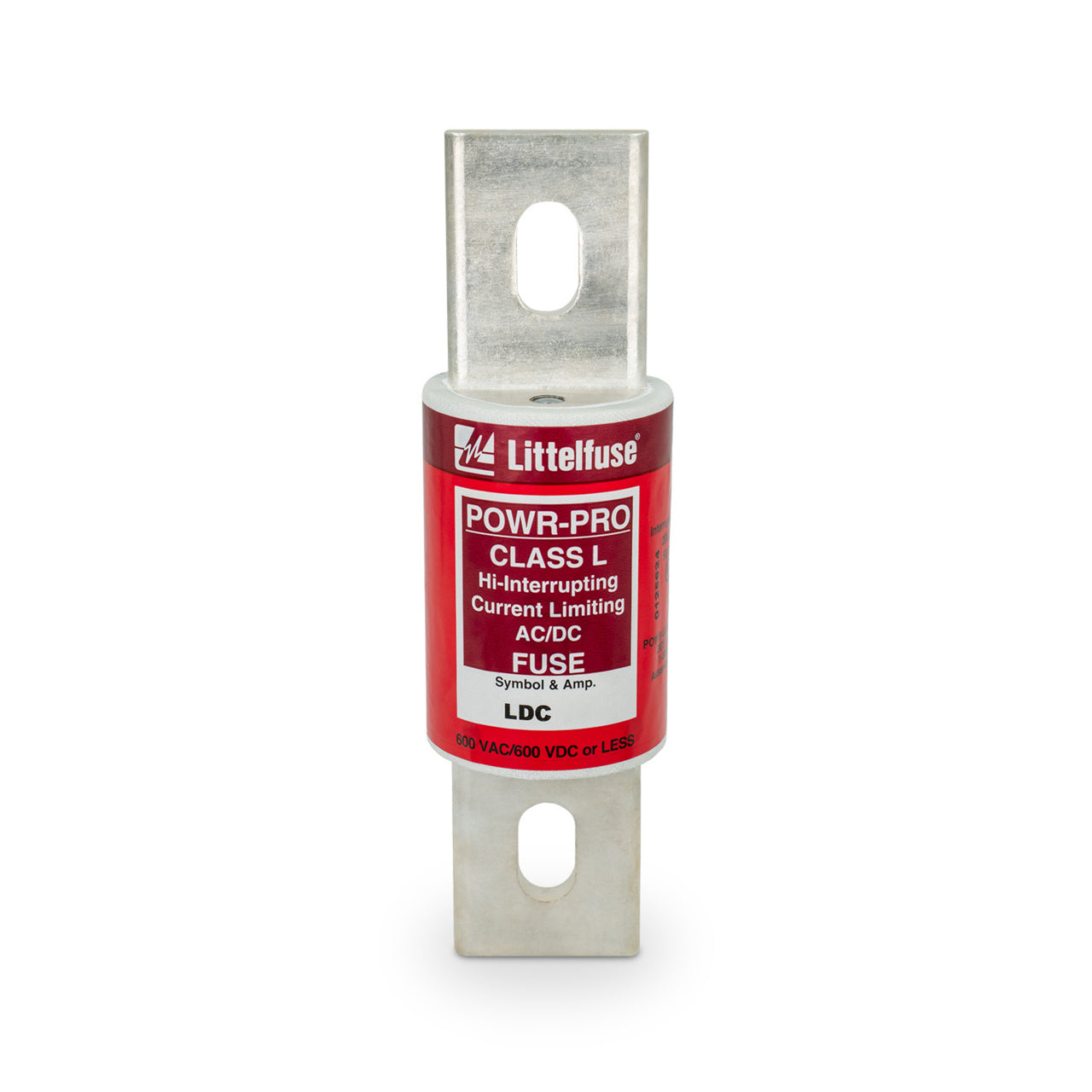

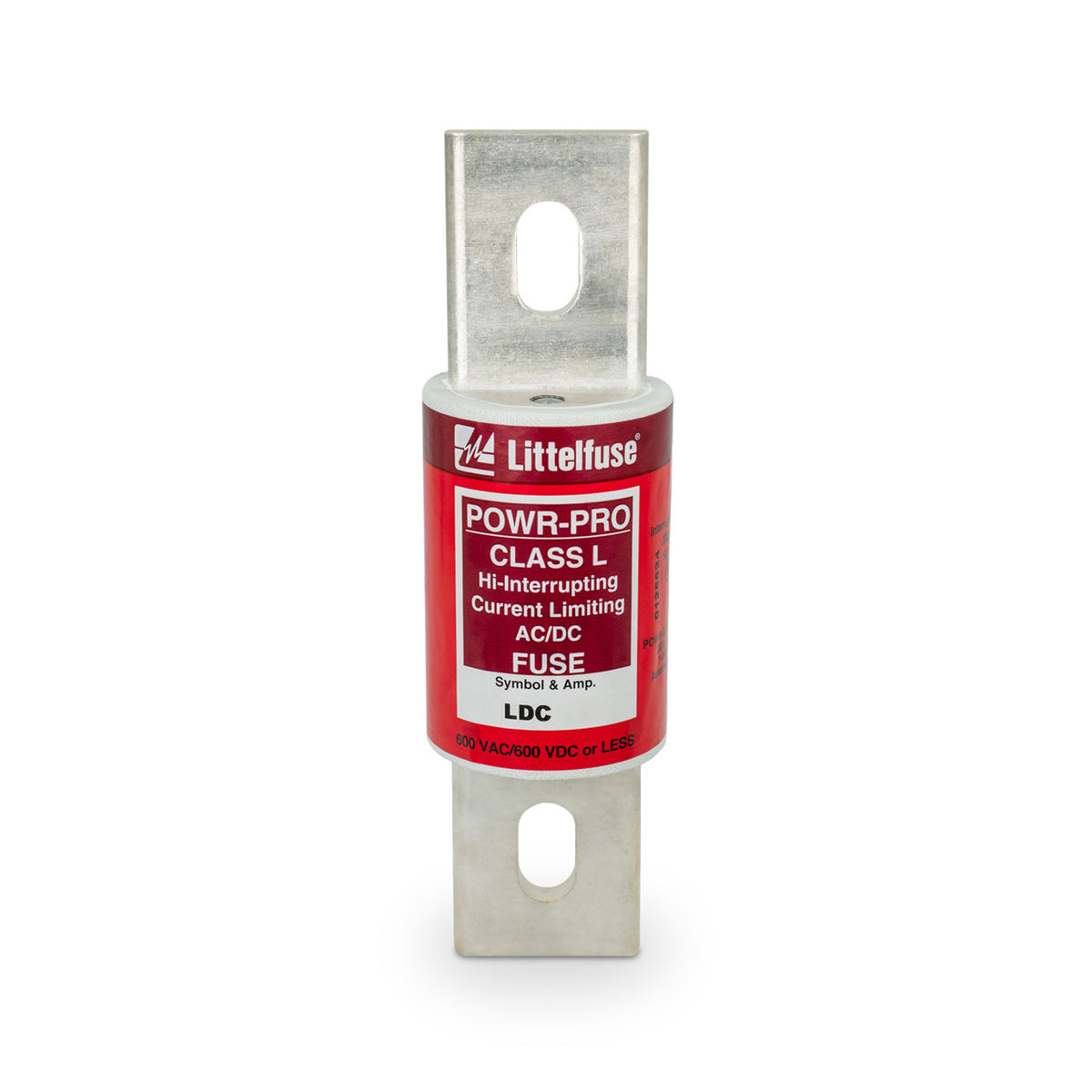

Littelfuse LDC500 500A Class L Fast-Acting Fuse – Bolt-In – 600VAC/DC

The Littelfuse LDC500 POWR-PRO® Class L fuse is a fast-acting, high-capacity fuse designed for dual AC and DC protection in industrial and transportation electrical systems. As part of the LDC series, it is the first UL Listed Class L fuse rated for both 600V AC and DC, eliminating the risk of installing AC-only fuses in DC applications. It is commonly used in heavy industrial distribution, crane rail systems, and mass transit infrastructure where high fault current protection is required.

Voltage and Rating

• Current Rating: 500 Amps
• Voltage Rating: 600 Volts AC
• DC Voltage Rating: 600 Volts DC
• Interrupting Rating: 200 kA at 600 VAC
• Interrupting Rating: 50 kA at 600 VDC

Key Specifications

• Fuse Type: Fast-Acting
• Fuse Class: Class L
• Mounting Type: Bolt-In
• Series: LDC POWR-PRO®
• Family Style: Powr-Pro Fuse
• Application: AC/DC industrial power distribution systems

Technical Specifications

• Opening Characteristic: Fast-Acting
• Current Limiting: Yes
• Interrupt Amperage: 200,000 Amps
• DC Performance: Rated for extended time constant applications
• Construction: Heavy-duty industrial-grade fuse design
• Safety Feature: Prevents AC-only fuse substitution in DC systems

Product Data

• Manufacturer: Littelfuse
• Model Number: LDC500
• Series: LDC POWR-PRO®

Features

• First UL Listed 600V AC/DC Class L fuse series
• Extremely high interrupting capacity for severe fault conditions
• Suitable for crane rail, transit, and heavy industrial applications
• Strong current-limiting protection to reduce equipment damage
• Reliable operation under both AC and DC fault conditions
