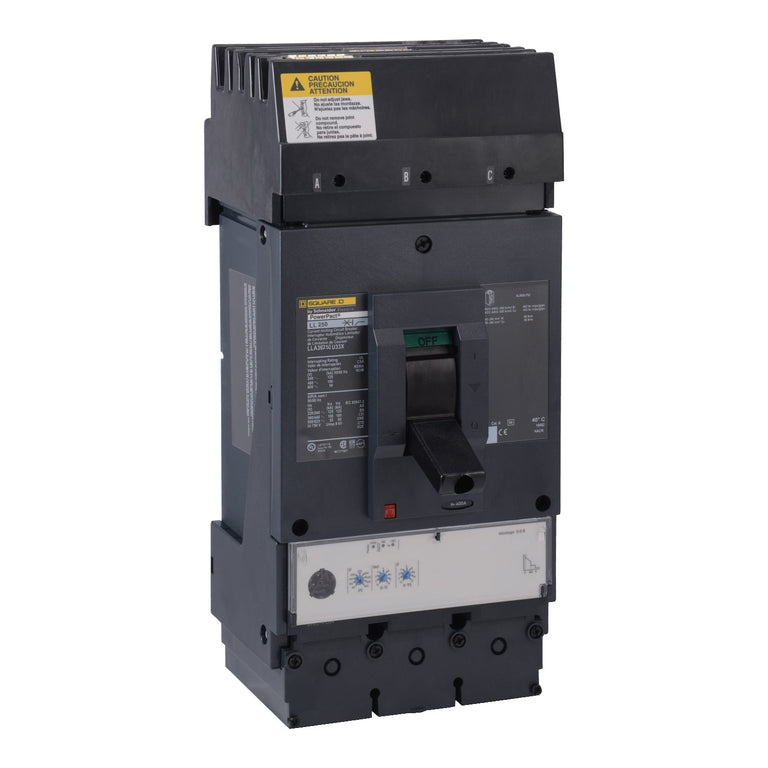

Square D PowerPact LLA36250U33X 250 Amp Molded Case Circuit Breaker – 3 Pole – 600V – 100 kA @ 480V – LLA Frame

The Square D PowerPact LLA36250U33X is a 250A, 3-pole molded case circuit breaker designed for three-phase electrical distribution systems. It features a 600V rating and a 100 kA interrupting capacity at 480V. The breaker is equipped with a non-interchangeable solid-state electronic Micrologic Standard 3.3S trip unit, providing LSI protection (Long-Time, Short-Time, and Instantaneous). Its I-Line plug-in configuration supports installation in compatible Square D electrical distribution equipment. It can also be used in 2-pole applications.

Specifications

• Brand: Schneider Electric / Square D
• Product Series: PowerPact
• Type: LLA
• Model / MPN: LLA36250U33X
• Product Type: Molded Case Circuit Breaker (MCCB)
• Current Rating: 250A
• Poles: 3 Pole
• Phase: 3 Phase
• Voltage Rating: 600V
• Interrupting Capacity: 100 kA @ 480V
• Interrupting Class: Standard Interrupting (as stated)
• Mounting / Connection: I-Line Style Plug-In
• Trip Unit: Micrologic Standard 3.3S, Non-Interchangeable
• Trip Functions: LSI – Long-Time, Short-Time, and Instantaneous
• Trip Technology: Solid-State Electronic
• Application: Suitable for 2-pole applications

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: LLA36250U33X
• Product Family: PowerPact
• Breaker Type: LLA
• UPC:606487405767

Compatibility

Designed for compatible Square D PowerPact I-Line panelboards and switchboards supporting 250A, 3-pole breakers with matching electrical and plug-in connection requirements. It may also be applied in compatible 2-pole configurations.

Certifications

• Certification: UL Listed
