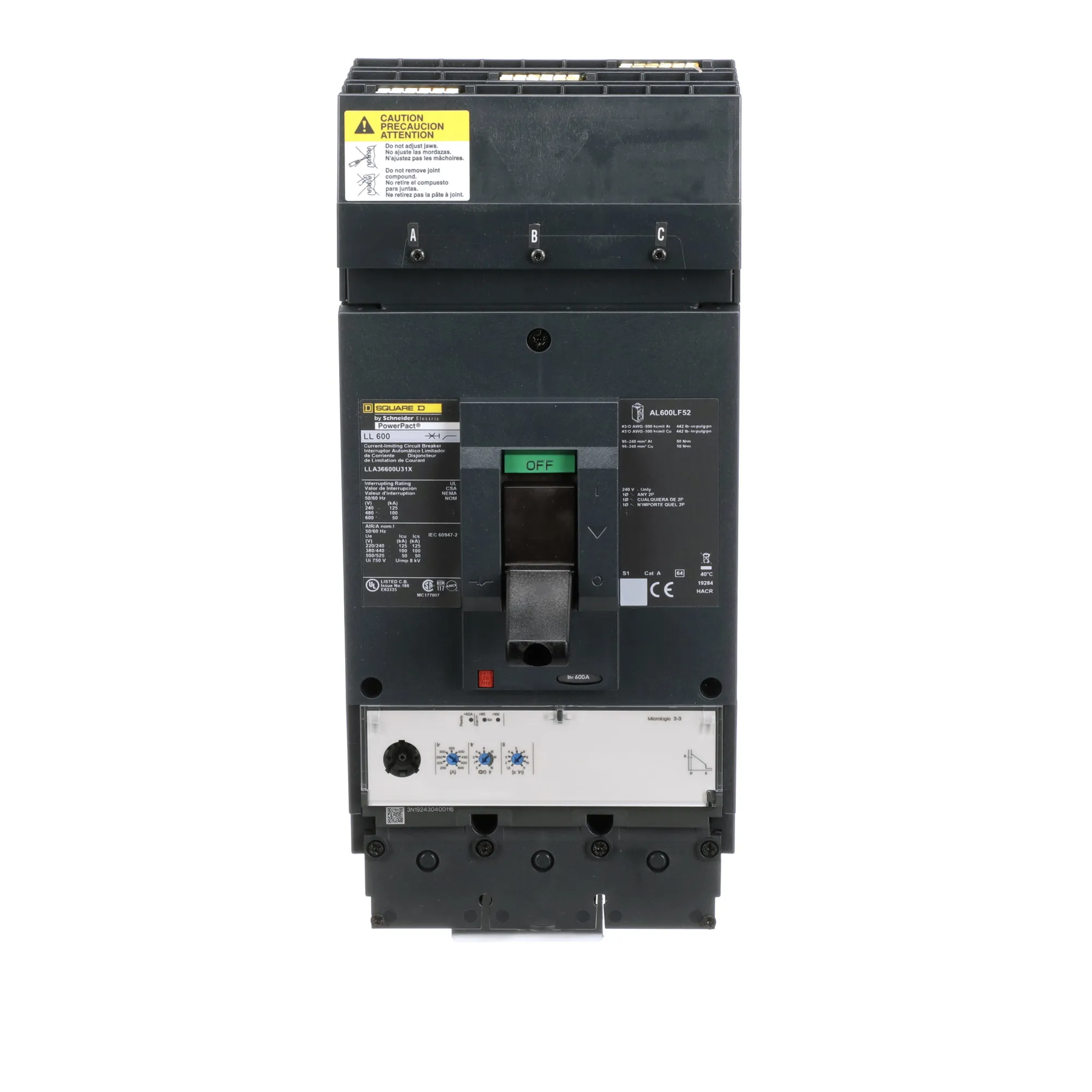

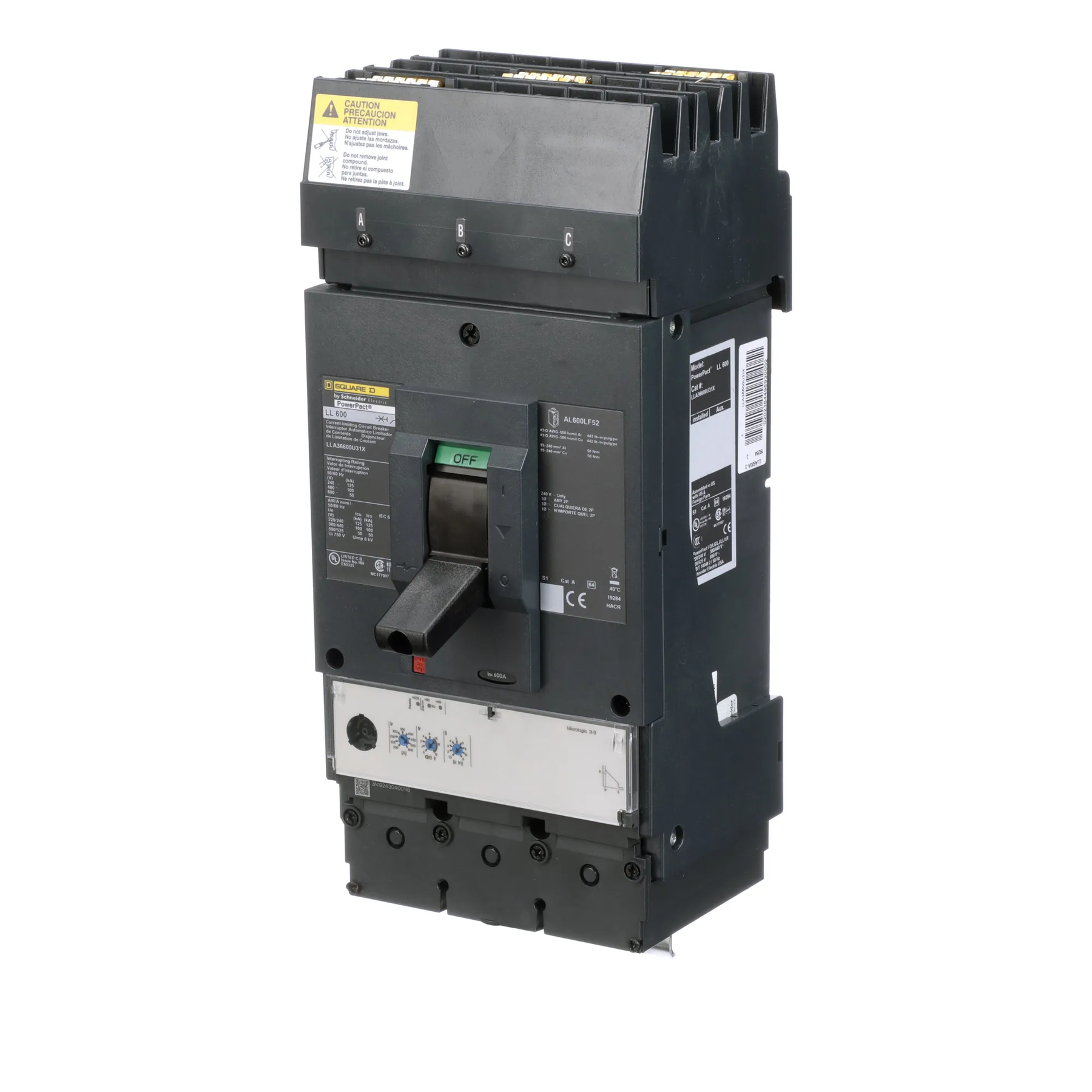

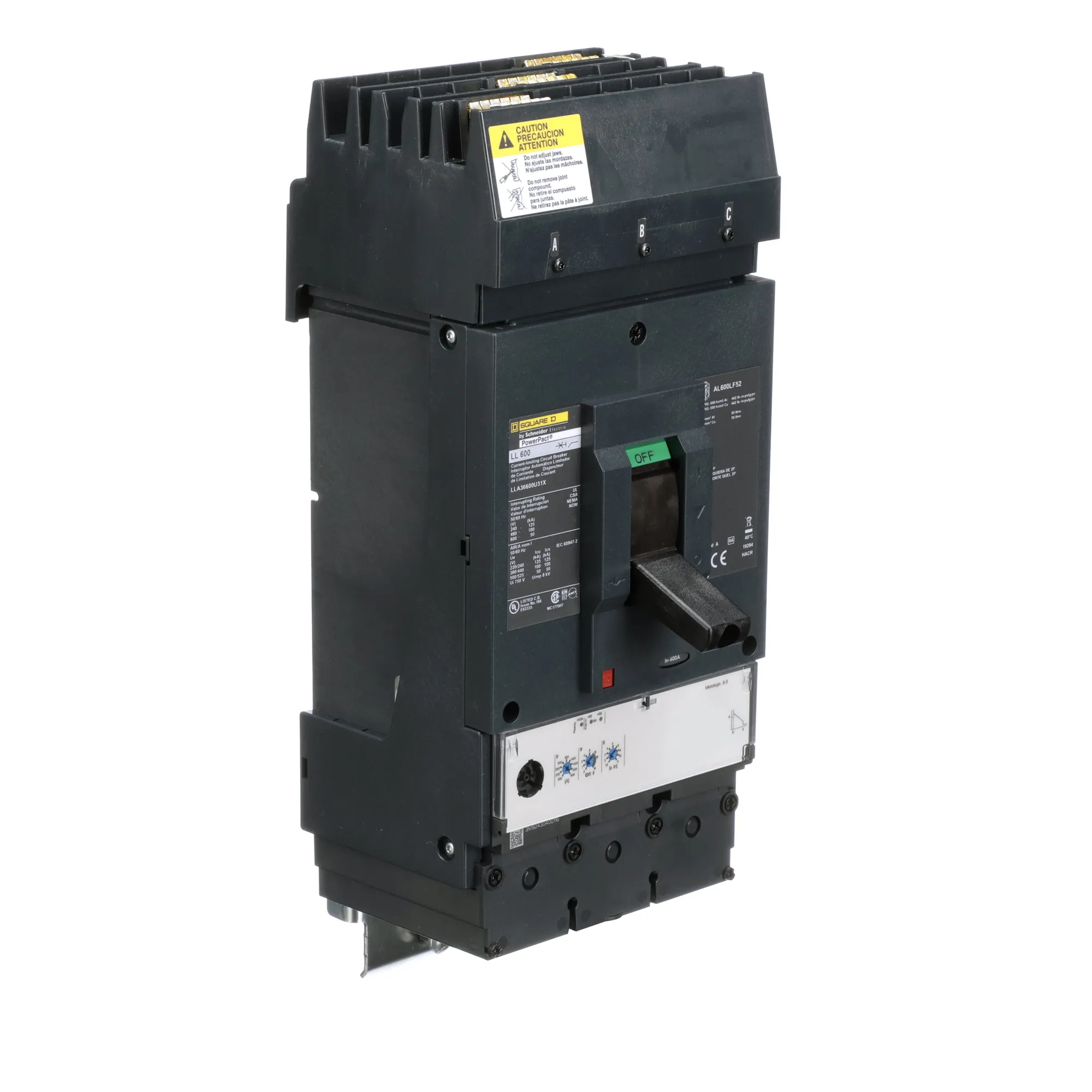

Square D LLA36600U31X 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – I-Line Plug-In – PowerPact LLA Series

The Square D LLA36600U31X is a 600 Amp, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact LLA Series. It is rated for 600 V and provides a 100 kA interrupting rating at 480 V. The breaker features standard interrupting capacity, an I-Line style plug-in connection, and a non-interchangeable Micrologic Standard 3.3 trip unit with LI (Long-Time and Instantaneous) protection functions. The breaker uses solid-state electronic protection and can be used for 2-pole applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact LLA
• Type: LLA
• Catalog Number / MPN: LLA36600U31X
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Solid-State Electronic
• Trip Unit: Non-Interchangeable Micrologic Standard 3.3
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Style Plug-In
• Application: Can Be Used for 2-Pole Applications

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: LLA36600U31X
• Series: PowerPact LLA
• Type: LLA
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable Micrologic Standard 3.3
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line Style Plug-In
• UPC: 785901986553

Compatibility

The Square D LLA36600U31X is designed for compatible Square D PowerPact LLA Series and I-Line style panelboard applications. It can be used for 2-pole applications as specified.

Certifications

• UL Listed
