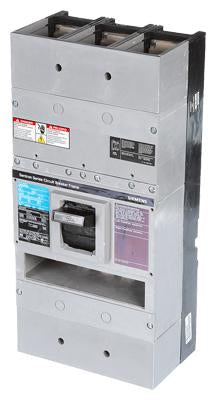

Siemens LMD63F800 Molded Case Circuit Breaker Frame – 800A – 3-Pole / 3-Phase – 600V – 25kA @ 600V / 50kA @ 480V – Bolt-On – Sentron LMD Series

The Siemens LMD63F800 is an 800A, 3-pole, 3-phase molded case circuit breaker frame from the Siemens Sentron LMD Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The LMD63F800 is rated for 600V and provides an interrupting rating of 50kA at 480V and 25kA at 600V. It features a bolt-on mounting configuration, is rated for operation at 40°C, and is supplied as a frame only.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Sentron
• Series: LMD
• Type: LMD
• Catalog No.: LMD63F800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 50kA @ 480V; 25kA @ 600V
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Breaker Configuration: Frame Only
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LMD63F800
• Catalog Number: LMD63F800
• Model: LMD63F800
• Product Family: Siemens Sentron Circuit Breakers
• Series: LMD
• Type: LMD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 800A
• Configuration: Frame Only
• UPC:783643268036

Compatibility:

Designed for use with compatible Siemens Sentron LMD Series electrical distribution equipment that accepts LMD Series molded case circuit breaker frames. The LMD63F800 provides an 800A, 3-pole, thermal-magnetic frame for compatible 600V electrical distribution applications.

The product is supplied as a frame only. Always verify the specific circuit breaker configuration, required trip unit, panelboard or electrical equipment model, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• Siemens Sentron LMD Series
• 800A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 50kA @ 480V Interrupting Rating
• 25kA @ 600V Interrupting Rating
• Thermal-Magnetic Protection
• Bolt-On Mounting
• 40°C Rated
• Frame Only
