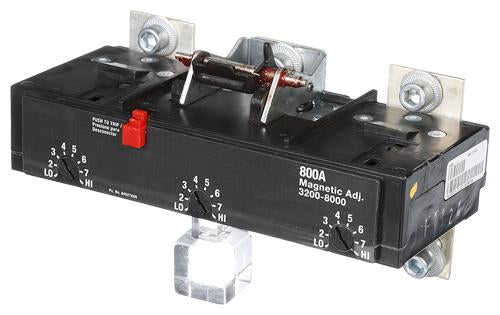

Siemens LMD63T800 Trip Unit – 800A – 3-Pole / 3-Phase – 600V – Long-Time & Instantaneous (LI) – Trip Unit – Sentron LMD Series

The Siemens LMD63T800 is an 800A, 3-pole, 3-phase trip unit/programmer from the Siemens Sentron Type LMD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The LMD63T800 is rated for 600V and is designed for use with compatible Siemens LMD and HLMD molded case circuit breakers.

Specifications:

• Manufacturer: Siemens
• Product Type: Trip Unit / Programmer
• Product Family: Sentron
• Series: LMD
• Type: LMD
• Catalog No.: LMD63T800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Application: Molded Case Circuit Breaker Trip Protection
• Compatible Breaker Types: LMD and HLMD Molded Case Circuit Breakers
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LMD63T800
• Catalog Number: LMD63T800
• Model: LMD63T800
• Product Family: Siemens Sentron Trip Units
• Series: LMD
• Type: LMD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Trip Unit / Programmer
• Trip Unit Configuration: 3-Pole, 800A
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:783643268173

Compatibility:

Designed for use with compatible Siemens LMD and HLMD molded case circuit breakers. The LMD63T800 provides 800A thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions for compatible 600V applications.

Always verify the specific breaker frame, compatible trip-unit model, system voltage, current rating, pole configuration, trip characteristics, and installation requirements before installation.
