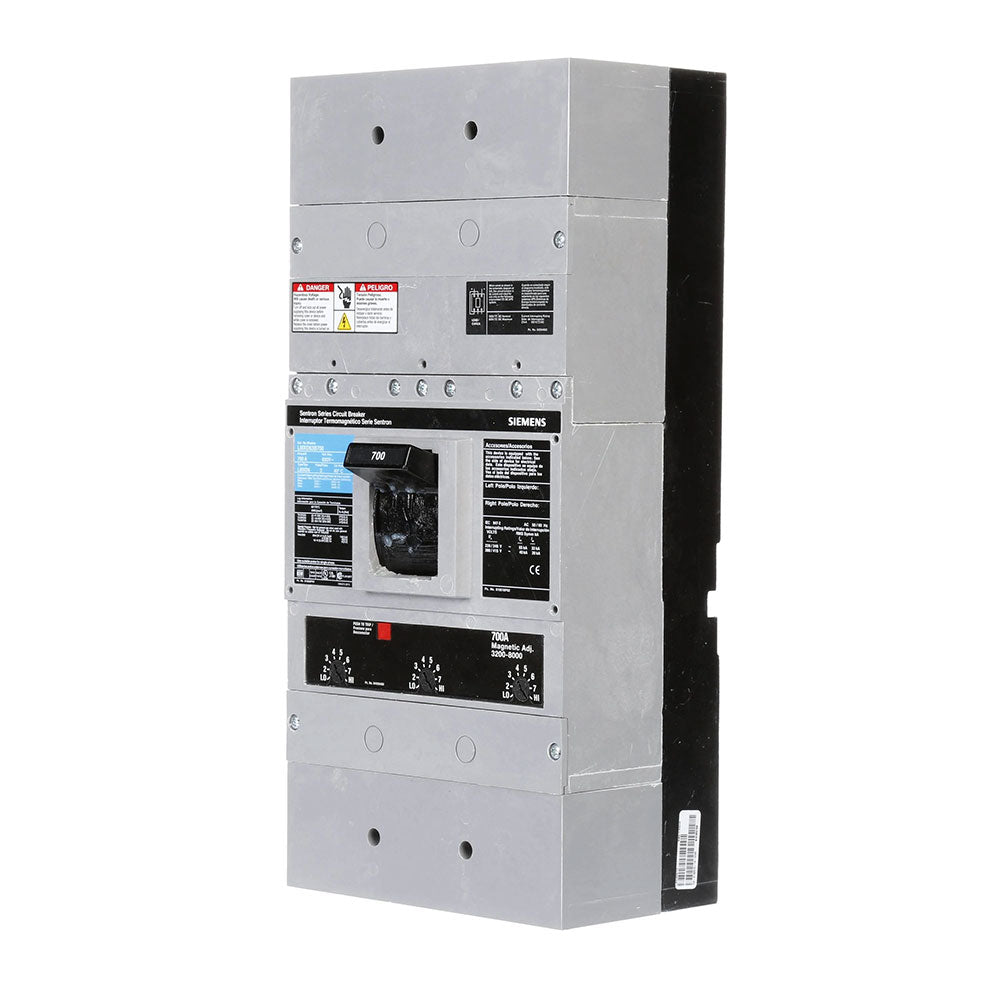

Siemens LMXD63B700 Molded Case Circuit Breaker – 700A – 3-Pole / 3-Phase – 600V – 50kA @ 480V – Bolt-On – Sentron LMXD Series

The Siemens LMXD63B700 is a 700A, 3-pole, 3-phase molded case circuit breaker from the Siemens SENTRON Series, Type LMXD. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with a non-interchangeable trip unit.

The breaker is rated for 600V and provides a 50kA interrupting rating at 480V. It uses a bolt-on mounting configuration and is supplied complete with its non-interchangeable trip unit.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: SENTRON
• Series: SENTRON
• Type: LMXD
• Catalog No.: LMXD63B700
• Current Rating: 700A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 50kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Breaker Configuration: Complete with Trip Unit
• Mounting / Connection: Bolt-On
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LMXD63B700
• Catalog Number: LMXD63B700
• Model: LMXD63B700
• Product Family: Siemens SENTRON Molded Case Circuit Breakers
• Series: SENTRON
• Type: LMXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 700A
• UPC:783643304130

Compatibility:

Designed for use with compatible Siemens SENTRON Type LMXD electrical distribution equipment that accepts bolt-on molded case circuit breakers. The LMXD63B700 provides 700A, 3-pole thermal-magnetic protection for compatible 600V applications and includes a non-interchangeable trip unit.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, mounting arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
