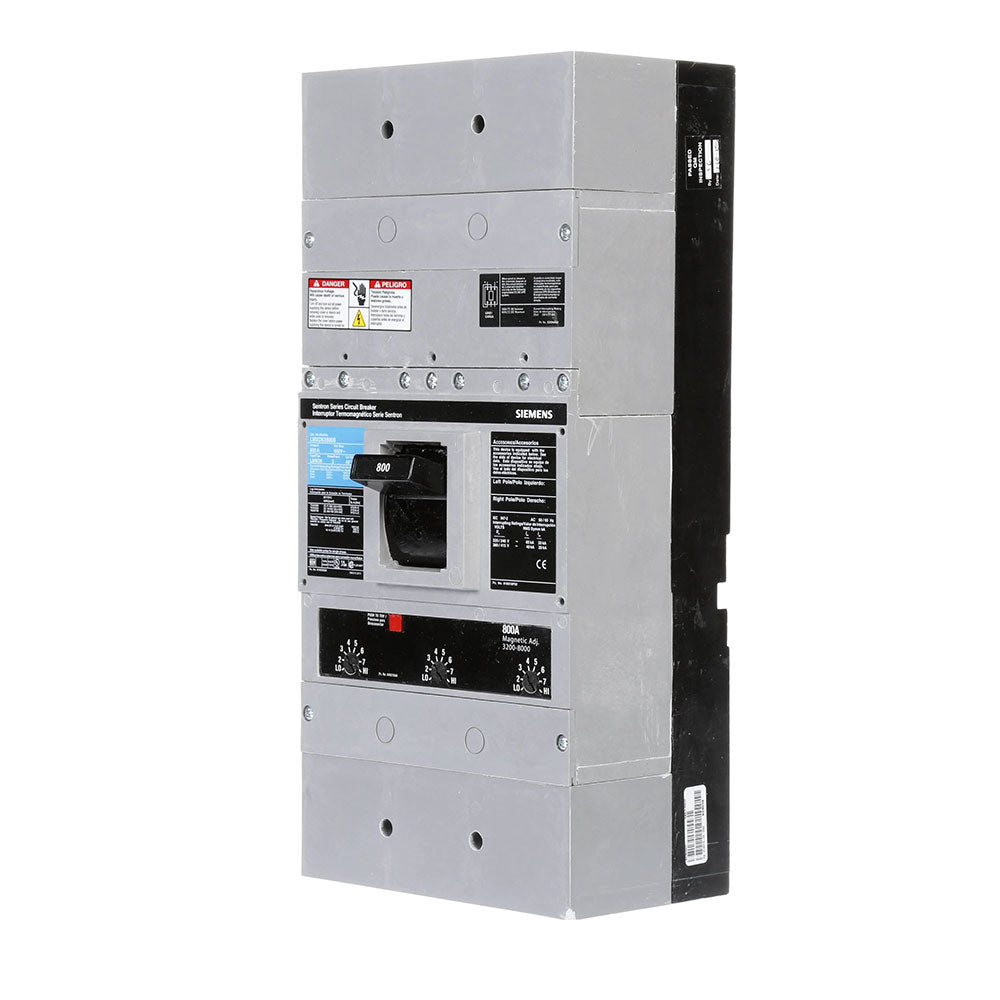

Siemens LMXD63B800 Molded Case Circuit Breaker – 800A – 3-Pole / 3-Phase – 600V – 50kA @ 480V – Bolt-On – Sentron Series LMXD

The Siemens LMXD63B800 is an 800A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series Type LMXD. It features thermal-magnetic protection with a non-interchangeable trip unit for overcurrent protection in compatible electrical distribution applications.

The LMXD63B800 is rated for 600V and provides a 50kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on connection and is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: Sentron
• Type: LMXD
• Catalog No.: LMXD63B800
• Current Rating: 800A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 50kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Unit: Non-Interchangeable Trip Unit
• Mounting / Connection: Bolt-On
• Temperature Rating: 40°C
• Lugs: Not Included
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LMXD63B800
• Catalog Number: LMXD63B800
• Model: LMXD63B800
• Product Family: Siemens Sentron Molded Case Circuit Breakers
• Series: Sentron
• Type: LMXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 800A
• Trip Configuration: Non-Interchangeable
• UPC:783643304123

Compatibility:

Designed for use with compatible Siemens Sentron Series Type LMXD electrical distribution equipment that accepts LMXD Series molded case circuit breakers. The LMXD63B800 provides 800A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker uses a bolt-on connection, includes a non-interchangeable trip unit, and is supplied without lugs.
