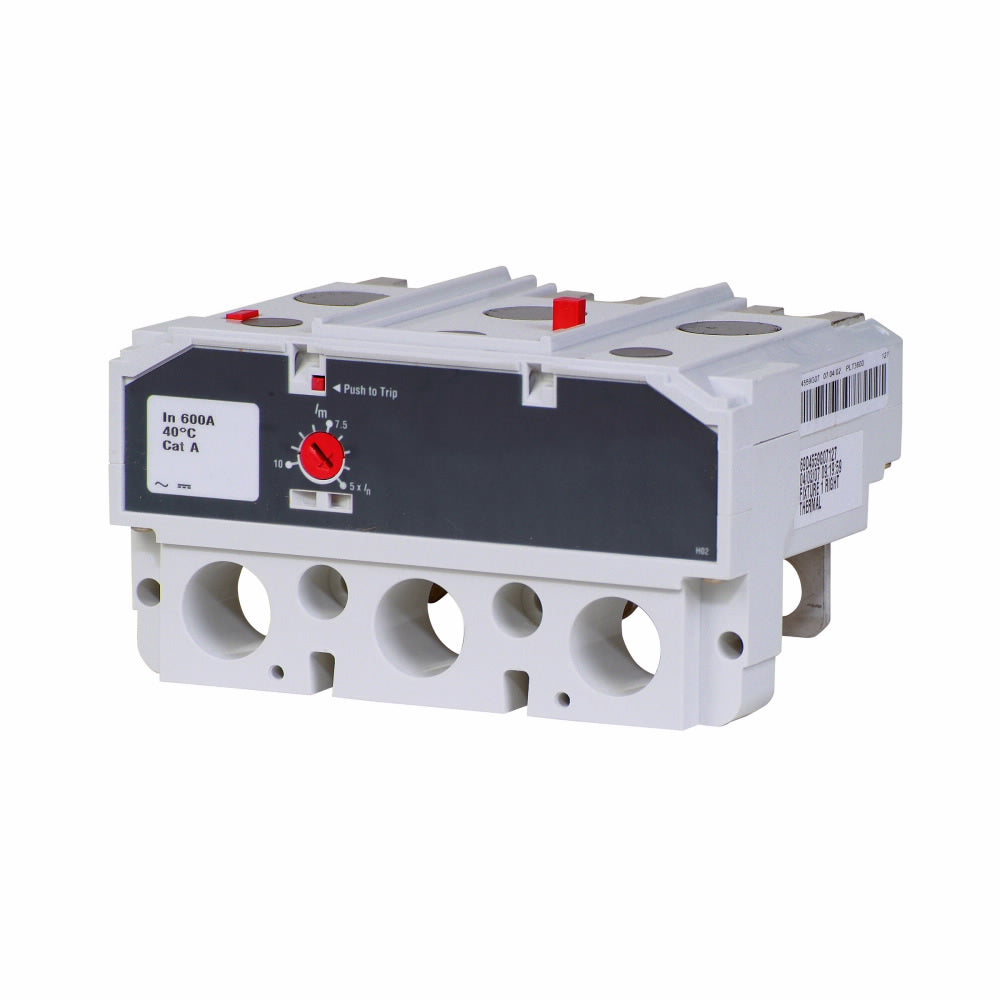

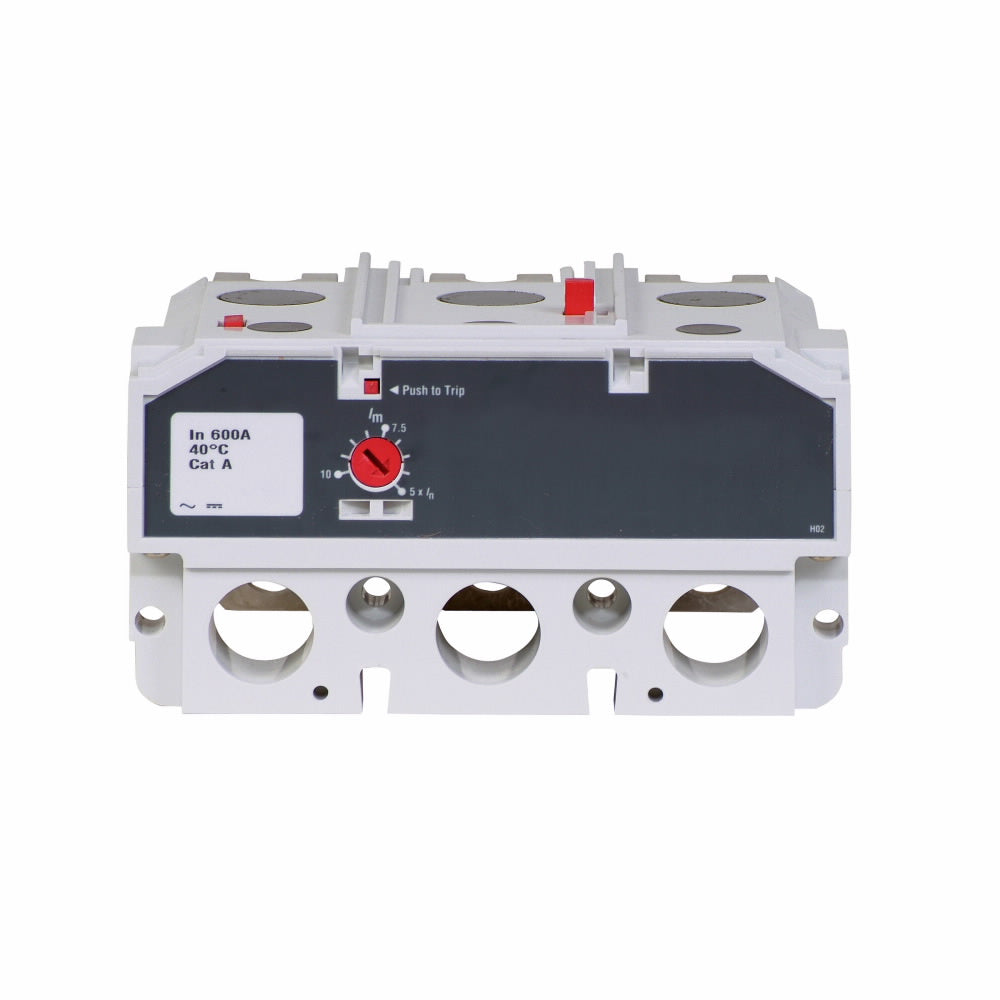

Eaton LT3600FA Trip Unit – 600A – 3-Pole / 3-Phase – Voltage Not Specified – Long-Time & Instantaneous (LI) – Trip Unit Only – Series G LT

The Eaton Cutler-Hammer LT3600FA is a 600A, 3-pole thermal-magnetic circuit breaker trip unit from the Eaton Series G Type LT. It is designed for use with compatible Eaton Series G molded case circuit breaker frames.

The LT3600FA features fixed thermal protection and adjustable magnetic protection, providing Long-Time and Instantaneous (LI) trip functions for overload and short-circuit protection.

This listing is for the trip unit only. The circuit breaker frame and terminals are not included unless specifically stated.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Circuit Breaker Trip Unit
• Product Family: Series G
• Series: Series G
• Type: LT
• Catalog No.: LT3600FA
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: Not specified
• Trip Type: Thermal-Magnetic
• Thermal Protection: Fixed
• Magnetic Protection: Adjustable
• Trip Functions: Long-Time and Instantaneous (LI)
• Frame Compatibility: Series G LG / Compatible J-K Frame Family
• Configuration: Trip Unit Only
• Circuit Breaker Frame: Not Included
• Terminals: Not Included
• Application: Overload and Short-Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LT3600FA
• Catalog Number: LT3600FA
• Model: LT3600FA
• Product Family: Eaton / Cutler-Hammer Series G Trip Units
• Series: Series G
• Type: LT
• Brand: Eaton
• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Circuit Breaker Trip Unit
• Configuration: 3-Pole, 600A
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC: 782116336258
• GTIN: 00782116336258
• Country of Origin: USA

Dimensions:

• Height: 4 in.
• Width: 4.5 in.
• Depth: 8.5 in.
• Weight: Approximately 2.03 lbs.

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series G molded case circuit breaker frames, including the specified Series G LG / compatible J-K frame family.

The LT3600FA provides 600A thermal-magnetic protection with fixed thermal and adjustable magnetic settings and Long-Time and Instantaneous (LI) trip functions.

Always verify the specific breaker frame, approved trip-unit combination, current rating, voltage requirements, trip characteristics, mounting arrangement, and manufacturer installation instructions before installation.
