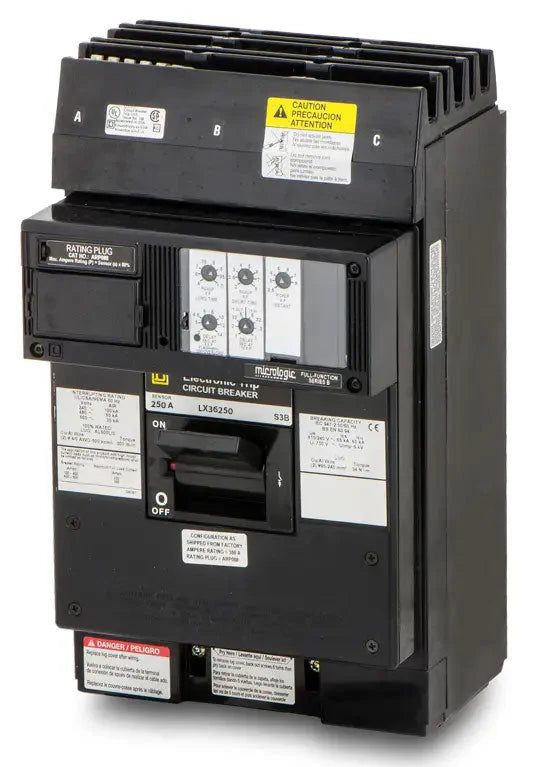

Square D LX36250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact LX Series

The Square D LX36250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type LX Series. It features solid-state electronic protection with a standard-function MicroLogic Series B non-interchangeable trip unit.

The LX36250 is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It features an I-Line style plug-in connection and provides Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact / MicroLogic
• Series: LX
• Type: LX
• Catalog No.: LX36250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: Standard Function MicroLogic Series B
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time, Short-Time and Instantaneous (LSI)
• Mounting / Connection: I-Line Style Plug-In
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LX36250
• Catalog Number: LX36250
• Model: LX36250
• Product Family: Square D PowerPact / MicroLogic Circuit Breakers
• Series: LX
• Type: LX
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Unit: Standard Function MicroLogic Series B
• Trip Configuration: Non-Interchangeable LSI
• UPC:785901162735

Compatibility:

Designed for use with compatible Square D PowerPact LX Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The LX36250 provides 250A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features a standard-function MicroLogic Series B non-interchangeable trip unit with Long-Time, Short-Time, and Instantaneous (LSI) protection. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, and mounting arrangement before installation.

Certifications:

• PowerPact LX Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Solid-State Electronic Protection
• Standard Function MicroLogic Series B
• Non-Interchangeable Trip
• Long-Time, Short-Time and Instantaneous (LSI) Trip Functions
• I-Line Style Plug-In
• Square D / Schneider Electric Product
