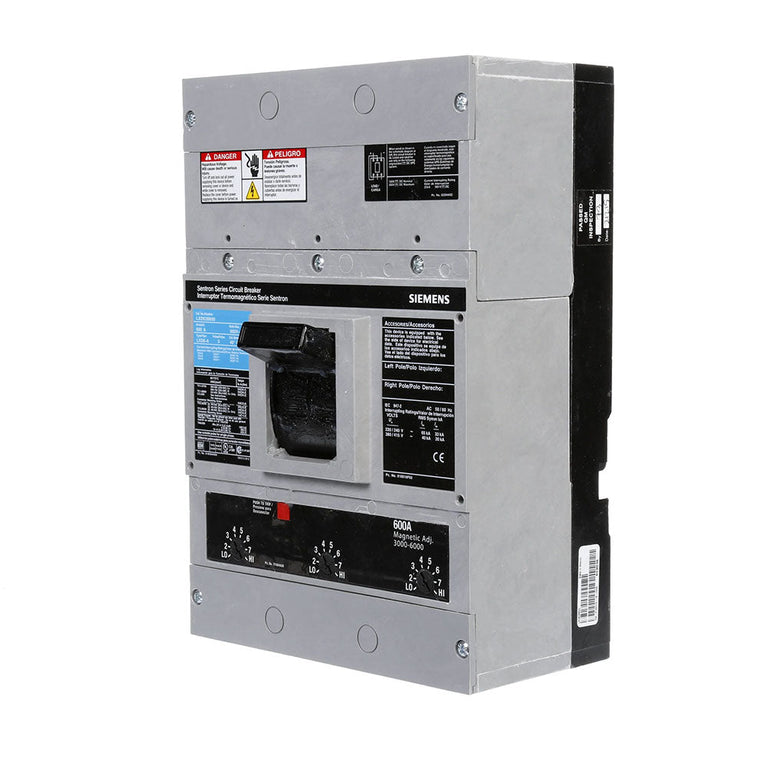

Siemens LXD63H600 Motor Circuit Protector – 600A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron LXD Series

The Siemens LXD63H600 is a 600A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Siemens Sentron Type LXD Series. It provides magnetic-only, instantaneous protection for compatible motor circuit applications.

The LXD63H600 is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It features a high instantaneous range, with a specified 3000–6000A magnetic range, and uses a bolt-on mounting configuration. Lugs are not included.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Motor Circuit Protector
• Product Name: Motor Circuit Protector (MCP)
• Product Family: Sentron
• Series: LXD
• Type: LXD
• Catalog No.: LXD63H600
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Only
• Instantaneous Range: High
• Magnetic Range: 3000–6000A
• Mounting Type: Bolt-On
• Lugs: Not Included
• Application: Motor Circuit Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LXD63H600
• Catalog Number: LXD63H600
• Model: LXD63H600
• Product Family: Siemens Sentron Circuit Breakers
• Series: LXD
• Type: LXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Motor Circuit Protector
• Breaker Configuration: 3-Pole, 600A
• Protection Configuration: Magnetic-Only, Instantaneous
• UPC:783643214323

Compatibility:

Designed for use with compatible Siemens Sentron LXD Series motor circuit protection applications that accept LXD Series bolt-on molded case motor circuit protectors. The LXD63H600 provides 600A, 3-pole magnetic-only protection for compatible 600V motor circuit applications.

The MCP features instantaneous-only protection, a 3000–6000A magnetic range, and a bolt-on mounting configuration. Lugs are not included. Always verify the specific motor application, panelboard or electrical equipment model, approved MCP type, system voltage, available fault current, magnetic trip requirements, pole configuration, lug selection, and installation requirements before installation.

Certifications:

• Siemens Sentron LXD Series
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Magnetic-Only Protection
• Instantaneous (I) Protection Only
• High Instantaneous Range
• 3000–6000A Magnetic Range
• Bolt-On Mounting
• Lugs Not Included
• Motor Circuit Protector (MCP)
