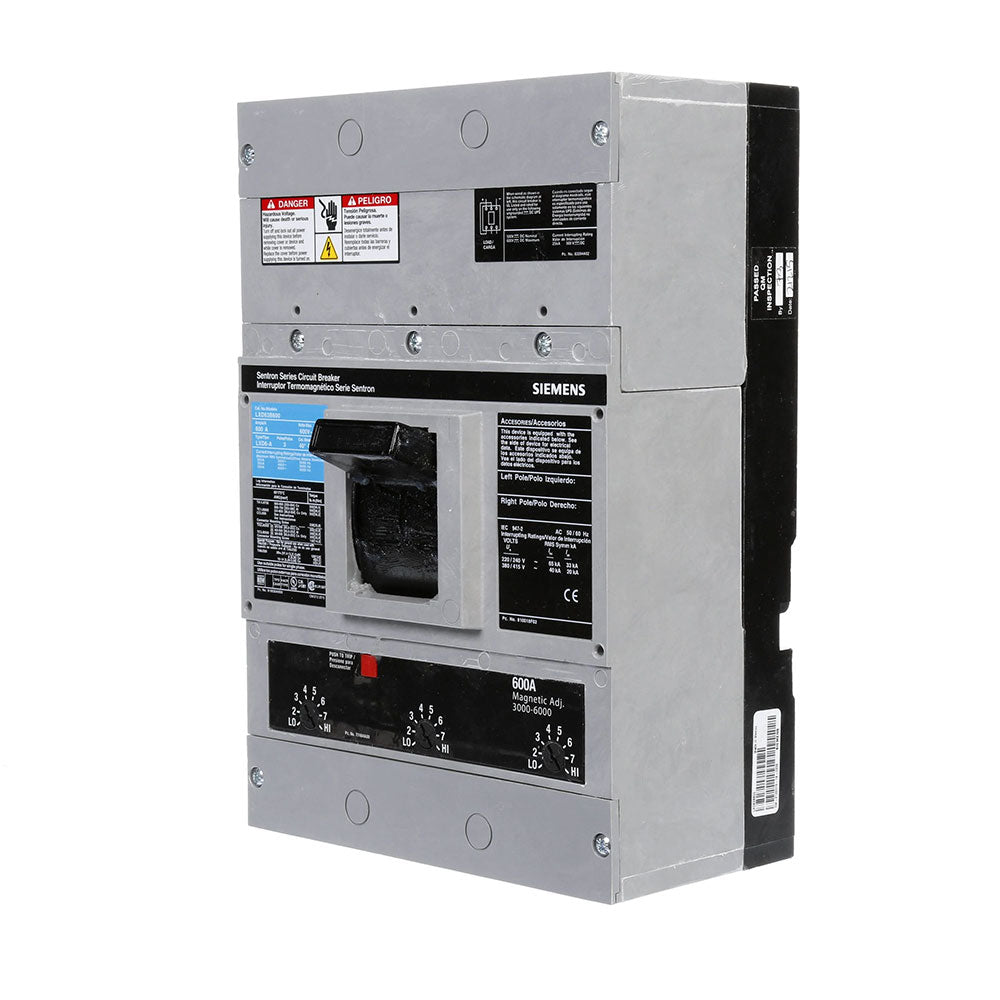

Siemens LXD63M600 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Thermal-Magnetic LI Trip – Bolt-On – Sentron LXD Series

The Siemens LXD63M600 is a 600 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Series, Type LXD. It is rated for 600 V and provides a 35 kA interrupting rating at 480 V, with standard interrupting capacity.

The breaker features a non-interchangeable thermal-magnetic trip unit with LI (Long-Time and Instantaneous) trip functions for overload and short-circuit protection. It is calibrated at 50°C and designed for bolt-on mounting.

The Siemens LXD63M600 is UL listed for reverse-fed applications, allowing reverse-feed installation in compatible electrical distribution equipment.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: Sentron
• Type: LXD
• Catalog Number / MPN: LXD63M600
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Calibration Temperature: 50°C
• Connection / Mounting: Bolt-On
• Reverse-Feed Suitability: UL Listed for Reverse-Fed Applications
• Protection: Overload and Short-Circuit

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: LXD63M600
• Series: Sentron
• Type: LXD
• Current Rating: 600 A
• Pole Count: 3 Pole
• Phase Configuration: 3 Phase
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Interrupting Capacity Classification: Standard
• Mounting Type: Bolt-On
• Calibration: 50°C
• UPC:783643231887

Compatibility

The Siemens LXD63M600 is intended for compatible Siemens Sentron Series electrical distribution equipment supporting Type LXD, 600 Amp, 3-pole bolt-on molded case circuit breakers. It is also suitable for reverse-fed applications as specified by its UL listing.

Certifications

• UL Listed
