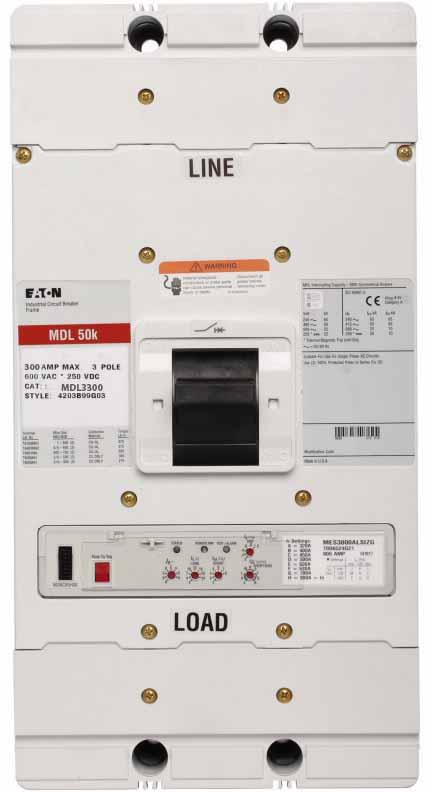

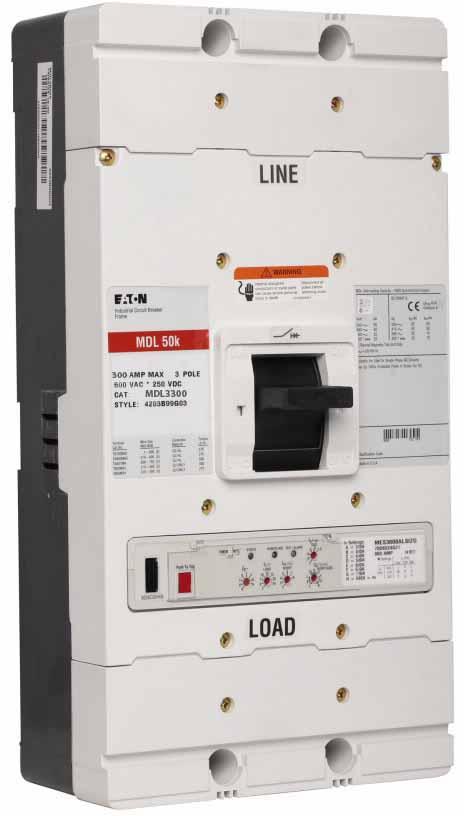

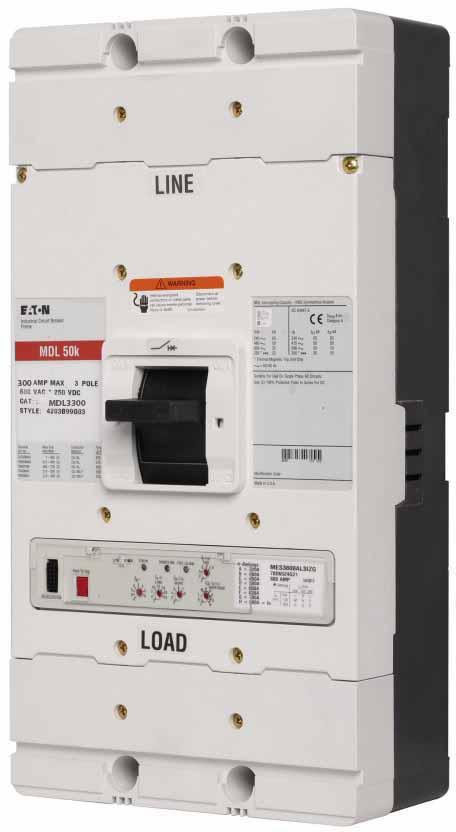

Eaton Cutler-Hammer MDL3300X 300 Amp Molded Case Circuit Breaker – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer MDL3300X is a Series C, Type MDL molded case circuit breaker rated at 300 A. It features a three-pole configuration with fixed thermal and fixed magnetic trip protection. The breaker is rated for 600 Vac and 250 Vdc, with an interrupting capacity of 65 kA at 240 Vac and 50 kA at 480 Vac.

Specifications

• Brand: Eaton / Cutler-Hammer
• MPN: MDL3300X
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series C
• Frame / Type: MDL
• Rated Current: 300 A
• Number of Poles: 3
• Phases: Not specified
• Rated Voltage: 600 Vac
• DC Voltage Rating: 250 Vdc
• Interrupting Capacity at 240 Vac: 65 kA
• Interrupting Capacity at 480 Vac: 50 kA
• Interrupting Capacity Class: Standard interrupting capacity
• Trip Type: Fixed thermal, fixed magnetic
• Frequency: 50/60 Hz

Part Numbers & Identification

• Manufacturer: Eaton
• Catalog Number: MDL3300X
• Product Family: Series C
• Circuit Breaker Frame: MDL
• Identification: Three-pole, 300 A molded case circuit breaker
• UPC:782114585931

Compatibility

Suitable for Eaton Series C Type MDL applications requiring a 300 A, three-pole molded case circuit breaker with fixed thermal and fixed magnetic trip protection.
