Eaton MDL3600 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 50 kA@480 V – Feed-Thru – Series C

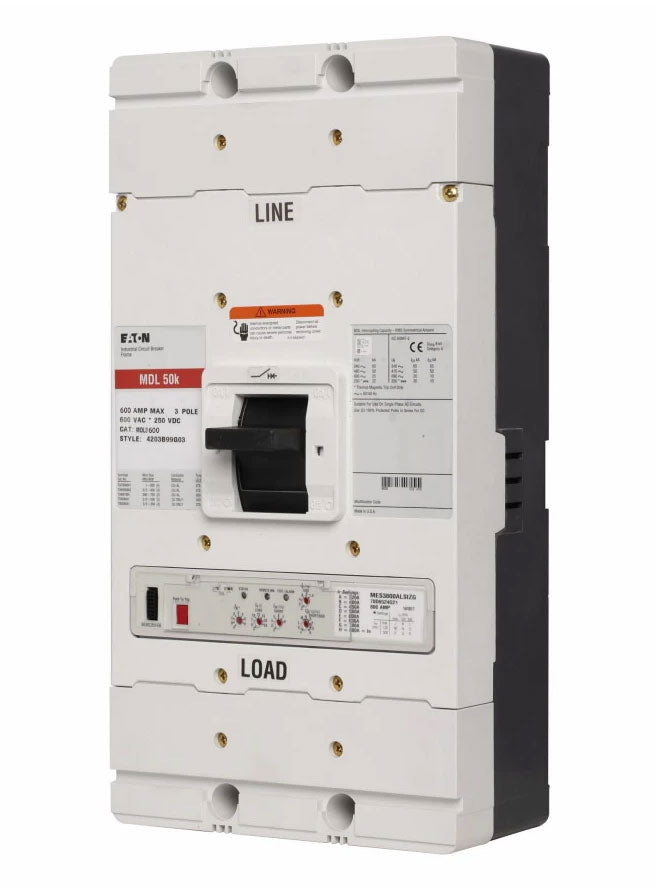

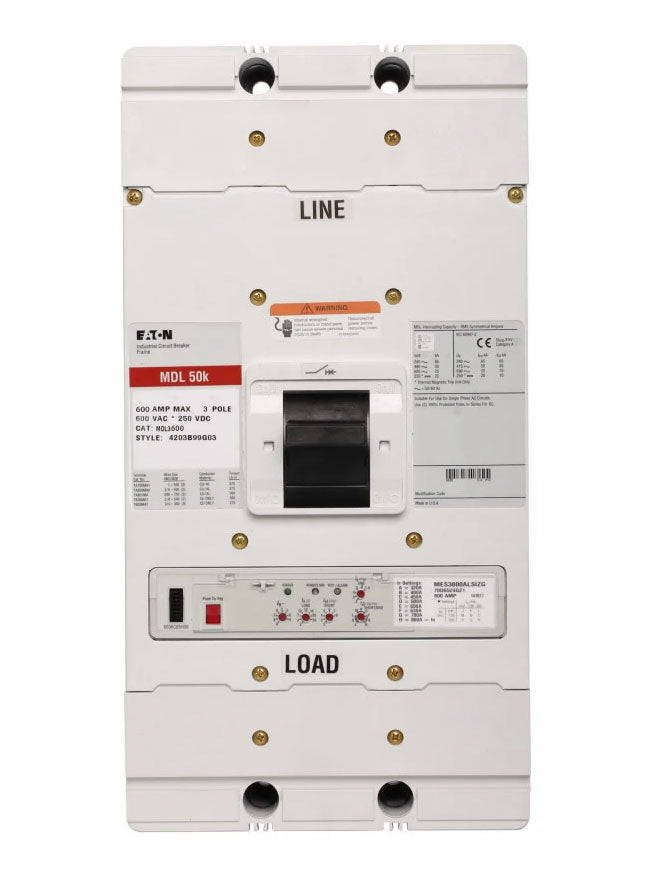

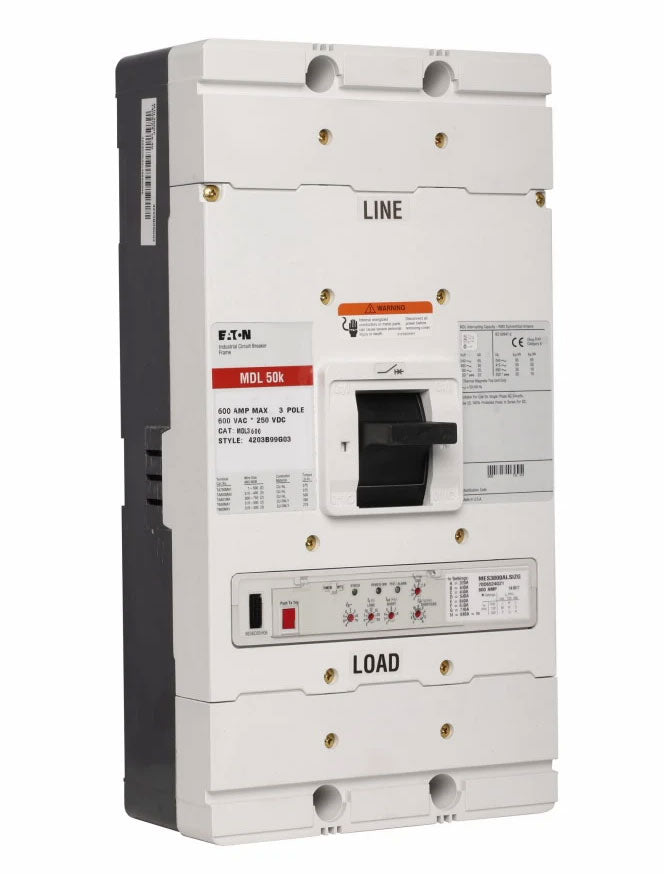

The Eaton MDL3600 is a 600 Amp, 3-pole molded case circuit breaker from the Eaton/Cutler-Hammer Series C, Type MDL. It is rated for 600 V with interrupting ratings of 65 kA at 240 V and 50 kA at 480 V. The breaker has standard interrupting capacity and is designed for 40°C applications. It features thermal-magnetic protection with an interchangeable LI (Long-Time and Instantaneous) trip unit, feed-thru mounting, and line and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: MDL
• Catalog Number / MPN: MDL3600
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 240 V; 50 kA @ 480 V
• Interrupting Capacity: Standard
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: MDL3600
• Series: Series C
• Type: MDL
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Terminals: Line & Load-Side Lug Terminals
• UPC:782114585986

Compatibility

The Eaton MDL3600 is designed for compatible Eaton/Cutler-Hammer Series C Type MDL electrical distribution applications with feed-thru mounting. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.
