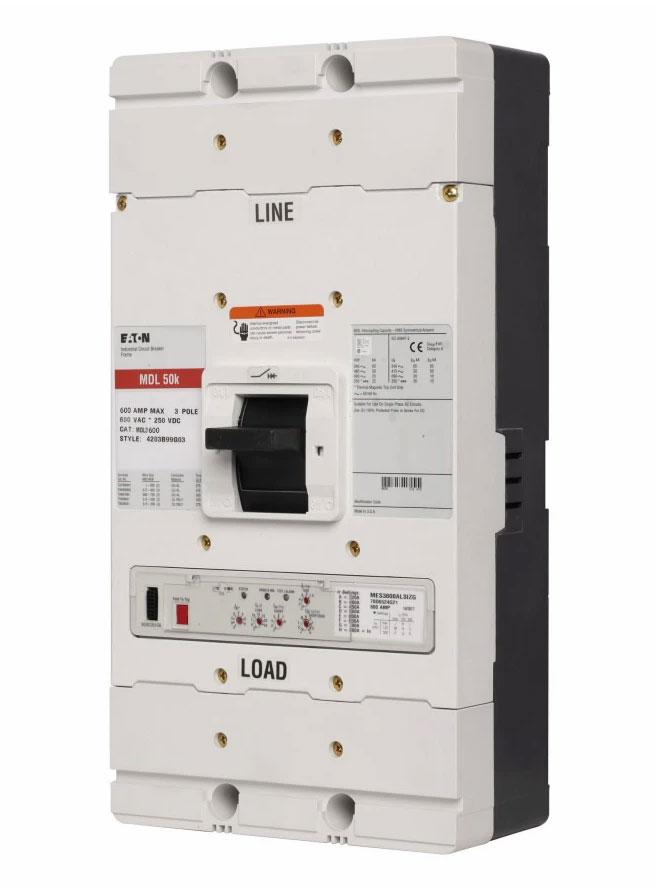

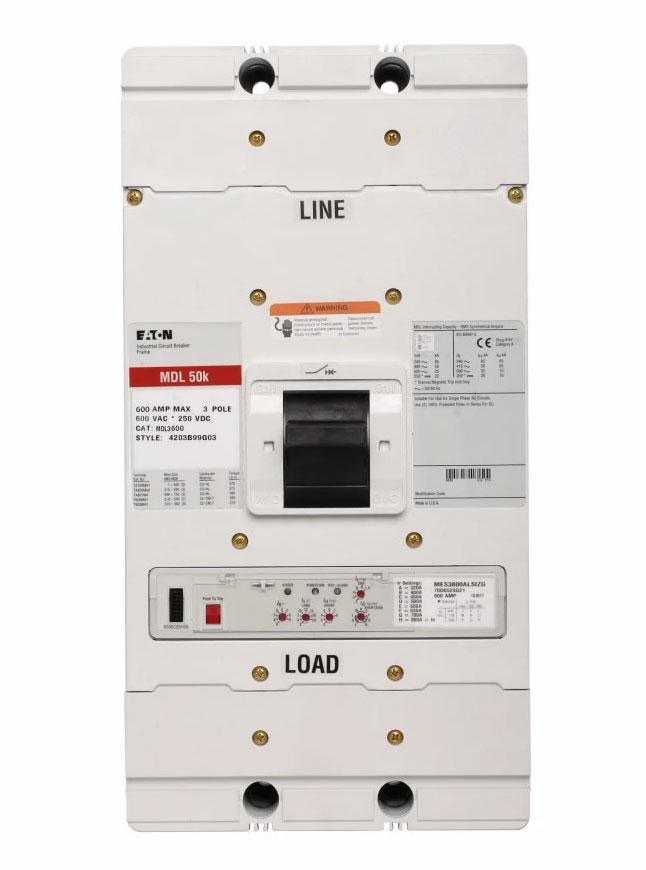

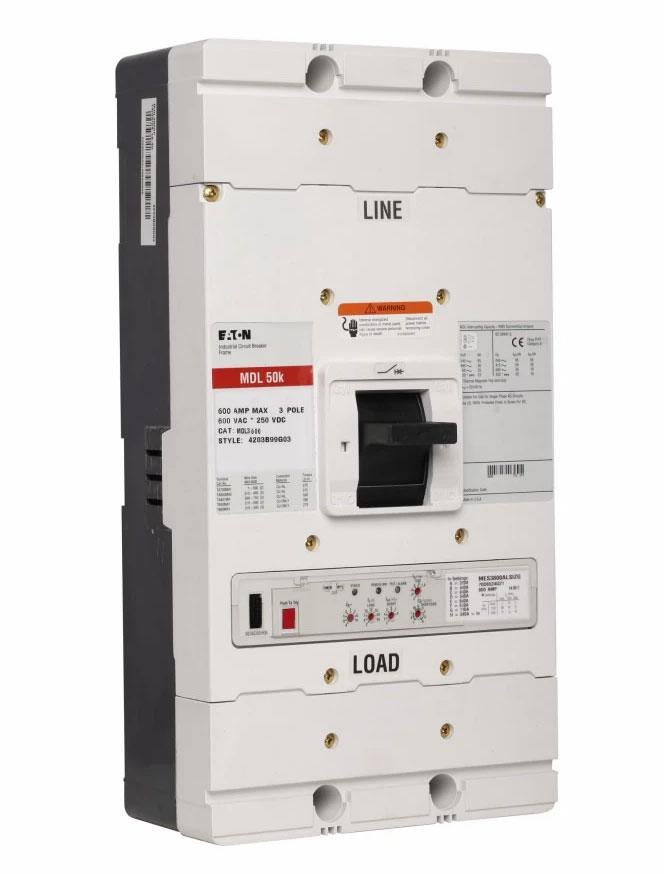

Eaton Cutler-Hammer MDL3600X 600 Amp Molded Case Circuit Breaker – 3 Pole – 600V – Series C

The Eaton Cutler-Hammer MDL3600X is a Series C, Type MDL thermal-magnetic molded case circuit breaker rated at 600 A. It features a three-pole configuration with interchangeable long-time and instantaneous (LI) trip functions. The breaker has feed-through connections and line- and load-side lug terminals, with a standard interrupting capacity of 65 kA at 240 V and 50 kA at 480 V at a reference ambient temperature of 40°C.

Specifications

• Brand: Eaton / Cutler-Hammer
• MPN: MDL3600X
• Product Type: Molded Case Circuit Breaker (MCCB)
• Series: Series C
• Type: MDL
• Rated Current: 600 A
• Number of Poles: 3
• Phases: 3-phase
• Rated Voltage: 600 V
• Interrupting Capacity at 240 V: 65 kA
• Interrupting Capacity at 480 V: 50 kA
• Interrupting Rating: Standard
• Trip Type: Thermal-magnetic
• Trip Functions: Interchangeable LI (Long-Time and Instantaneous)
• Connection Type: Feed-through
• Terminals: Line- and load-side lug terminals
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: Eaton
• Brand Family: Cutler-Hammer
• Catalog Number: MDL3600X
• Series Designation: Series C
• Type Designation: MDL
• Current Rating: 600 A
• Pole Configuration: Three-pole
• UPC:782114585986

Compatibility

Suitable for Eaton Series C Type MDL applications requiring a 600 A, three-pole molded case circuit breaker with interchangeable LI trip functions and feed-through connections.
