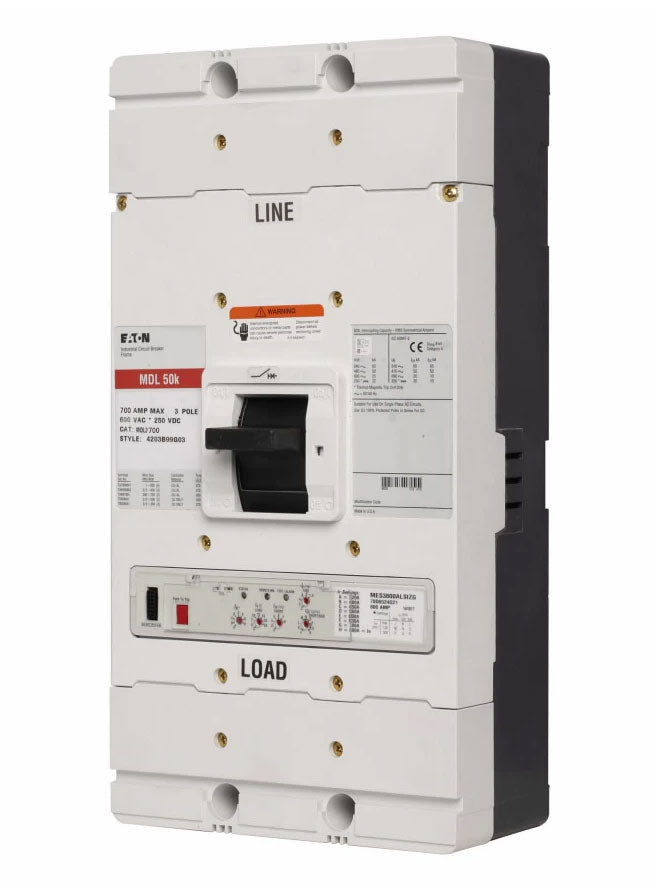

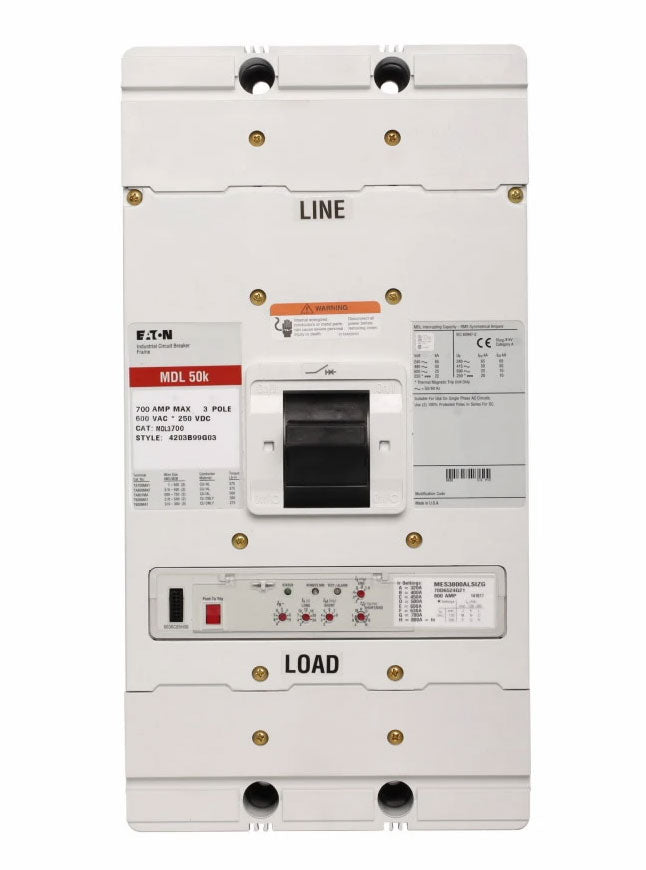

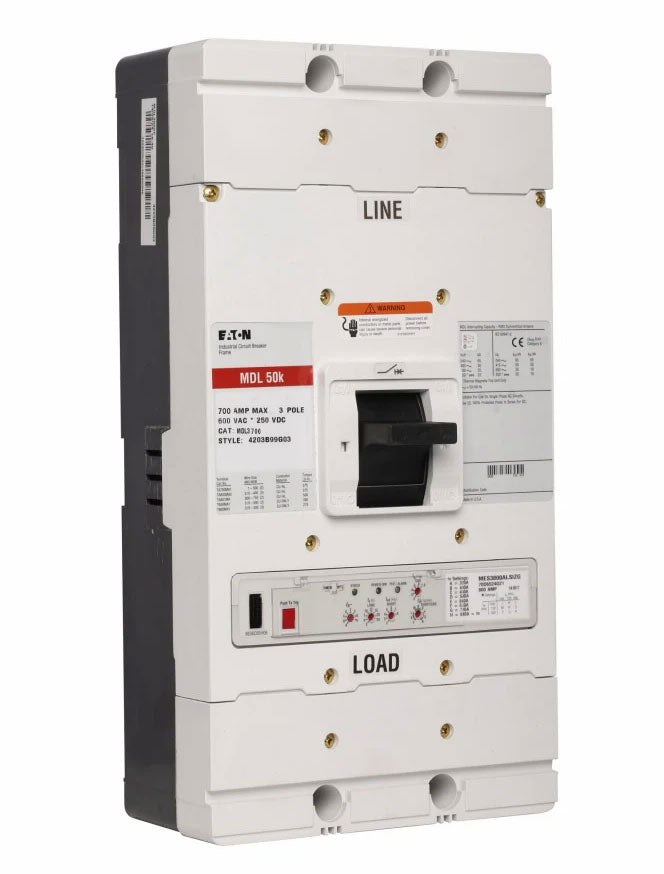

Eaton MDL3700 Molded Case Circuit Breaker – 700A – 3-Pole / 3-Phase – 600V – 65kA @ 240V / 50kA @ 480V – Feed-Thru – Series C MDL

The Eaton MDL3700 is a 700A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type MDL. It features thermal-magnetic protection with an interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The MDL3700 is rated for 600V and provides interrupting ratings of 65kA at 240V AC and 50kA at 480V AC, with standard interrupting capacity. It is rated for operation at 40°C, uses a feed-thru configuration, and includes line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: MDL
• Catalog No.: MDL3700
• Current Rating: 700A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 240V AC; 50kA @ 480V AC
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): MDL3700
• Catalog Number: MDL3700
• Model: MDL3700
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: MDL
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 700A
• Trip Configuration: Interchangeable LI
• UPC:782114585993

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type MDL electrical distribution equipment that accepts MDL Series molded case circuit breakers. The MDL3700 provides 700A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features an interchangeable LI trip, feed-thru configuration, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit compatibility, terminal arrangement, temperature requirements, and installation requirements before installation.

Certifications:

• Series C MDL
• 700A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 240V AC Interrupting Rating
• 50kA @ 480V AC Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
